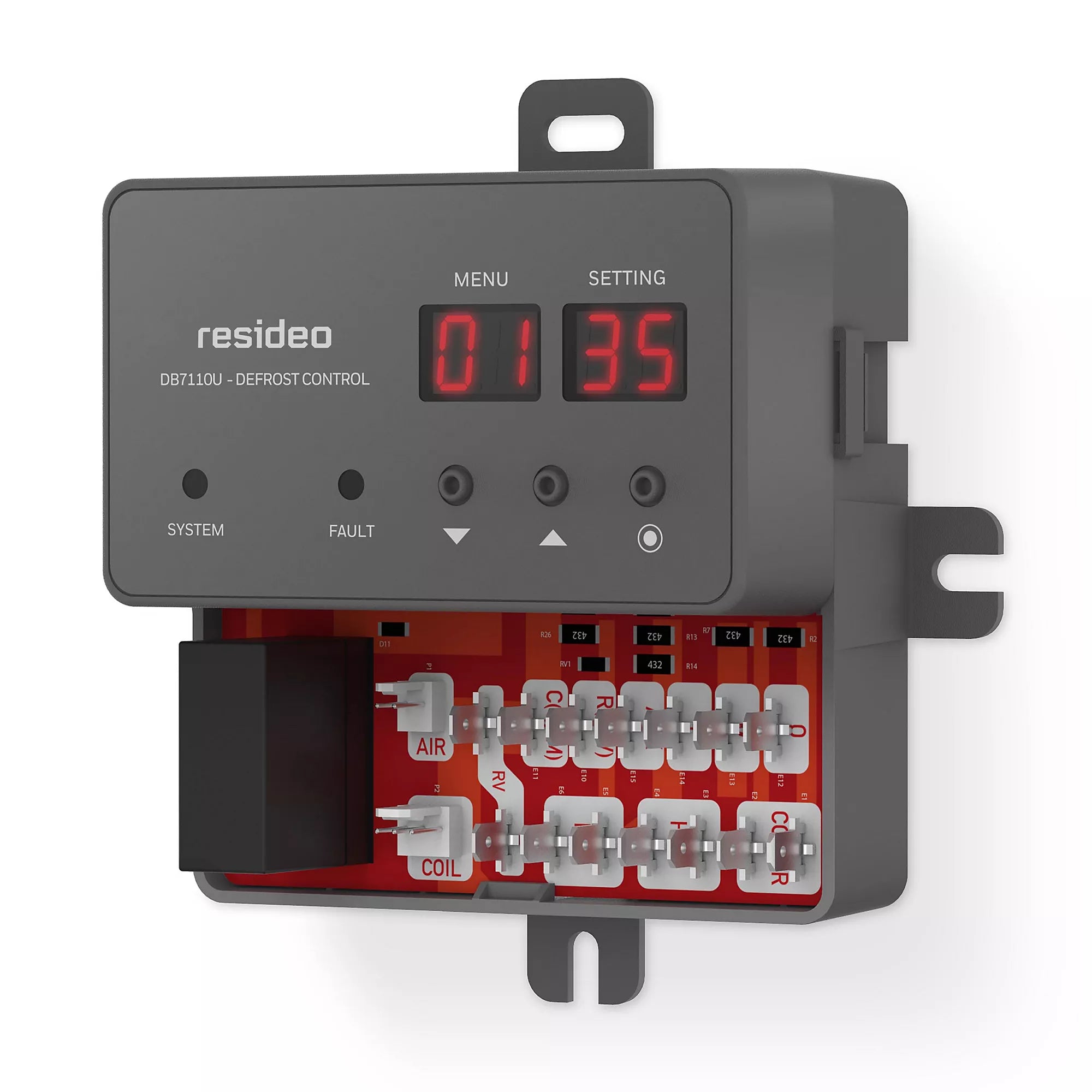

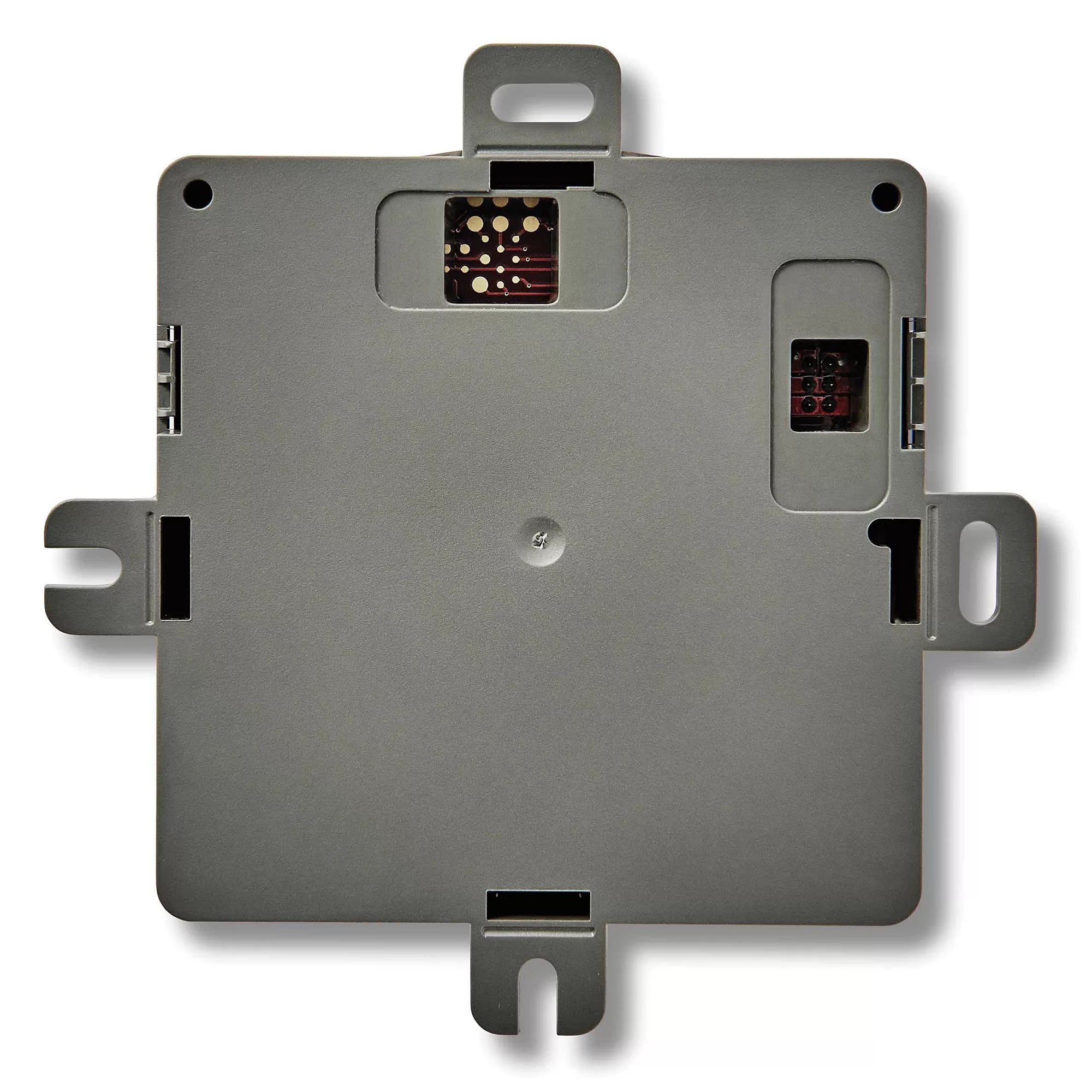

Resideo DB7110U1000/U Universal Heat Pump Defrost Control Board for Single Stage On/Off

Product Description

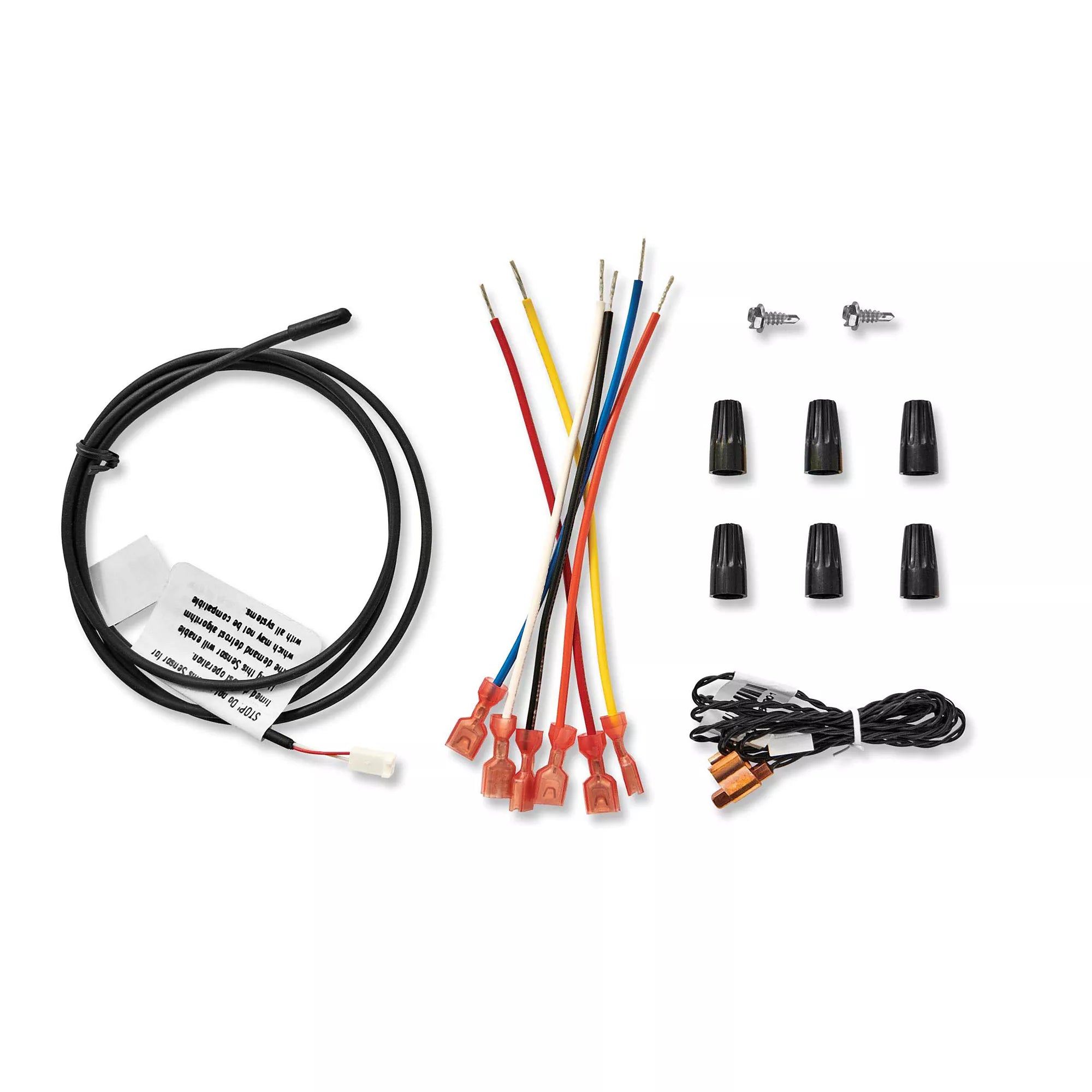

The RESIDEO DB7110U1000/U universal defrost control is for single stage on/off heat pumps. It controls outdoor equipment like compressor contactors, reversing valves, and outdoor fans based on thermostat requests, air, and coil temperatures. It also manages the indoor auxiliary heat source during defrost and as a second stage of heat. Defrost cycles are triggered by outdoor air and coil temperatures via included sensors.

• Compact design allows for easier installation.

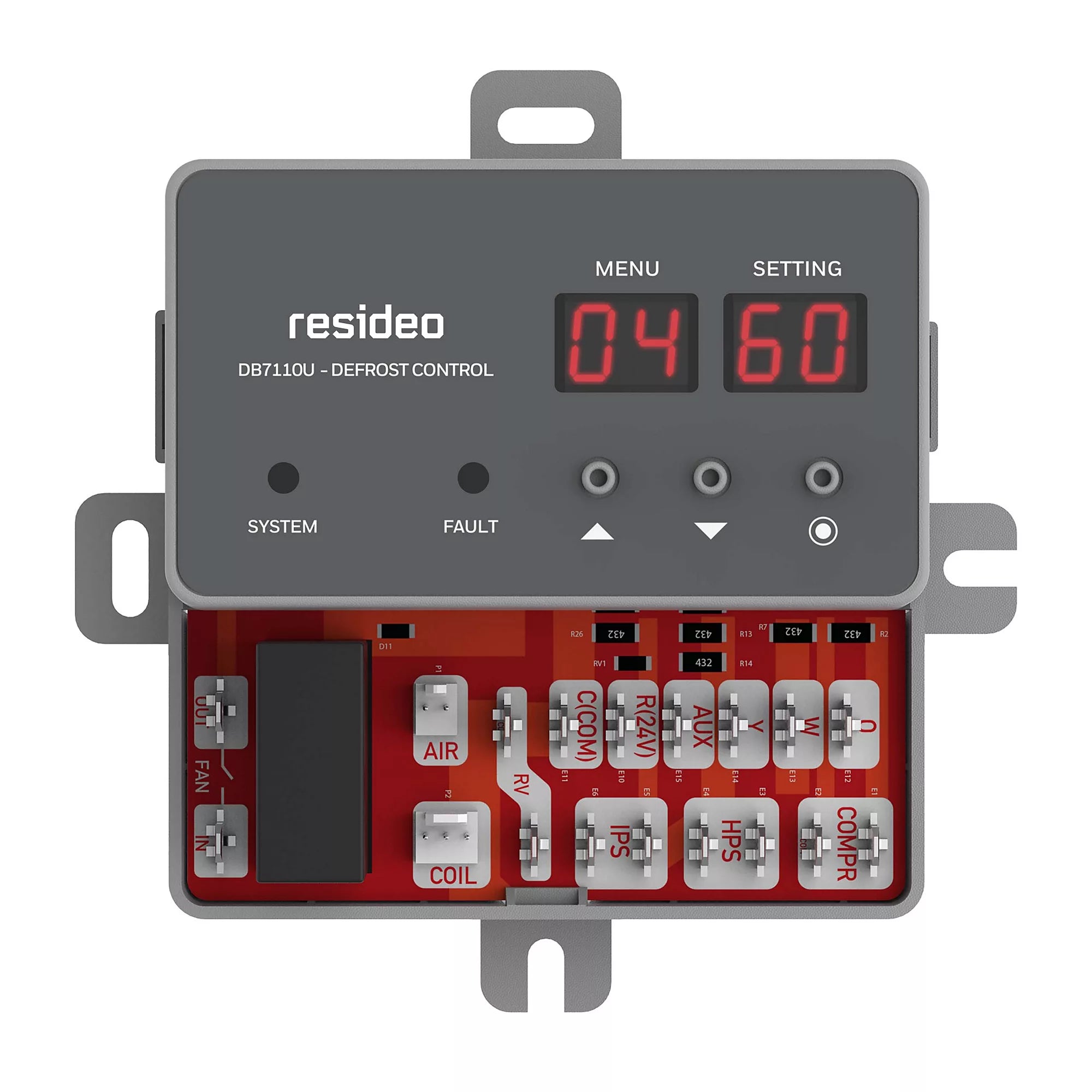

• Easy setup with a dual LED display simplifying configuration.
• Quiet mode for operation.

Product Highlights

Universal defrost control reduces inventory. Replaces over 260 OEM and competitive models. Demand defrost algorithm only defrosts when necessary, saving energy.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DB7110U1000/U
• Country of Origin: MEX

Technical Specifications

• Brand: Resideo
• Cycle/Hertz: 60 Hz
• Height: 3.5
• Length: 7
• Phase: Single
• Prop 65: No
• Stage: Single
• UPC: 085267900928
• Voltage: 24 VAC
• Width: 5.25
• Country of Origin: MEX
• Item Number: DB7110U1000/U
• Ambient Operating Temperature (Min): -40 °F
• Ambient Operating Temperature (Max): 150 °F
• Amperage Rating: 200 mA
• Display Type: LED
• Frequency Rating: 60 Hz
• Temperature Rating: 40 to 150 deg F
• Product Type: Defrost Board Universal
