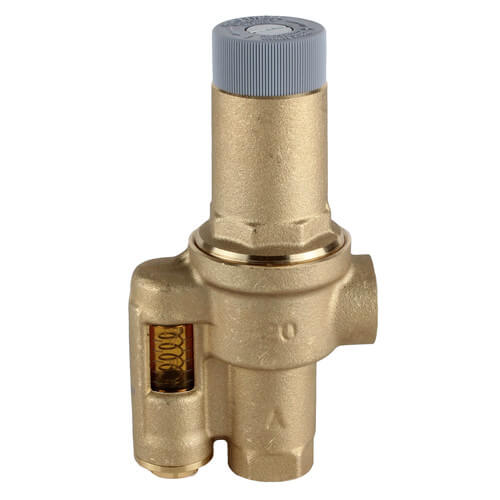

Resideo D146M1032 3/4 Inch Differential Pressure Regulator

Product Description

The Resideo D146M1032 Differential Pressure Regulator is essential for maintaining optimal operation in hydronic heating systems. It is designed to prevent excessive pump head pressure when demand in the system decreases.

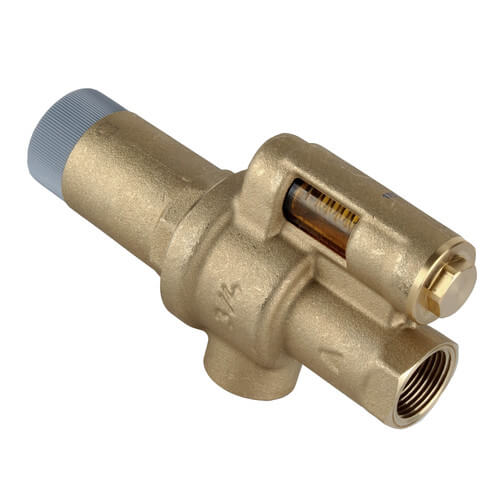

• Features a built-in differential pressure indicator.
• Streamlines system performance by stabilizing the pressure differential.
• Brass valve construction ensures durability and reliability.

Product Highlights

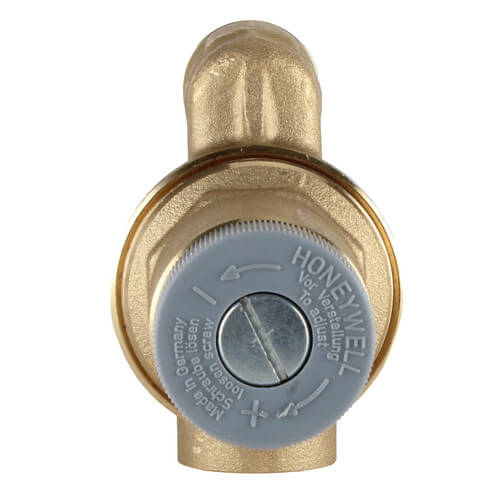

Install the Resideo D146M1032 between the supply and return sides to control the pressure differences effectively. With no electrical hookup required and a simple pressure adjustment mechanism, this regulator offers both ease of use and a seamless installation process.

Product Information

Standard Information

• Material: Brass, Stainless Steel, Engineered Thermoplastics
• Connection Type: Threaded (FNPT)

Technical Specifications

• Pressure Adjustment Range: 0 to 17 PSI
• Maximum Inlet Pressure: 85 PSI
• Temperature Range: Up to 230°F
• Dimensions: 6.25 inches high x 3.38 inches wide
• Flow Rate: Up to 18 gallons per minute
• Capacity: 120,000 Btu/hr
