Resideo D04FMA-1/2 valve insert complete for size 1/2 in for NK300S-100, NK300S-100UP

Product Description

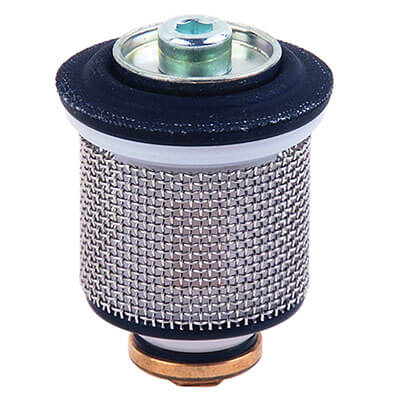

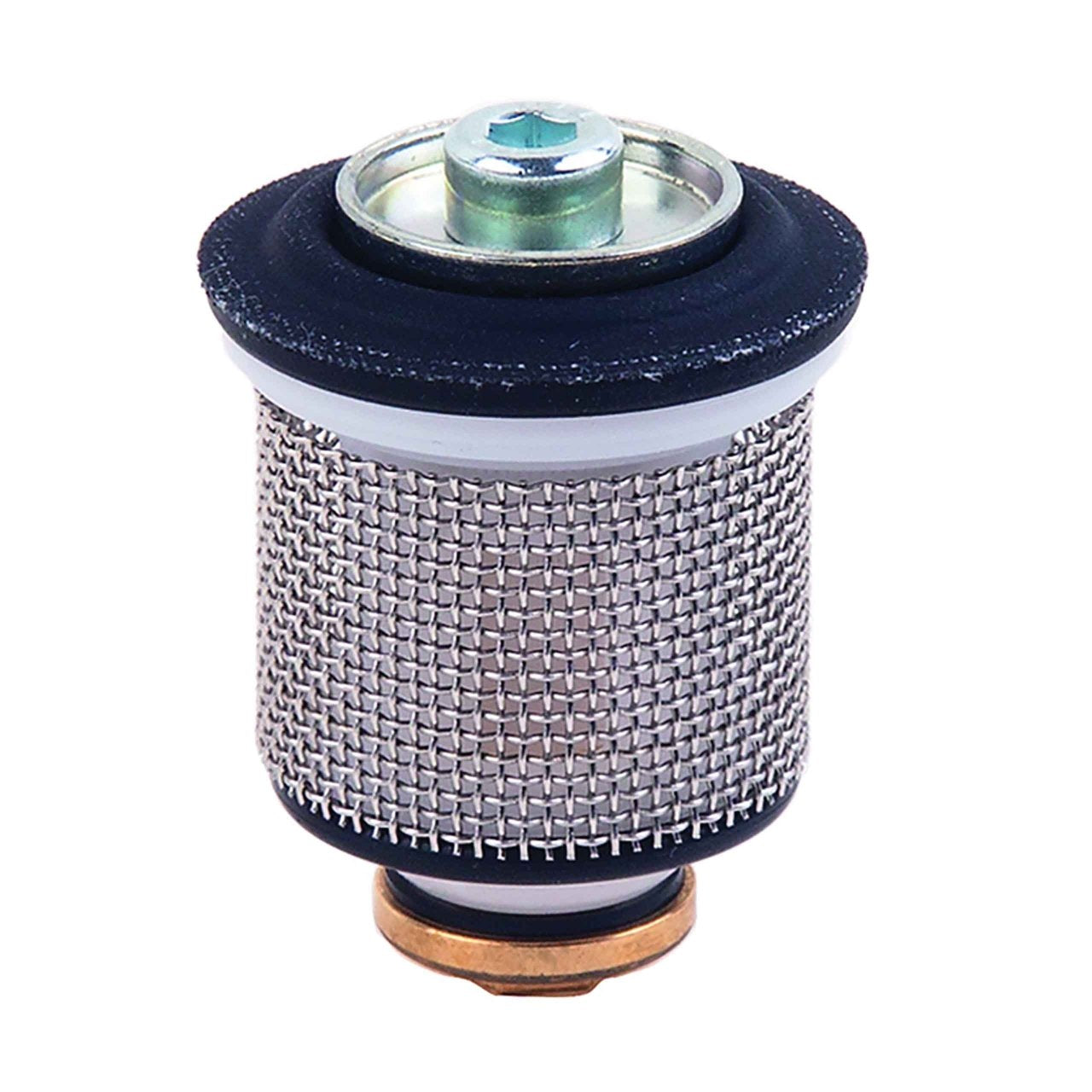

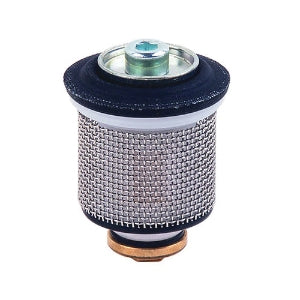

The RESIDEO D04FMA-1/2 is a complete cartridge valve insert designed for optimal protection of potable water supply systems. It functions as a pressure reducing valve with inlet pressure balancing, ensuring that inlet pressure fluctuations do not affect the outlet pressure. This valve insert is suitable for NK300S boiler feed combinations and D04FM pressure reducing valves, designed for a 1/2 inch pipe size. The outlet pressure is adjustable and directly visible on the pressure gauge.

• Optimal protection of potable water supply systems.
• Pressure reducing valve with inlet pressure balancing.
• Outlet pressure is adjustable and directly visible on the pressure gauge.

Product Highlights

Features replaceable cartridge and valve inserts for low maintenance.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: D04FMA-1/2

Technical Specifications

• Application: Valve Cartridge
• For Use With: NK300S-100, NK300S-100UP, D04FM Pressure Reducing Valve with Balanced Seat
• Item Type: Replacement Part
• Pipe Size: 1/2 in.
• Controlled Fluid: Water
• Valve Type: Cartridge Valve
