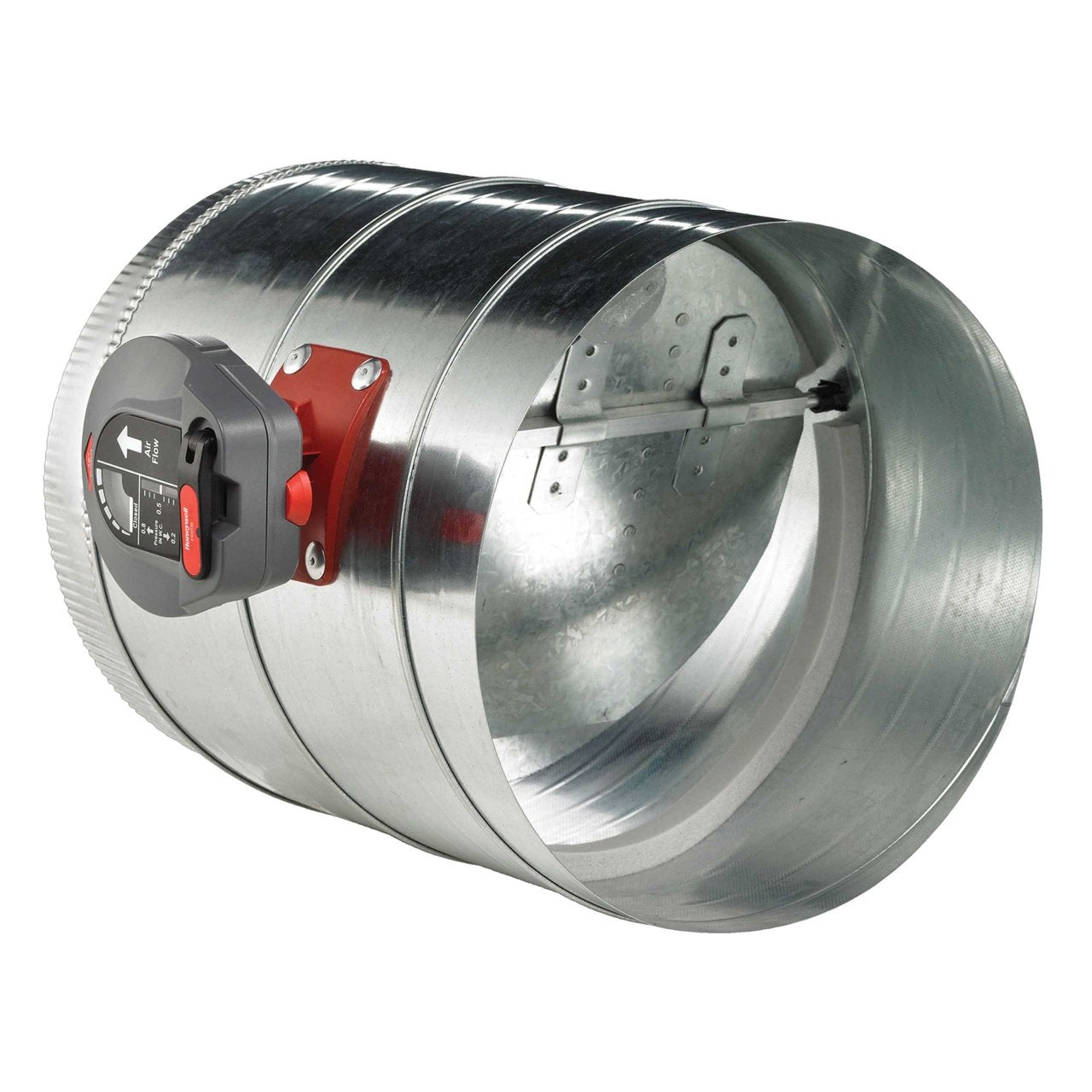

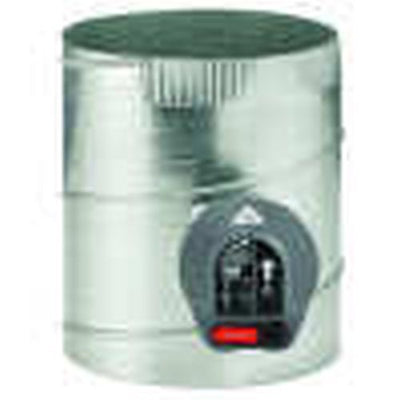

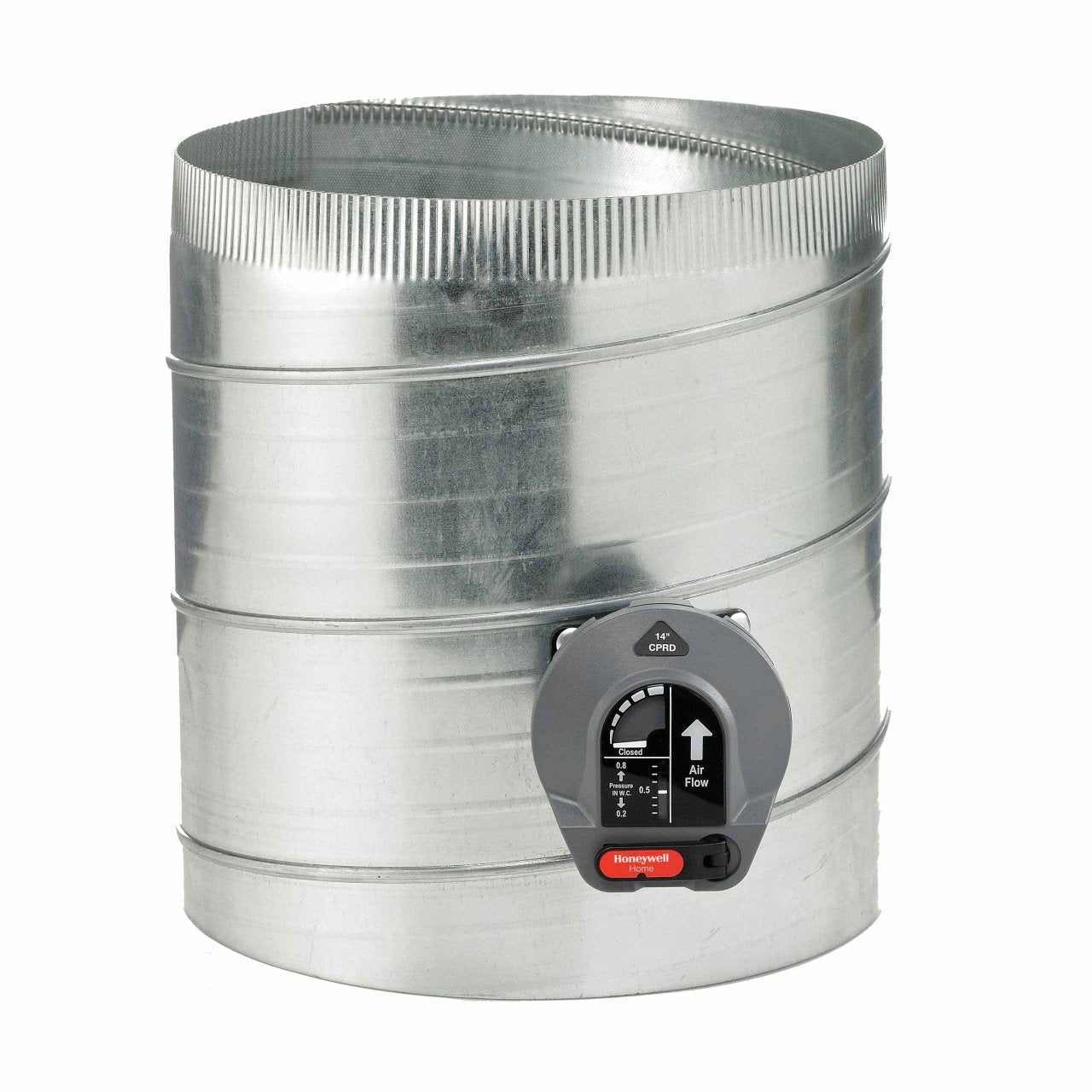

Resideo CPRD14 Constant Reg Bypass Damper 14 inches Round

Product Description

The Resideo CPRD14 constant Reg Bypass Damper effectively maintains airflow balance in HVAC systems. With its 14-inch round design, this damper ensures proper airflow distribution and pressure regulation. The damper features a sturdy construction, ensuring reliable operation. Its compact size allows for easy installation in various ductwork configurations.

• 14-inch round size
• Maintains airflow balance
• Regulates pressure in HVAC systems

Product Highlights

Ideal for commercial and industrial HVAC systems, suitable for use in air handling units and ductwork.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: CPRD14

Technical Specifications

• Item Number: CPRD14
• Brand: Resideo
• Product Item: CPRD14
• Manufacturer: Resideo
• Damper Duct Shape Type: Round
• Damper Type: Bypass
• Application: Constant Pressure Regulating (Bypass) Damper
• Damper Material: Galvanized Steel
• Warranty: 5 Years
• Product Height: 14 in
• Product Length: 14.96 in
• Product Width: 17.36 in
• Activation: Mechanical
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: Not Applicable
• Actuator Torque: Not Applicable
• Blade Material: Galvanized Steel
• Position Indicator Included: Yes
• Position Indicator Type: Pressure Setting Indicator, Damper Position Indicator
• Range Stop: No
• Series: CPRD
• Size: 14
• Shape: Round
• Finish: Galvanized
• Rotation Angle: 90
• Motor Type: Calibrated Spring Tension Regulator
• Temperature Rating: 0 to 165 deg F
• Material: Steel
