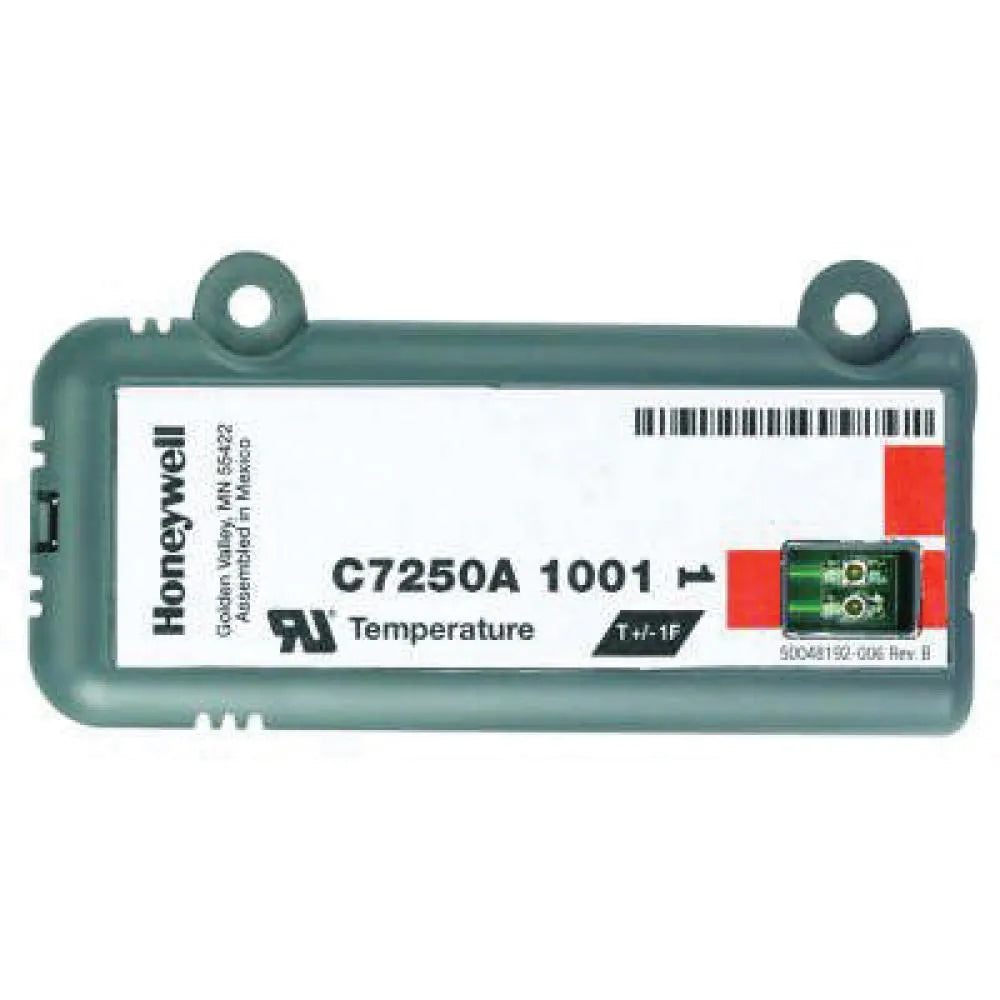

Resideo C7250A1001 Temperature Sensor 20K (2.17 x 0.81 x 4.25 in)

Product Description

The Resideo C7250A1001 is a mixed-air temperature sensor with a 20 kilo-ohm NTC element designed for rooftop packaged air conditioning equipment and economizer controllers. It mounts in duct and measures 2.17 x 0.81 x 4.25 in, with operating and storage range -40 to 150 °F and a humidity rating of 11 to 89% RH. The sensor output is 20 kilo-ohm NTC at 77 °F and it connects via a 2-pin header or 2-pin card-edge removable terminal with (2) 18–22 AWG wiring; approvals include UL (Canada and US) and CE.

• 20 kilo-ohm NTC sensing element (20 kΩ at 77 °F)
• Duct-mounted housing; dimensions 2.17 x 0.81 x 4.25 in; operating/storage -40 to 150 °F; 11–89% RH
• 2-pin header or 2-pin card-edge removable terminal connection; wire size (2) 18–22 AWG; UL Canada/US and CE approvals

Product Highlights

Mixed-air 20k NTC duct temperature sensor for HVAC and economizer controllers

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: C7250A1001
• Country of Origin: United States

Technical Specifications

• Manufacturer: Resideo
• Manufacturer Part Number: C7250A1001
• Product Name: Temperature Sensor (Mixed Air)
• Series/Model: C7250
• Sensor Output Rating: 20 kilo-ohm NTC at 77 °F
• Mounting Type: Duct
• Dimensions: 2.17 x 0.81 x 4.25 in (L x W x H) - expressed in inches
• Weight: 0.58 lb
• Operating Temperature: -40 to 150 °F
• Storage Temperature: -40 to 150 °F
• Humidity Rating: 11 to 89% RH
• Wire Size: (2) 18 to 22 AWG
• Connection Type: 2-pin header (pin style) or 2-pin card-edge removable terminal
• Approvals/Certifications: UL (Canada and US), CE
• Application: Air conditioning; commercial economizer; industrial water heater and HVAC temperature sensing
• UNSPSC Code: 41111970
• Country of Origin: United States
