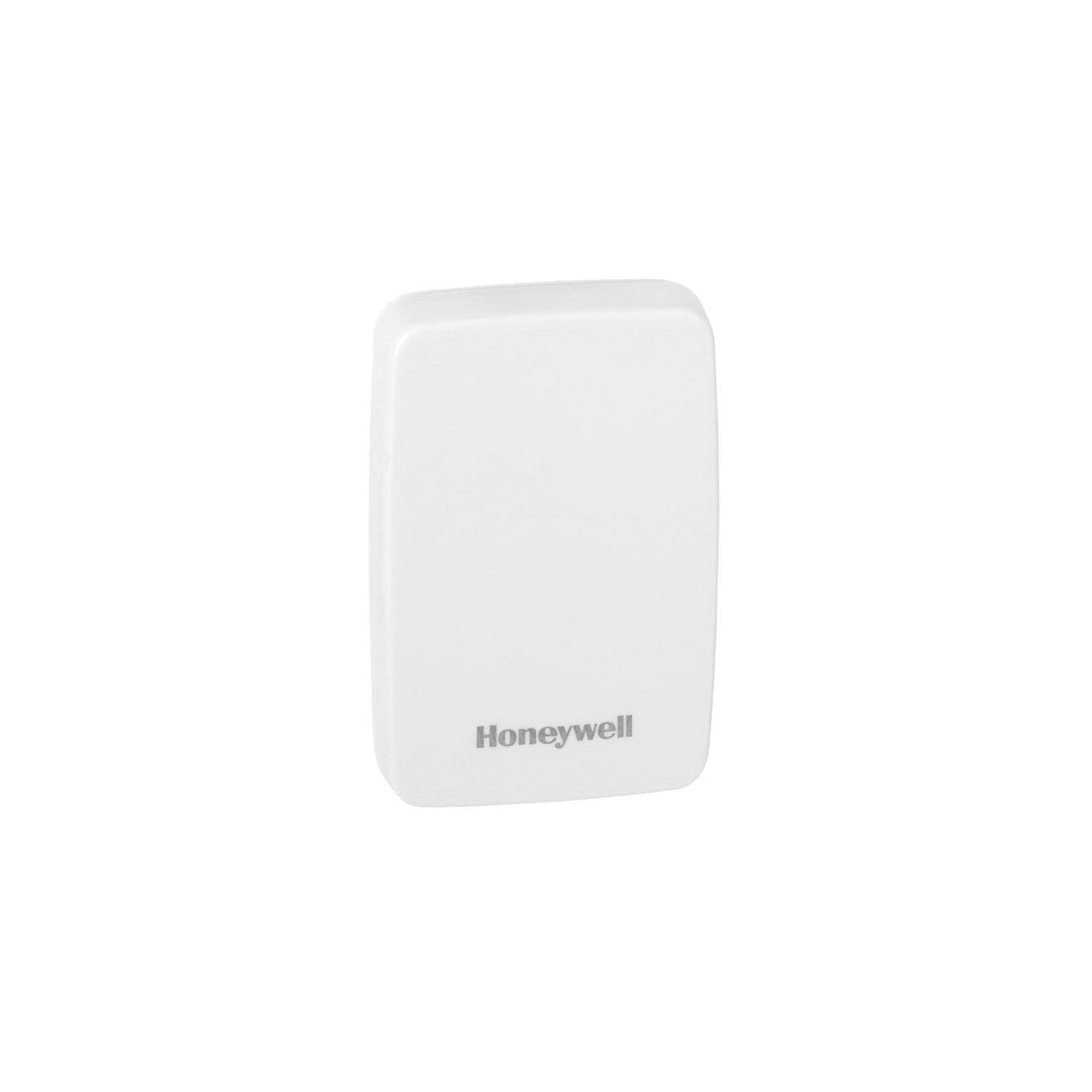

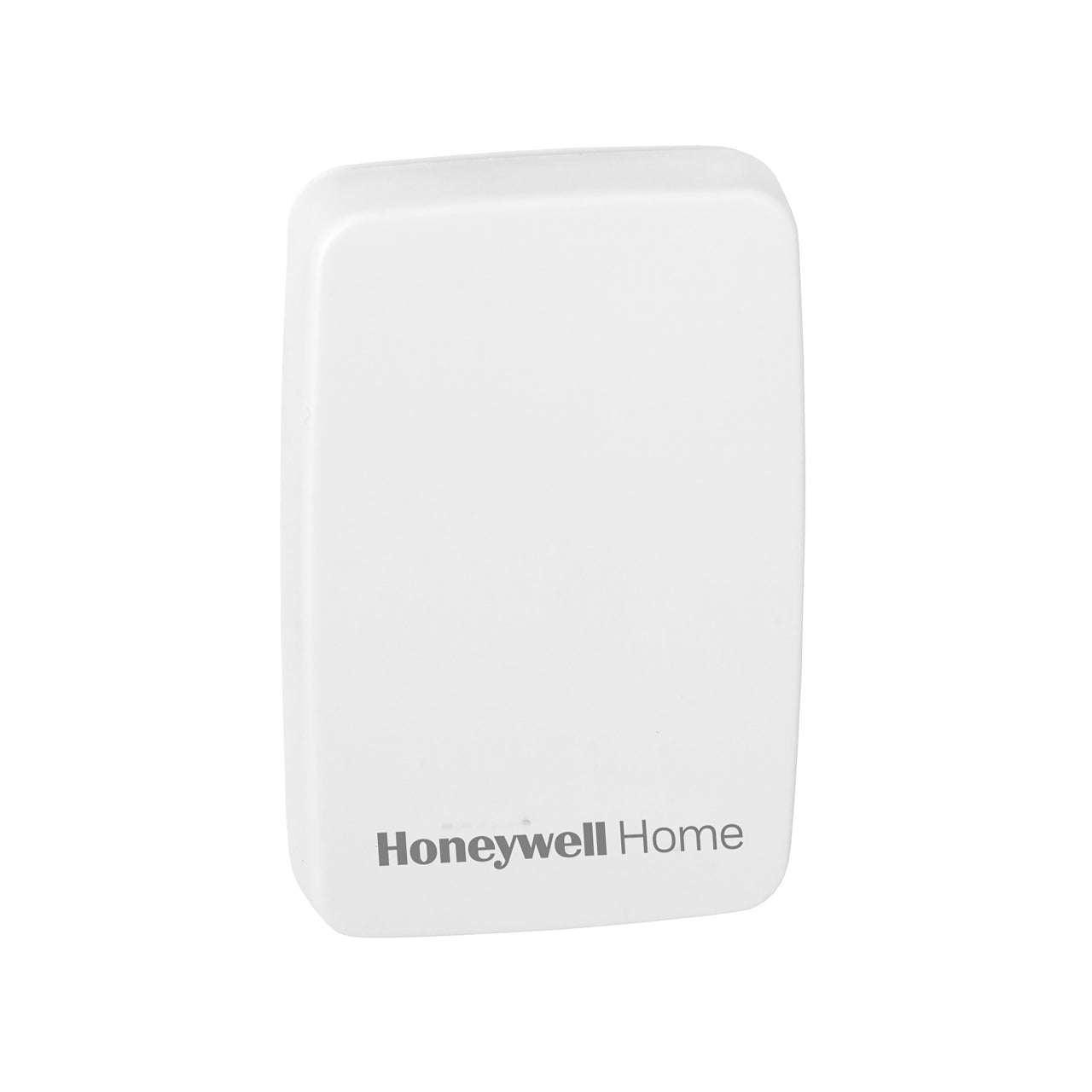

Resideo C7189U1005/U T-Stat Indoor

Product Description

The Resideo C7189U1005/U remote indoor temperature sensor is used to sense temperature remotely. It is designed for use with VisionPRO and VisionPRO IAQ thermostats. The sensor mounts directly on the wall using the included mounting screws and anchors.

• Used to sense temperature if the thermostat is installed in a poor temperature sensing location
• Small remote temperature sensor to match any room decor
• Easy-to install and use

Product Highlights

This remote indoor temperature sensor is factory calibrated and requires no field calibration. It accurately measures temperature in a range of 45 to 88 deg F and humidity from 5 to 95%.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: C7189U1005/U
• Country of Origin: MX

Technical Specifications

• Series: C7089
• Humidity Range: 5 to 95 %
• Country of Origin: MX
• Temperature Rating: 45 to 88 deg F
• Application: Indoor Temperature Sensing
• Product Height: 2.25 in, 57 mm
• Product Width: 1.5 in, 38 mm
• Ambient Operating Temperature (Min): 45 °F, 7 °C
• Ambient Operating Temperature (Max): 88 °F, 32 °C
• Environmental Conditions Measured: Temperature
• Mounting Type: Anchor, Threaded, Wall
• Ambient Relative Humidity (Min): 5% Non-condensing
• Ambient Relative Humidity (Max): 95% Non-condensing
• Humidity Rating: 5 to 95% RH Non-Condensing
• Suitable For Use With: VisionPRO IAQ Series Thermostats
• Brand: Resideo Technologies
