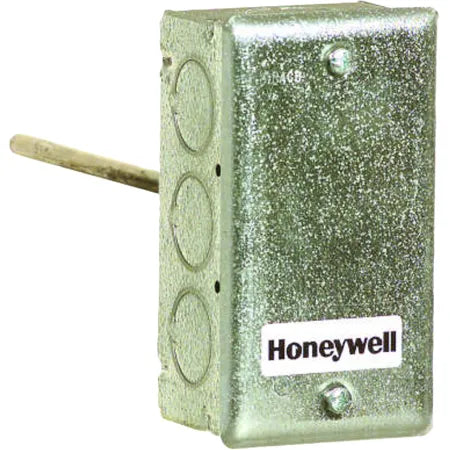

Resideo C7041D2001 C7041 Series Temperature Sensor 20K ohm NTC 5 Insertion Replacement MPN 0904

Product Description

The Resideo C7041D2001 is a temperature sensor designed for use with Excel controllers. This electronic sensor operates within a range of minus forty degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit. It features a resistance of twenty thousand ohms NTC, suitable for various applications including HVAC systems.

• Temperature operating range: -40 F to +250 F
• Insertion length: 5 inches
• Compatible with Excel 10, 50, 80, 100, and 500 controllers

Product Highlights

This product is ideal for monitoring temperatures in hot or chilled water applications. The sensor's design protects against physical damage, ensuring reliability in demanding environments.

Product Information

Standard Information

• Brand: Resideo
• MPN: C7041D2001

Technical Specifications

• Application: Immersion sensor for hot or chilled water, purchase Well 50001774-001 separately
• Dimension: 4-3/16 H x 2-5/16 W x 1-11/16 D
• Insertion Length: 5 inches
• Maximum Ambient Temperature Range: 302 F (150 C)
• Operating Ambient Temperature Range: -40 F to +250 F (-40 C to +121 C)
• Sensor Accuracy: +-0.36 F at 77 F (+-0.2 C at 25 C)
• Sensor Resistance in Ohms: 20K NTC @ 77 F (25 C)
• Shipping Ambient Temperature Range: -30 F to +160 F (-34 C to +71 C)
• Used With: Excel 10, 50, 80, 100, 500
