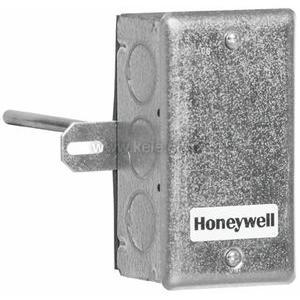

Resideo C7041B2005 Duct Discharge Air Sensor, Electronic, 20K ohm NTC, -40 F to +250 F Operating Range, 6 Insertion

Product Description

The Resideo C7041B2005 duct discharge air sensor is an electronic temperature sensor designed for Excel controllers. It features a 20K ohm NTC non-linearized sensor input and operates within a temperature range from -40 degrees Fahrenheit to +250 degrees Fahrenheit. This temperature sensor integrates a sensitive element with lead wires for protection against physical damage.

• Operating temperature range: -40 F to +250 F
• Compatible with Excel 10, 50, 80, 100, and 500 controllers
• Sensor resistance of 20K NTC at 77 F

Product Highlights

This sensor is ideal for monitoring air temperature in HVAC applications. It provides reliable readings and is suitable for various duct discharge uses.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer: Resideo

Technical Specifications

• Logo: Honeywell
• Application: Duct Discharge
• Dimension: 4-3/16 H x 2-5/16 W x 1-11/16 D
• Insertion Length: 6 inches
• Maximum Ambient Temperature Range: 302 F (150 C)
• Operating Ambient Temperature Range: -40 F to +250 F (-40 C to +121 C)
• Sensor Accuracy: +-0.36 F at 77 F ( +-0.2 C at 25 C)
• Sensor Resistance in Ohms: 20K NTC @ 77 F (25 C)
• Shipping Ambient Temperature Range: -30 F to +160 F (-34 C to +71 C)
• Used With: Excel 10, 50, 80, 100, 500
