Resideo Braukmann ZD6X12TZ 6L X 12H Parallel 2pos24v S/R HVAC Damper

Product Description

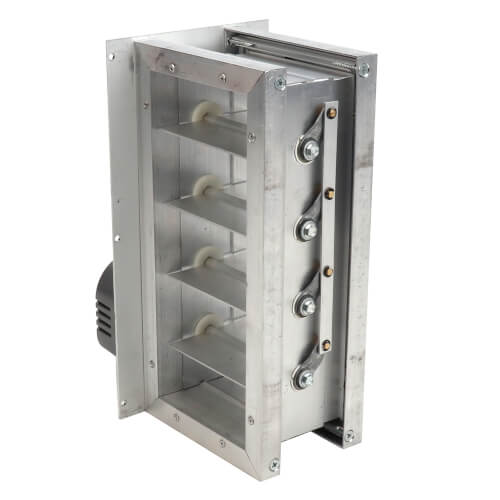

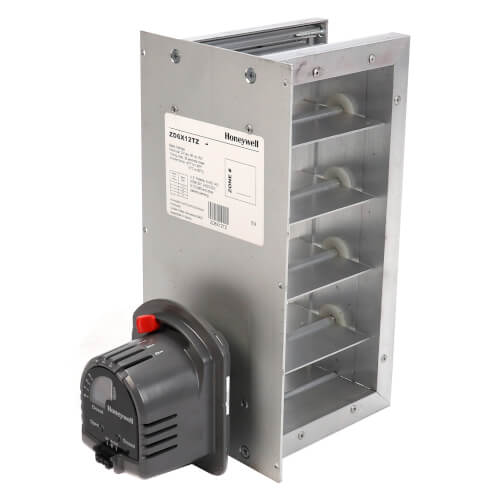

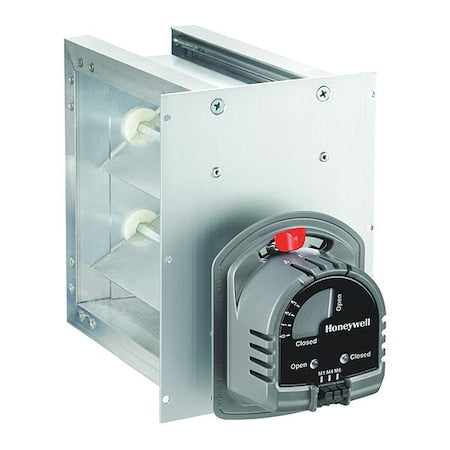

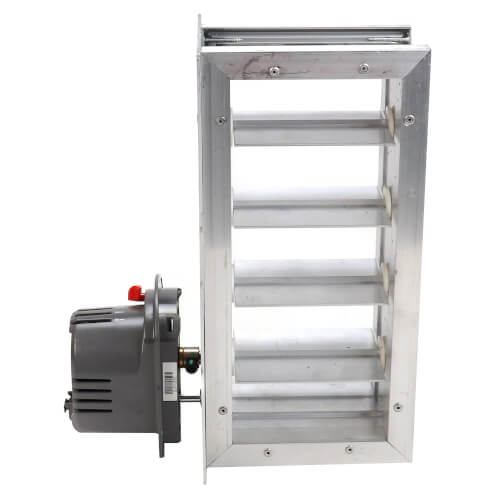

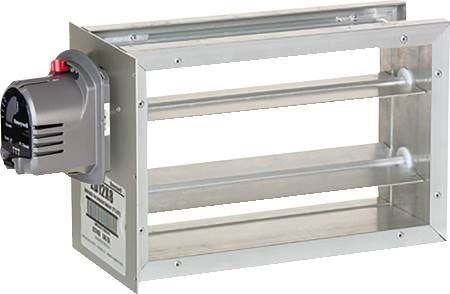

The Resideo Braukmann ZD6X12TZ is a parallel blade zone damper designed for efficient air flow control in HVAC systems. This model measures six inches by twelve inches and is operated with a 24V spring return motor, ideal for use in both heating and cooling applications.

• Robust 2-pole, 24V motor for reliable operation
• Compact, parallel blade design ensuring minimal air leakage
• Self-resetting feature for enhanced operational safety

Product Highlights

Constructed from durable materials, the ZD6X12TZ features Kevlar gearing which significantly enhances the lifespan of the damper by reducing wear. It's designed with adjustable range stops and a mechanical visual position indicator that allows easy monitoring of the damper status.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: ZD6X12TZ

Technical Specifications

• Dimensions: 6 inches x 12 inches
• Motor Voltage: 24V
• Configuration: Parallel Blade, 2 Positions
• Mounting Type: DIN Rail
• Usage: Suitable for industrial control, electrical distributions, motor control, lighting, and HVAC systems
