Resideo Braukmann WT8860A1000 Natural Gas Water Heater Controls

Product Description

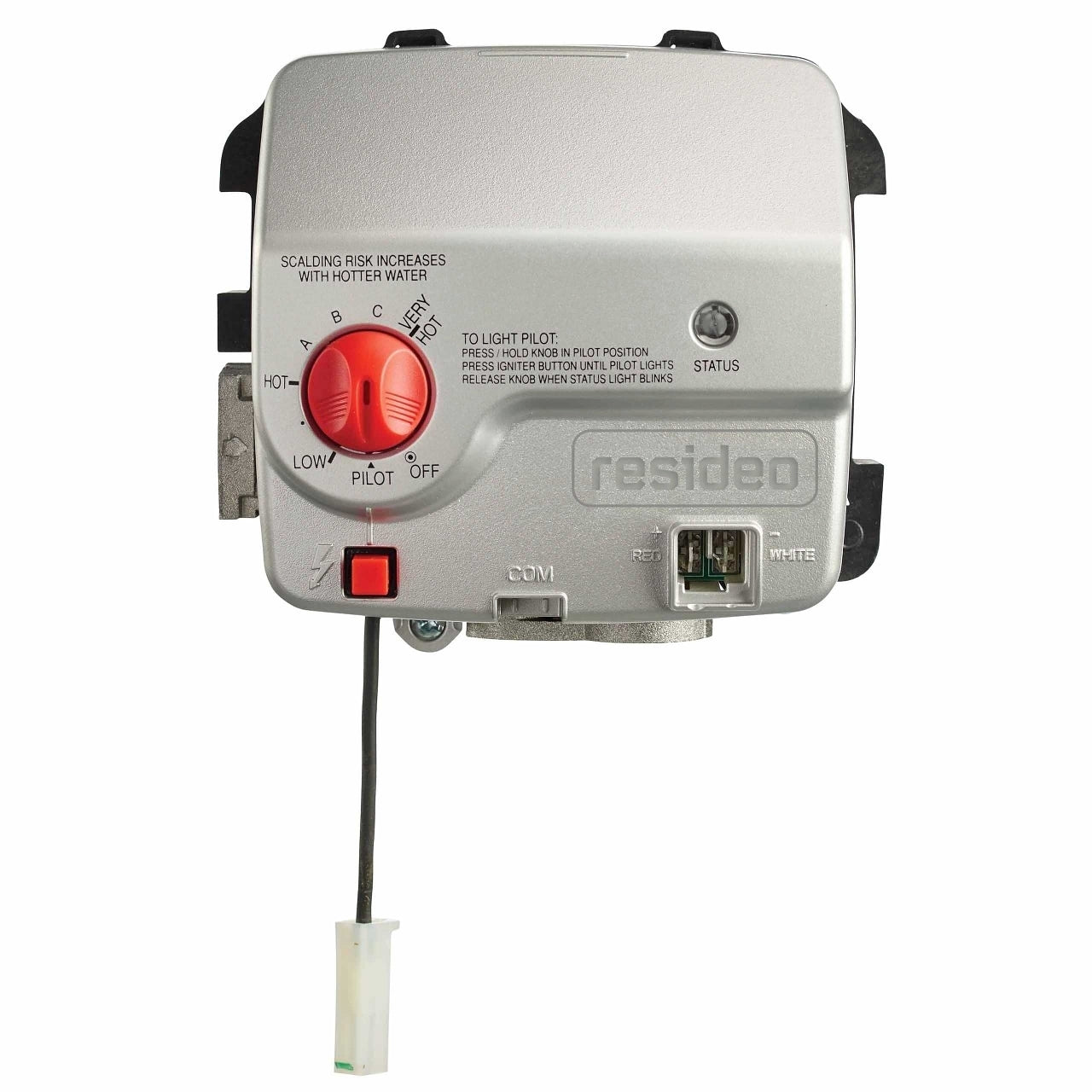

The Resideo Braukmann WT8860A1000 is a control system for natural gas water heaters designed for power damper applications. This model replaces the WV8860 valves found in Bradford White water heaters. It is ideal for standing pilot setups and utilizes an immersion well to measure water temperature. The control system features an NTC temperature sensor that can monitor temperatures up to two hundred twenty-one degrees Fahrenheit (one hundred five degrees Celsius).

• Designed for power damper water heater applications
• Replaces WV8860 valves used in Bradford White Water Heaters
• Integrated NTC temperature sensor for accurate readings

Product Highlights

This water heater control is built for efficiency and reliability in residential systems requiring natural gas. It supports safety and accuracy in temperature management.

Product Information

Standard Information

• Application: Water Heater Control
• Approvals and Standards: CSA Certified, ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89

Technical Specifications

• Compatible With: Standing Pilots
• Capacity (Min): 30 Btuh
• Capacity (Max): 100 Btuh
• Ignition Type: Standing Pilot with Peizo
• Type of Fuel: Natural Gas
• Sensor Type: NTC thermistor
• Body Pattern: 90 degree
• Inlet Pressure (Max): 5.0 in w.c.
• Mounting Type: Upright position
• Inlet Connection Size: 1/2 in
• Inlet Connection Type: NPT
• Outlet Connection Size: 1/2 in
• Outlet Connection Type: Inverted Flare
• Set Point Temperature (Min): 55 °F, 13 °C
• Set Point Temperature (Max): 155 °F, 68 °C
• TCO Cutout Temperature: 189 °F, 87 °C
• Shipping and Storage Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 66 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Shipping and Storage Temperature (Max): 150 °F, 66 °C
• Operating Relative Humidity (Max): 95% Non-condensing at 104 °F, 95% Non-condensing at 40 °C
• Warranty: 1 Year
