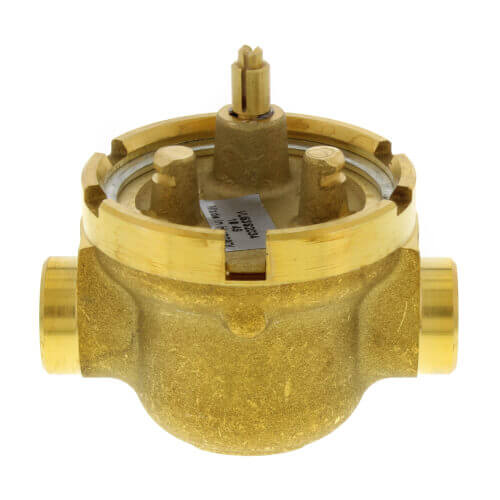

Resideo Braukmann VU53N1026 Two-Way Fan Coil Valve 1 Inch NPT 8 Cv Replacement VU53N1026

Product Description

The Resideo Braukmann VU53N1026 is a high-performance two-way fan coil valve designed for use in commercial HVAC systems to control the flow of hot or chilled water. This valve supports applications in fan coil units, terminal reheat coils, and convectors.

• Not suitable for systems with dissolved oxygen
• Compact design facilitates under-cover installation in most baseboard convectors
• Features a patented ball seal and triple O-ring for durability and leak prevention

Product Highlights

The VU53N1026 operates at a maximum safe pressure of 300 psi with quick opening flow characteristics, handling chilled or hot water mixed with up to 60% glycol.

Product Information

Technical Specifications

• Valve Type: Two-way Fan Coil
• Body Pattern: Straight-Through
• Flow Capacity: Cv 8
• Actuation Type: Requires separate actuator purchase
• Connection Type: NPT end connections suitable for iron or steel piping
• Operating Temperature: 34 F to 125 F fluid temperature
