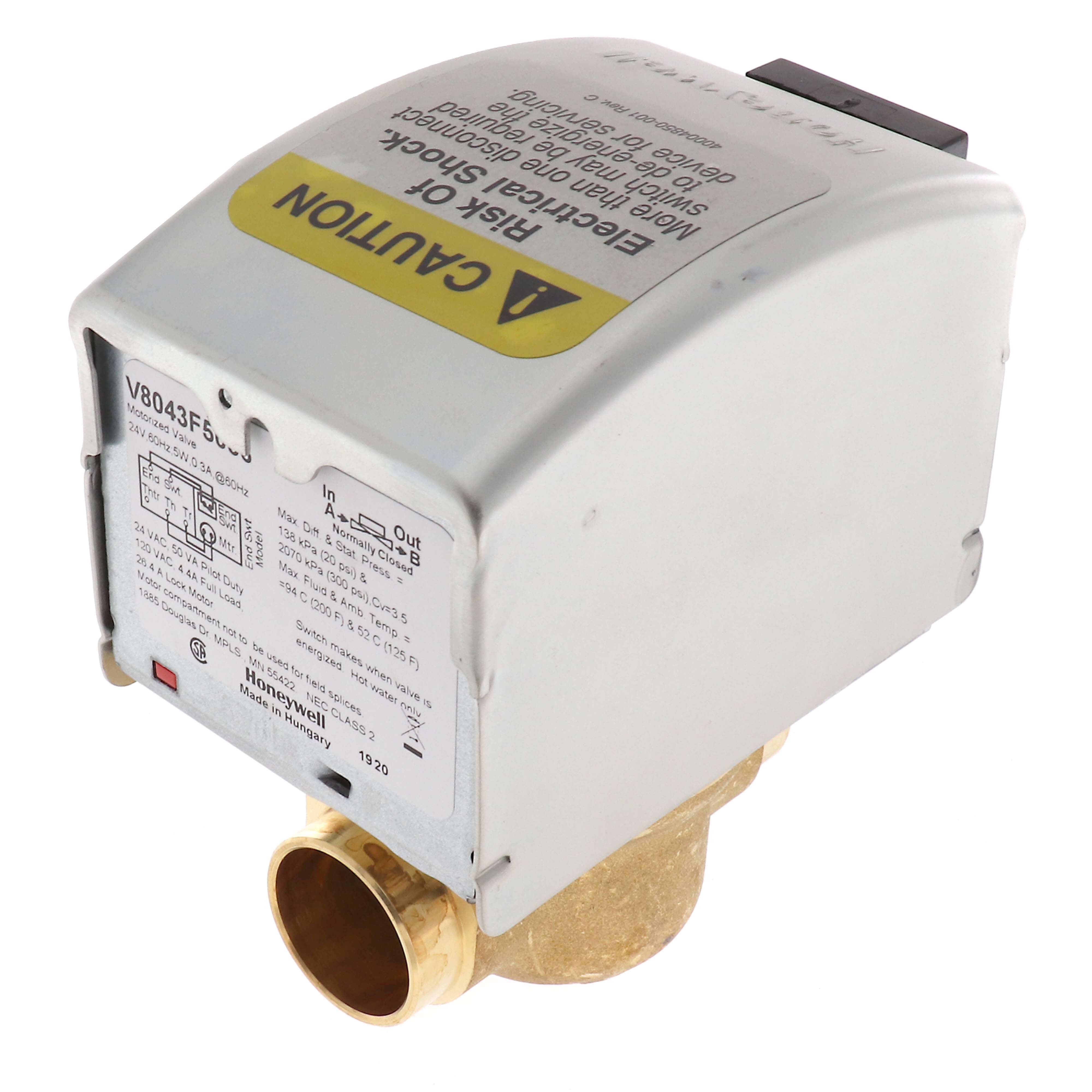

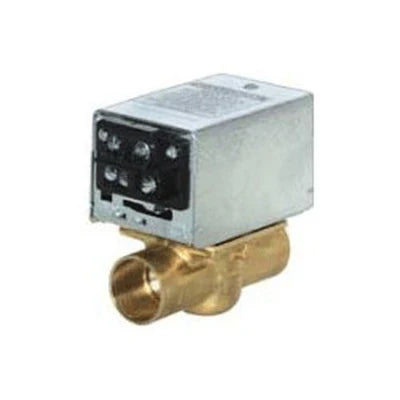

RESIDEO BRAUKMANN V8043F5036 3/4 INCH SWC 24V ZONE VALVE WITH AUXILIARY SWITCH

Product Description

The Resideo Braukmann V8043F5036 is a 24-volt AC powered zone valve, designed for controlling the flow of hot or chilled water in various hvac systems.

• Integrated auxiliary switch enhances functionality.
• Manual override feature for valve operation during power failure.
• Easy installation with a compact form factor and 'Quick Fit' push button for easy removal.

Product Highlights

Utilizes a 3/4 inch sweat connection ideal for closed loop hydronic systems. Ideal for residential and light commercial settings where a reliable water flow management is crucial. Offers silent operation and resistance to water hammer.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: V8043F5036

Technical Specifications

• Valve Type: Two-way, normally closed
• Voltage: 24V
• Connection: Sweat, 3/4 inch
• Capacity: 3.5Cv
• Max Pressure: 300 psi
• Electrical Connection: Screw terminal block
• Manual Opener: Yes
• Additional Feature: SPST auxiliary switch
