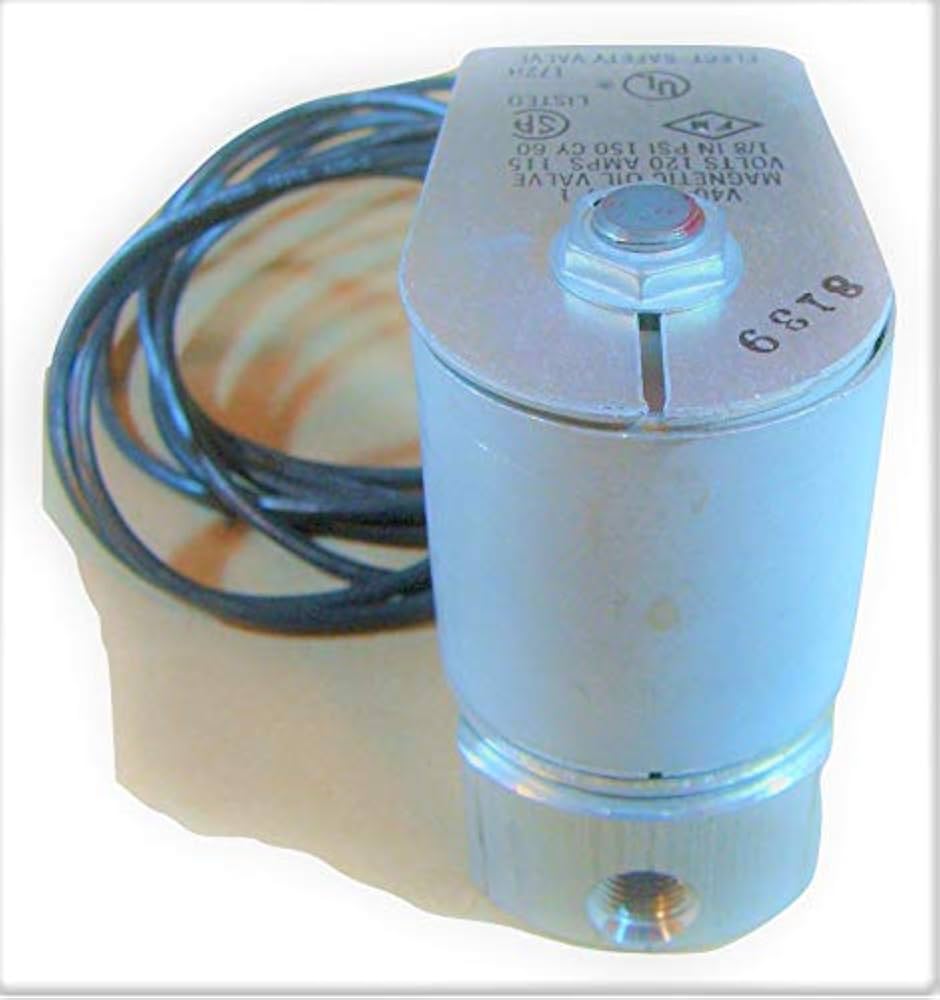

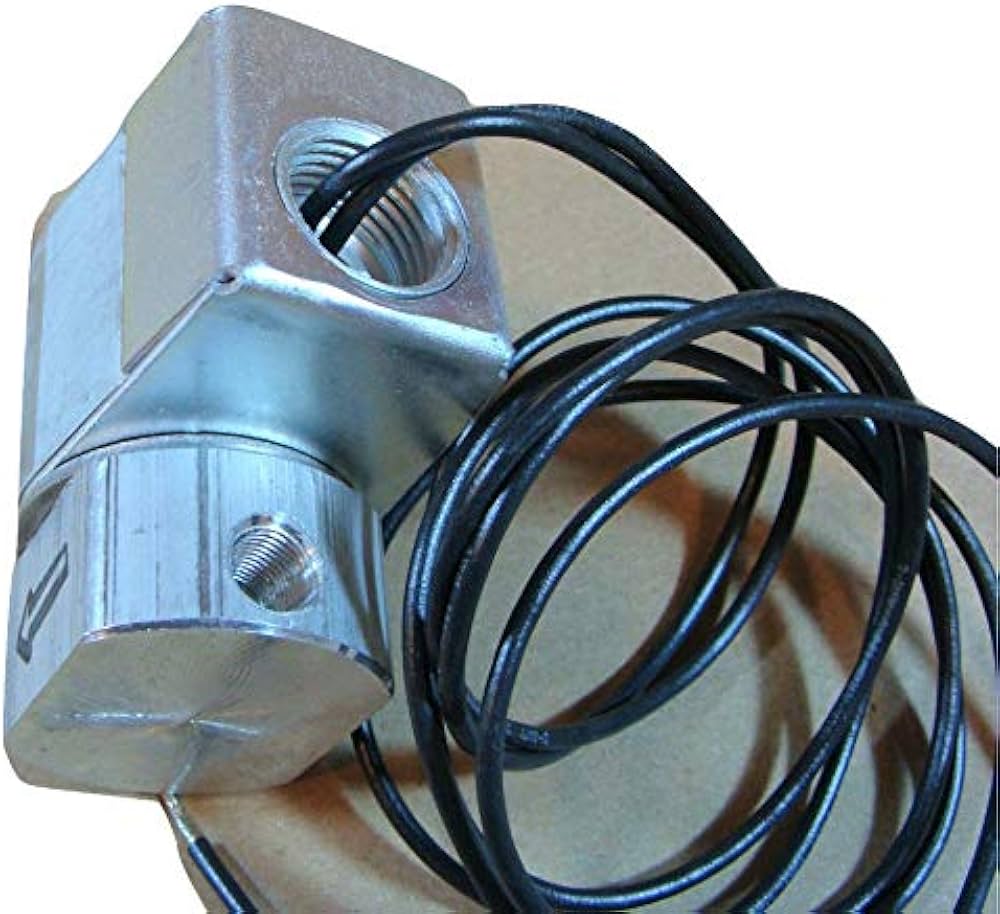

Resideo Braukmann V4046B1007/U Magnetic Oil Valve

Product Description

The Resideo Braukmann V4046B1007/U is a magnetic valve designed for use in domestic oil burner systems, operating at 120 Vac. This valve effectively controls the flow of oil, ensuring safety and efficiency in the operation of the burner. It can handle a maximum safe operating pressure of 150 psi, making it suitable for various applications.

• Immediate closure upon power loss to prevent fuel leaks.
• Flexible installation options available for pipelines or support brackets.
• Provides reliable ON-OFF control for #2 fuel oil flow.

Product Highlights

This valve integrates safety features such as a time delay for opening and instant closure in power failure scenarios. It allows for easy integration into existing systems, making it ideal for trade professionals.

Product Information

Standard Information

• Voltage: 120 Vac
• Frequency: 60 Hz

Technical Specifications

• Power Consumption: 8 W
• Current Ratings: 0.115 max amps
• Maximum Safe Operating Pressure: 150 psi (1034 kPa)
• Operating Temperature Range: 32 F to 115 F (0 C to 46 C)
• Max Fluid Temperature: 125 F (54 C)
• Pipe Connection: NPT
• Pipe Size: 1/8 in.
• Valve Opening Time: 3 to 8 sec
• Valve Closing Time: 1 sec max
• Electrical Connections: Two 36-in. leadwires
• Body Material: Aluminum
• Mounting: Directly in pipe or on support bracket
• Approvals: Underwriters Laboratories Listed, Canadian Standards Association
• Replacement Parts: 116671A Coil Assembly
