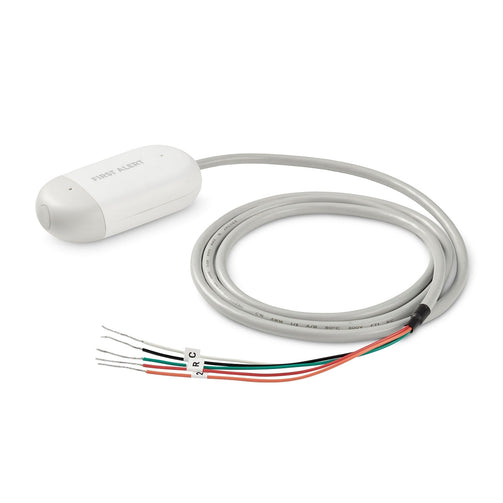

Resideo Braukmann TWLD3005-001 L2 WiFi Water Sensor and Switch

Product Description

The Resideo Braukmann TWLD3005-001 L2 WiFi Water Sensor and Switch detects water leaks. This device connects to 24 Volt systems to open or close a circuit when water is detected. It plays an important role in preventing HVAC condensation pan overflow and activating water pumps when required.

• Detects water leaks efficiently
• Wired to 24 Volt equipment for circuit control
• Versatile installation on walls or floors

Product Highlights

The L2 WiFi Water Sensor and Switch is designed for easy setup and alerts via the Resideo app.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Model: TWLD3005-001/U

Technical Specifications

• Operating Temperature: 32 degrees Fahrenheit to 140 degrees Fahrenheit (0 degrees Celsius to 60 degrees Celsius)
• Operating Humidity: 5 to 95% Non-Condensing
• Shipping Temperature: -22 degrees Fahrenheit to 158 degrees Fahrenheit (-30 degrees Celsius to 70 degrees Celsius)
• Shipping Humidity: 10 to 95% Non-Condensing
• Buzzer Alarm: 100 dBA
• Physical Dimensions: 3.9 inches x 2 inches x 1.1 inches (99.4mm x 52.4mm x 28.6mm)
• Standards: UL/CSA 6073
• Supply Voltage: 24VAC/VDC
• Maximum Voltage: 24 VAC/VDC
• Maximum Current: 5A
• Weatherproofing: IP44
• Rated Impulse Voltage: 330V
