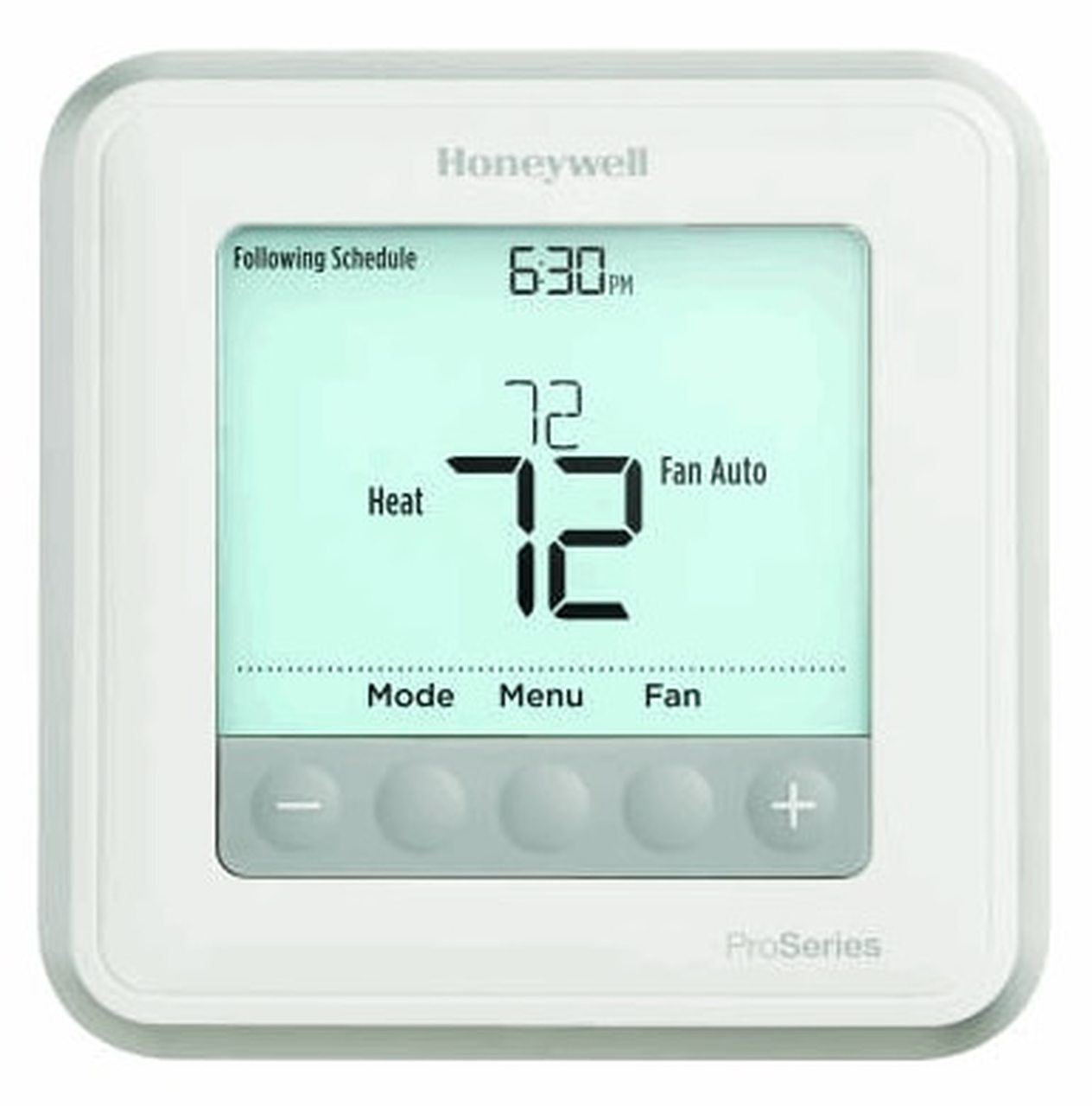

RESIDEO BRAUKMANN TH5220D1003 Thermostat

Product Description

The RESIDEO BRAUKMANN TH5220D1003 is a programmable thermostat for indoor climate control. It offers multiple programming options, including seven-day, five-one-one day, and five-two day schedules. This thermostat is compatible with both conventional and heat pump systems, ensuring effective temperature management for both heating and cooling operations. The device can be powered by batteries or hardwired, providing flexibility based on installation needs. Its user interface includes a clear display for easy navigation.

• Supports seven-day, five-one-one day, and five-two day programming.
• Compatible with multi-stage systems: 2 Heat/1 Cool heat pumps and 2 Heat/2 Cool conventional systems.
• Temperature management range: heating from 40 to 90 degrees Fahrenheit and cooling from 50 to 99 degrees Fahrenheit.

Product Highlights

This thermostat simplifies climate control for residential and commercial applications.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• MPN: TH5220D1003

Technical Specifications

• Mounting Type: Wall-mounted using the UWP system
• System Control: Heat-Off-Cool-Auto-Em Heat
• Display Size: 5.44 inches
• Programs Per Week: Up to 7 days, including 5-2, 5-1-1, and non-programmable options
• Control Range: Sets precise temperature for heating and cooling
• Power Source: Can be powered by batteries or hardwiring
• Humidity Range: Optimal operation within 5 to 90% RH non-condensing
• Input Voltage: 20 to 30 Vac
