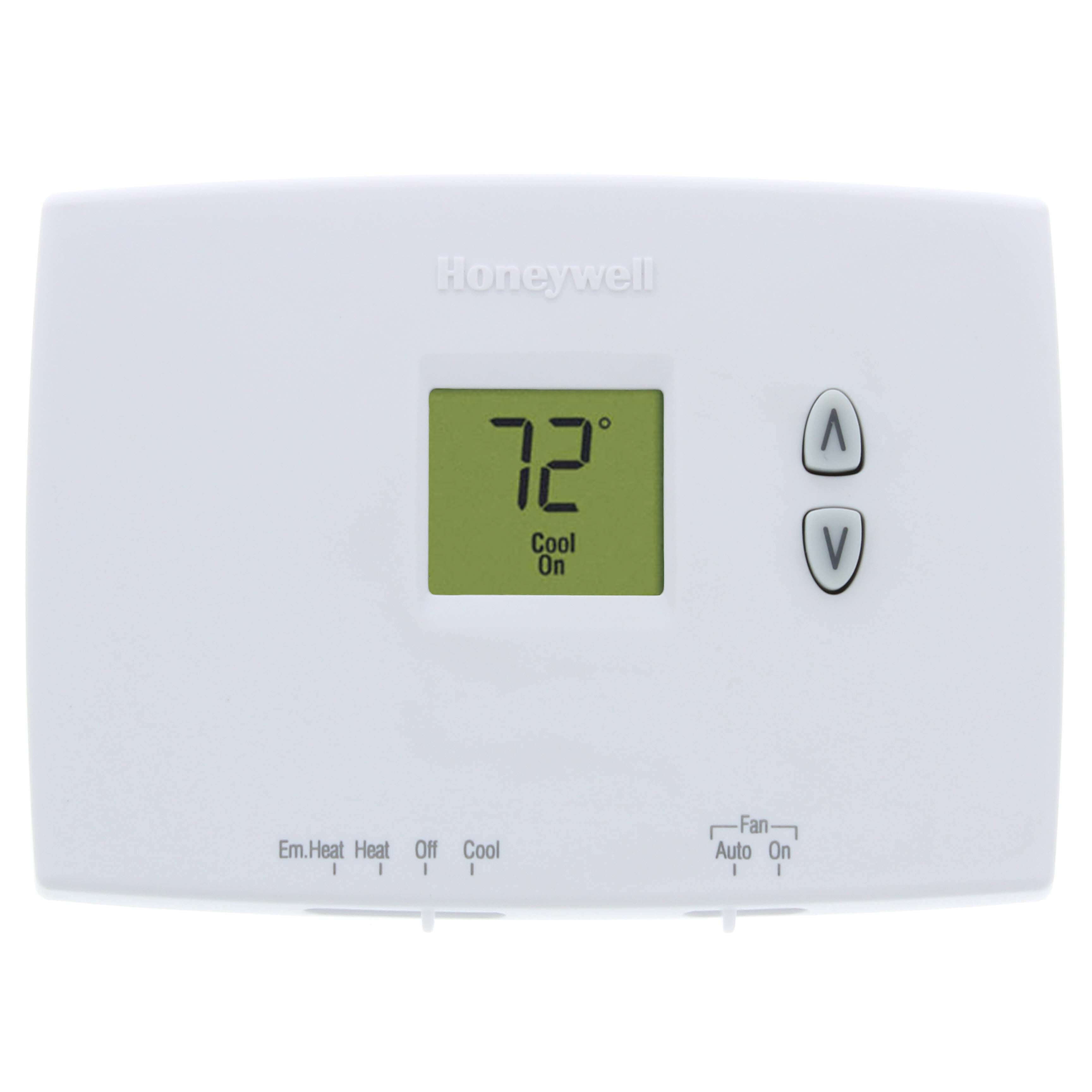

RESIDEO BRAUKMANN TH1210DH1001 PRO 1000 Digital Low Voltage Non-Programmable Thermostat 2 Heat/1 Cool Heat Pump Systems

Product Description

The Resideo Braukmann TH1210DH1001 PRO 1000 Non-Programmable Thermostat delivers strong and reliable performance for 2 Heat/1 Cool heat pump systems. This device operates at a low voltage and provides a user-friendly interface with push-button system switching.

• Simple and direct operation with manual system changeover
• Dual power options: battery or hardwired for user convenience
• Precision temperature control ranging between 40 degrees Fahrenheit heat mode to 99 degrees Fahrenheit cool mode

Product Highlights

Designed for easy installation and operation, the Resideo thermostat features a bright backlit display which enhances visibility in various lighting conditions. Its compact design makes it fit seamlessly into any home environment without compromising functionality.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Model: TH1210DH1001
• Category: Non-Programmable Thermostats
• Application: Heat Pump Systems

Technical Specifications

• Power Source: Battery/Hardwired
• Control Range: 40 - 90 degrees Fahrenheit Heat, 50 - 99 degrees Fahrenheit Cool
• Mounting Type: Horizontal
• Dimensions: 1 3/16 Inch L x 4 10/16 Inch W x 3 7/16 Inch H
• Color: Premier White
• Switch Action: Push Button
• Voltage Rating: 20/30 VAC, 50/60 Hz
• Number of Stages: 2 Heat/1 Cool
