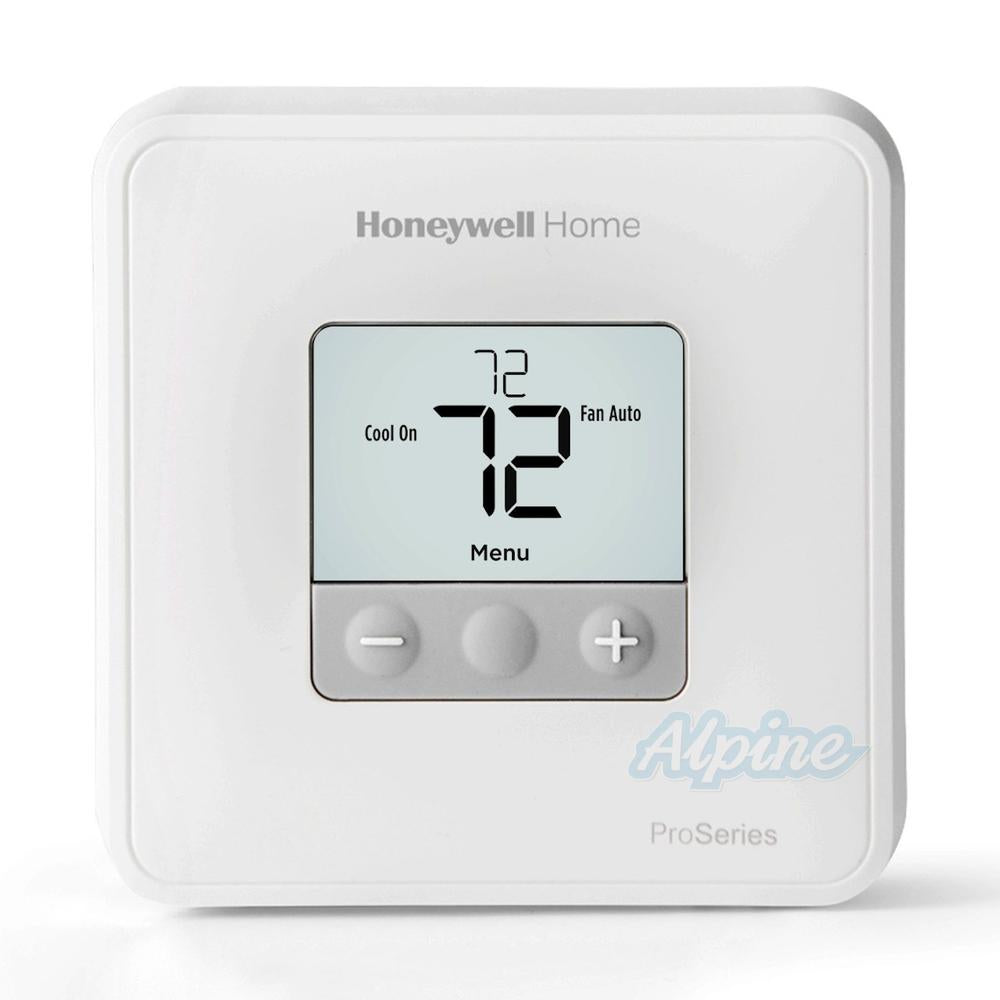

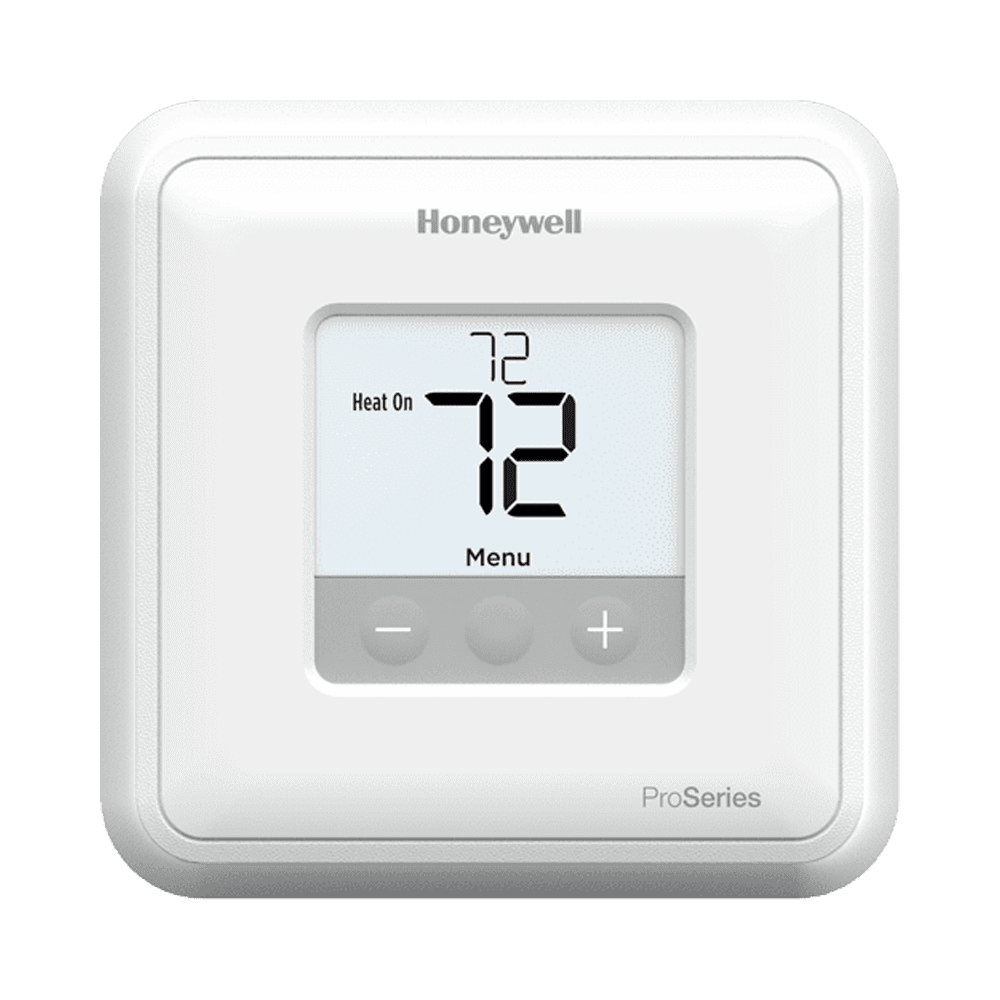

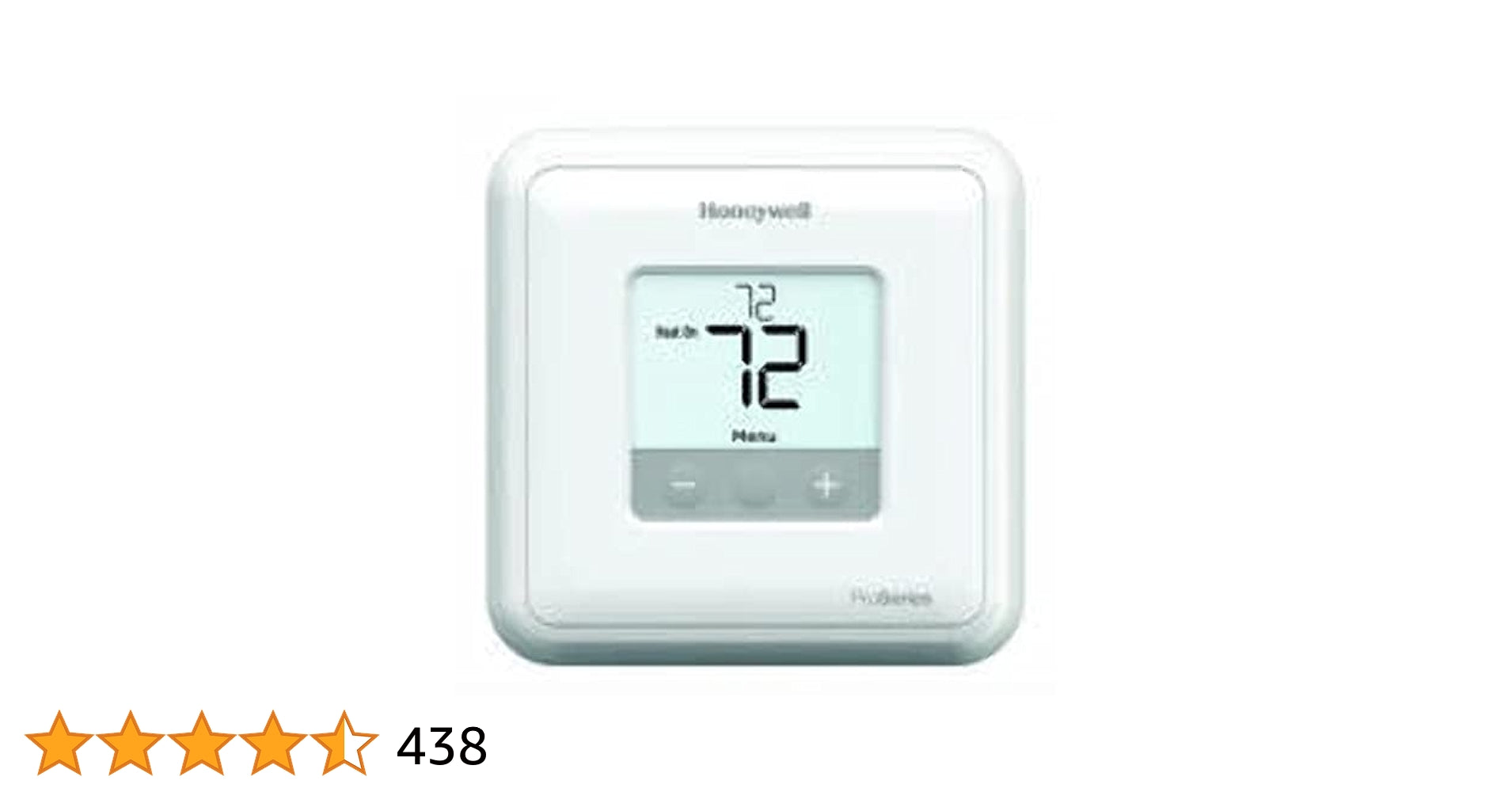

Resideo Braukmann TH1110D2009-837 T1 Pro Non-Programmable Thermostat

Product Description

The Resideo Braukmann TH1110D2009-837 T1 Pro Non-Programmable Thermostat is designed for efficient indoor climate control in both residential and commercial settings. It provides a simple interface for adjusting temperatures manually. This thermostat is compatible with 24V AC systems including gas, oil, and electric heating. It supports single-stage heating and cooling, as well as single stage heat pumps without auxiliary heat.

• Non-programmable for easy operation
• Digital display for clear temperature readings
• Compatible with single-stage heat and cool systems

Product Highlights

The T1 Pro's design removes complexity, allowing users to make straightforward temperature adjustments.

Product Information

Standard Information

• Application: 24V AC systems; Gas, Oil, Electric Warm Air; Hot water Coil; Steam/Gravity Systems
• Operating Temperature Range: 32 F to 102 F

Technical Specifications

• Dimensions: 4.06 inches long x 4.06 inches wide x 1.09 inches deep
• Electrical Ratings: 20 to 30 Vac
• Frequency: 50 Hz; 60 Hz
• Humidity Range: 5 to 90% RH, non-condensing
• Temperature Accuracy: ±1 F
• Settings: Auto-On for fan
• Power Method: Battery or Hardwired
• Voltage: 24V
