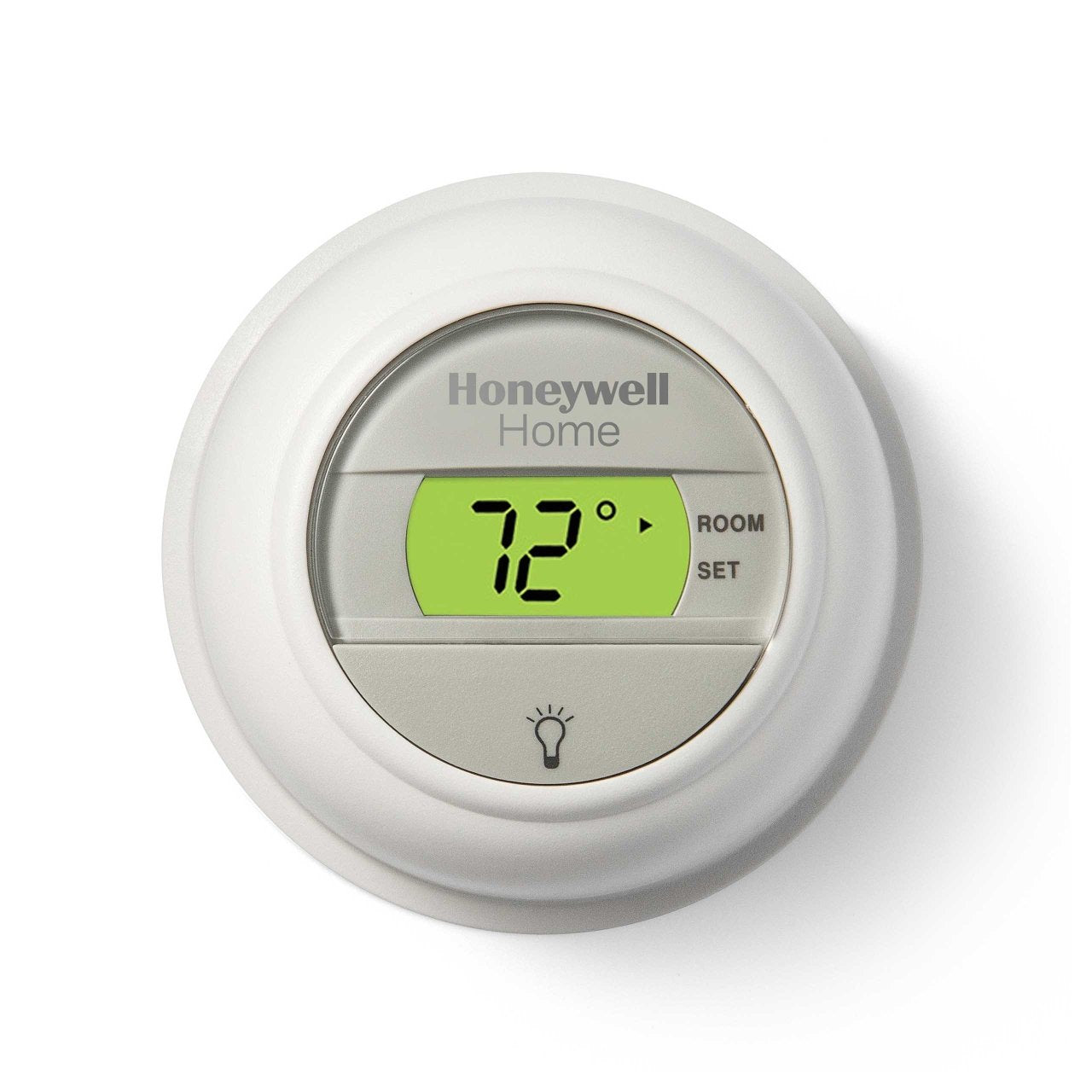

Resideo Braukmann t8775a1009 Round Non-programmable Digital Thermostat Premier White

Product Description

The Resideo Braukmann T8775A1009 is a round, non-programmable digital thermostat designed for single-stage heating systems running on 24V power. It delivers straightforward temperature control without the complexity of programmable scheduling. HVAC technicians and service professionals will recognize this as the classic round thermostat form factor, updated with a digital LCD screen for clear temperature readings. The T8775A1009 is well-suited for residential and light commercial applications where simple, reliable heat-only control is the priority. It supports both battery-powered and hardwired installations, giving installers flexibility depending on the job site requirements. The thermostat operates within an ambient temperature range of 37 degrees Fahrenheit to 102 degrees Fahrenheit, making it appropriate for standard indoor environments. The LCD display measures 0.75 square inches, providing a compact but readable readout. A backlight button and dial operation make adjustments quick and intuitive, even in low-light conditions. The thermistor sensor type ensures accurate ambient temperature detection for consistent comfort control. This unit does not include smart home integration, WiFi connectivity, or RedLINK capability, keeping the installation and setup process simple and fast. It ships with a wallplate, resistor assembly, mounting screws, and wall anchors, so technicians have everything needed for a complete installation right out of the box. The Premier White color finish blends easily into most residential interiors. Backed by a 5-year warranty, the T8775A1009 is a dependable choice for heat-only 24V system replacements and new installs where a no-frills, manual thermostat is the right solution.

• Non-programmable digital thermostat with LCD screen for simple, manual temperature control on 24V heat-only systems
• Supports both battery and hardwired power supply for flexible installation in a variety of job site configurations
• Includes wallplate, resistor assembly, mounting screws, and wall anchors for a complete out-of-the-box installation

Product Highlights

The Resideo Braukmann T8775A1009 offers reliable, no-frills heat-only temperature control in the classic round thermostat design. It is a straightforward drop-in replacement or new install solution for 24V single-stage heating systems.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• Manufacturer Part Number: t8775a1009

Technical Specifications

• Application: Heat Only
• Thermostat Type: Digital, Non-Programmable
• Stages: 1 Heat
• Smart Home Integration: No
• Display Type: LCD Screen
• Display Size: 0.75 square inches
• Program Type: Manual / Not Programmed
• Power Supply: Battery Powered, Hardwired
• Frequency: 60 Hz
• Warranty: 5 Years
• Includes: Wallplate, Resistor Assembly, Mounting Screws, Wall Anchors
• WiFi: No
• RedLINK: No
• Color: Premier White
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 degrees Fahrenheit (39 degrees Celsius)
• Ambient Operating Temperature (Min): 37 degrees Fahrenheit (2.8 degrees Celsius)
• Backlight Options: Backlight Button, Dial Operation
