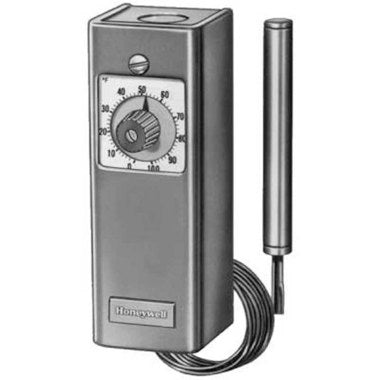

Resideo Braukmann T675A1508 Temperature Controller Remote Bulb with Manual Reset 5 Foot Capillary SPDT 120/240/277 Volts

Product Description

The Resideo Braukmann T675A1508 is a remote bulb thermostat designed to control the temperature of air or liquids in various settings. This device is suitable for applications that require temperature monitoring and control, especially when the controller must be outside the sensing area.

• Operating temperature range of zero to one hundred degrees Fahrenheit.
• Electrical rating of one hundred twenty, two hundred eight, and two hundred seventy-seven volts.
• Fast response models operate faster than standard models for quick temperature adjustments.

Product Highlights

This temperature controller is ideal for managing dampers and valves in heating and cooling systems. It features ambient temperature compensation to ensure accurate temperature regulation.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Type: Remote Bulb with Manual Reset

Technical Specifications

• Electrical Rating: 120/240/277V
• Temperature Range: 0-100 Degrees Fahrenheit
• Size: 5-5/8 inches x 2 inches x 2-5/8 inches
• Approved: UL Listed and CSA Certified
• Application: Boiler, Tank, Pipe, Duct
• Shipping Weight: 3.000 lbs
• Length: 2-5/8 inches
• Width: 2 inches
• Height: 5-5/8 inches
