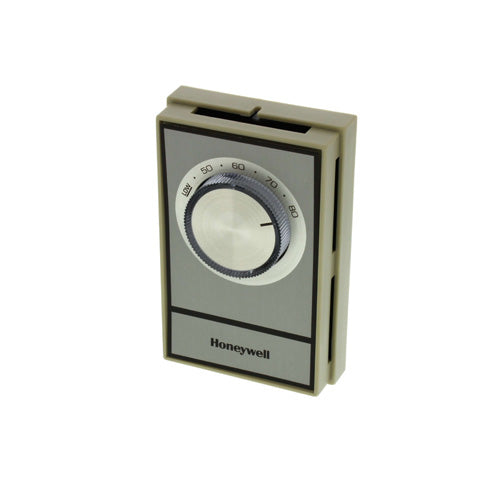

RESIDEO BRAUKMANN T498A1810 Non-Programmable Electric Heat Thermostat 40-85 deg F

Product Description

The Resideo Braukmann T498A1810 is a non-programmable electric heat thermostat designed for reliable control of electric heating systems. It operates within the temperature range of 40 to 85 degrees Fahrenheit with a 3-degree Fahrenheit differential. This model does not include a thermometer.

• SPST switch for straightforward on/off control.
• Hardwired installation with vertical mount.
• Supports one heat stage and includes color-coded leads for easy installation.

Product Highlights

Constructed for long-term reliability, the Bi-Metal sensor along with a rugged plastic mounting base ensures durability. Suitable for use with electric baseboards, convectors, and fan-forced heaters.

Product Information

Standard Information

• Series: T498A
• Color: Brush Gold
• Mounting Type: Vertical
• Dimension: 4-9/16 inches L x 2-7/8 inches W x 1-15/16 inches D

Technical Specifications

• Sensor Type: Bi-Metal
• Switch Type: SPST
• Control Range: 40-85 degrees F
• Voltage Rating: 120/277 VAC, 60 Hz
• Number of Stages: 1 Heat
• Full Load Current: 19 - 22 A
