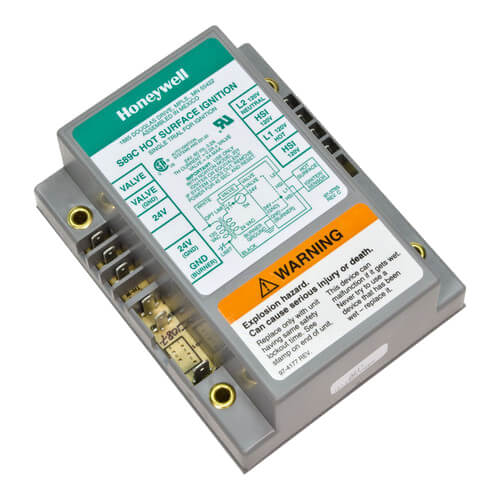

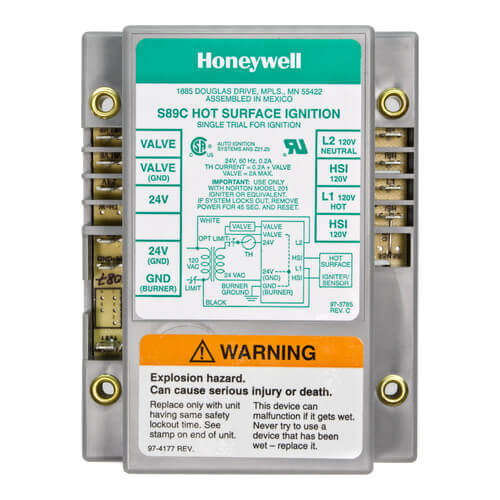

Resideo Braukmann S89C1087 HSI Control 6 Second Lockout

Product Description

The Resideo Braukmann S89C1087 is a high-efficiency single rod hot surface ignition control designed for secure and reliable operation in various furnaces and heating systems. This controller utilizes a direct hot surface ignition system to provide rapid heat up and precise control over the heating process.

• 6-second trial with automatic lockout for increased safety.
• Compatible with both natural gas and LP systems.
• Durable design capable of operating in environments from -40 F to +175 F.

Product Highlights

The S89C1087 model features robust electrical specifications, including a 24 Vac power rating and a maximum ambient temperature tolerance of -40 F to +175 F. Designed for both domestic and commercial applications, this ignition control ensures optimum performance under severe conditions.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: S89C1087

Technical Specifications

• Ignition System Type: Direct Hot Surface Ignition
• Trials to Lockout: 1
• Electrical Ratings: 24 Vac
• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Ignition Sequence: Single trial for main burner ignition
• Maximum Valve Load: 2A @ 24 Vac
