Resideo Braukmann q7800a1005 Wiring Subbase Panel Mount for 7800 Series Relay Modules

Product Description

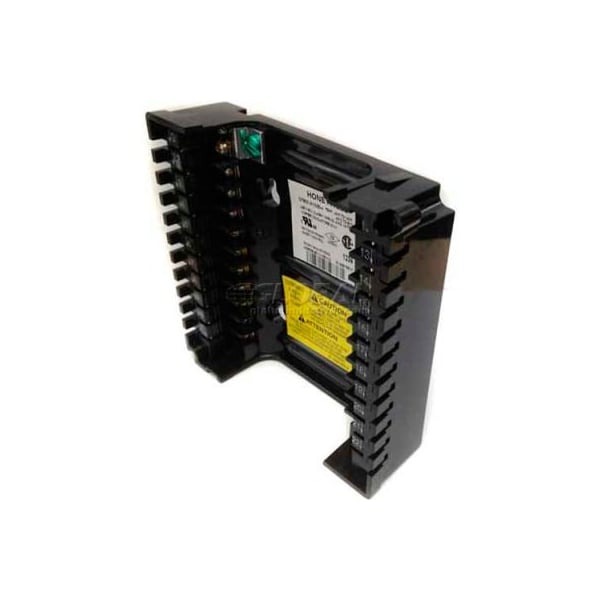

The Resideo Braukmann Q7800A1005 is a panel mount wiring subbase designed for use with 7800 Series relay modules and the S7830A expanded annunciator. This subbase provides a secure, organized mounting solution that simplifies wiring and installation in commercial burner control systems. HVAC technicians and combustion control specialists rely on this type of subbase to keep control system wiring clean, accessible, and properly terminated. Instead of wiring directly to a relay module, the subbase acts as a dedicated wiring interface, allowing the relay module to be snapped in or removed without disturbing the field wiring. This makes troubleshooting, module replacement, and system servicing significantly faster and less prone to wiring errors. The Q7800A1005 is built for panel mounting, meaning it can be secured directly to a control panel surface or DIN-compatible enclosure. This keeps the burner control assembly tidy and professional, which matters in commercial heating applications where multiple controls are mounted in close proximity. The 7800 Series relay modules it supports are widely used in industrial and commercial burner management systems, making the Q7800A1005 a commonly stocked replacement and installation component for service contractors, OEM panel builders, and mechanical contractors working on boilers, furnaces, and combustion equipment. Sourced from Mexico and backed by the Resideo Braukmann brand, this subbase meets the standards expected in demanding commercial HVAC and burner control environments. Whether you are building a new control panel or replacing a damaged subbase in the field, the Q7800A1005 is a direct-fit solution for 7800 Series applications.

• Panel mount subbase provides a clean, fixed wiring point for 7800 Series relay modules
• Compatible with the S7830A expanded annunciator for expanded burner control applications
• Allows relay module removal and replacement without disturbing field wiring, speeding up service calls

Product Highlights

The Q7800A1005 panel mount wiring subbase simplifies installation and maintenance of 7800 Series burner control relay modules by providing a dedicated, secure wiring interface. It is a trusted component for commercial HVAC and combustion control panel assemblies.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• Manufacturer Part Number: Q7800A1005

Technical Specifications

• Mount Type: Panel Mount
• Compatible Series: 7800 Series Relay Modules, S7830A Expanded Annunciator
• Country of Origin: Mexico
• UPC: 85267074032
