Resideo Braukmann ms4104f1010/u Fire and Smoke Damper Actuator On/off Spring Return 30 In-lb 120V Ac Hardwired Nema 1 IP40

Product Description

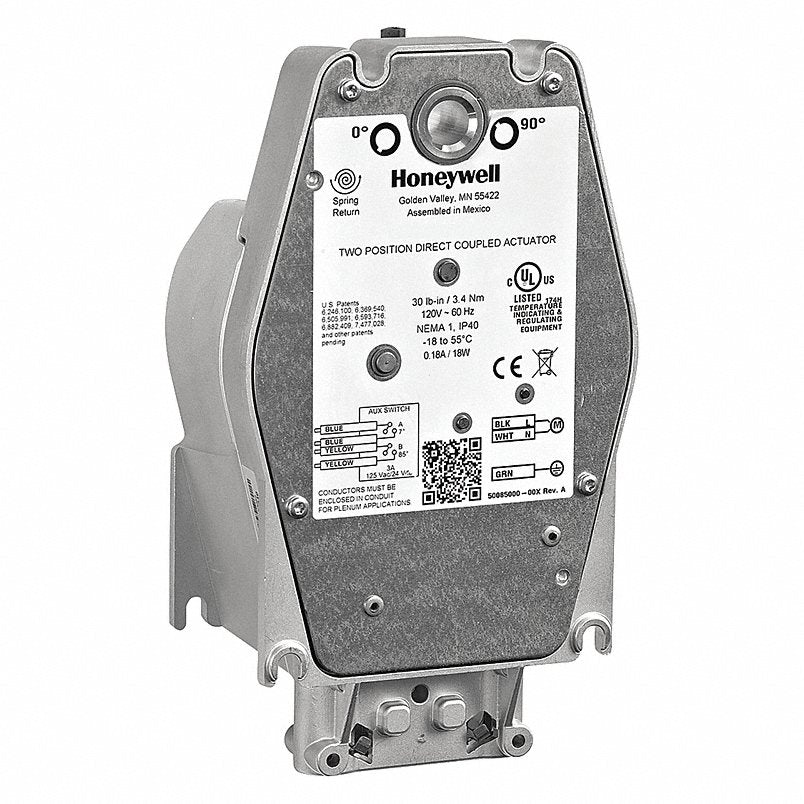

The Resideo Braukmann MS4104F1010/U is a fire and smoke damper actuator built for critical life-safety applications in commercial and institutional buildings. This actuator delivers reliable on/off control with spring return fail-safe action, meaning it automatically returns to its safe position if power is lost. That fail-safe behavior is essential during a fire event, when dampers must close quickly to block the spread of smoke and flame through ductwork and air handling systems. The MS4104F1010/U is rated for both fire and smoke damper applications, making it a dual-rated solution that meets demanding code requirements in a single unit. It operates on 120V AC power and draws 18 watts during normal operation. The actuator produces a rated torque of 30 inch-pounds, which is sufficient for direct-mount installation on round shafts measuring 1/2 inch in diameter. Shaft rotation covers a clockwise and counterclockwise stroke of 95 degrees. In an emergency, the spring return mechanism closes the damper in 15 seconds or less, helping limit fire and smoke travel through a building. The unit is hardwired and features a single-pole double-throw auxiliary contact for integration with fire alarm panels and building automation systems. With a NEMA 1 and IP40 enclosure rating, the actuator is suited for indoor dry locations typical of HVAC mechanical rooms and air handling unit installations. Operating temperature range spans from 0 degrees Fahrenheit to 130 degrees Fahrenheit. The overall dimensions are 9 inches in height, 5.125 inches in width, and 3.25 inches in depth. HVAC technicians and fire protection contractors rely on actuators like the MS4104F1010/U for retrofit and new construction damper control projects where code-compliant, rapid-response operation is required.

• Dual-rated for both fire and smoke damper control applications
• Spring return fail-safe action closes damper within 15 seconds on power loss
• SPDT auxiliary switch enables integration with fire alarm panels and building automation systems

Product Highlights

The Resideo Braukmann MS4104F1010/U provides code-compliant, fail-safe fire and smoke damper actuation with 30 inch-pounds of torque and a fast 15-second close time. It is a direct-mount, hardwired unit designed for reliable performance in life-safety HVAC applications.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• Manufacturer Part Number: MS4104F1010/U

Technical Specifications

• Product Type: Actuator
• Application: Fire and Smoke Dampers
• Return Action: Spring Return
• Control Signal: On/Off
• Rated Torque: 30 in-lb
• Input Voltage: 120V AC
• Power Consumption: 18 W
• Time to Close: 15 seconds
• Contact Form: SPDT
• Number of Auxiliary Switches: 0
• Electrical Connection Type: Hardwired
• Fire Application Rating: Fire Application Rated
• Smoke Application Rating: Smoke Application Rated
• Building Automation System Compatible: Yes
• NEMA Rating: 1
• IP Rating: IP40
• Mounting Type: Direct Mount
• Maximum Operating Temperature: 130 degrees Fahrenheit
• Minimum Operating Temperature: 0 degrees Fahrenheit
• Shaft Rotation: CW/CCW
• Stroke Degree: 95 degrees
• For Shaft Shape: Round
• For Shaft Diameter: 1/2 inches
• Overall Height: 9 inches
• Overall Width: 5.125 inches
• Overall Depth: 3.25 inches
• Country of Origin: Mexico
