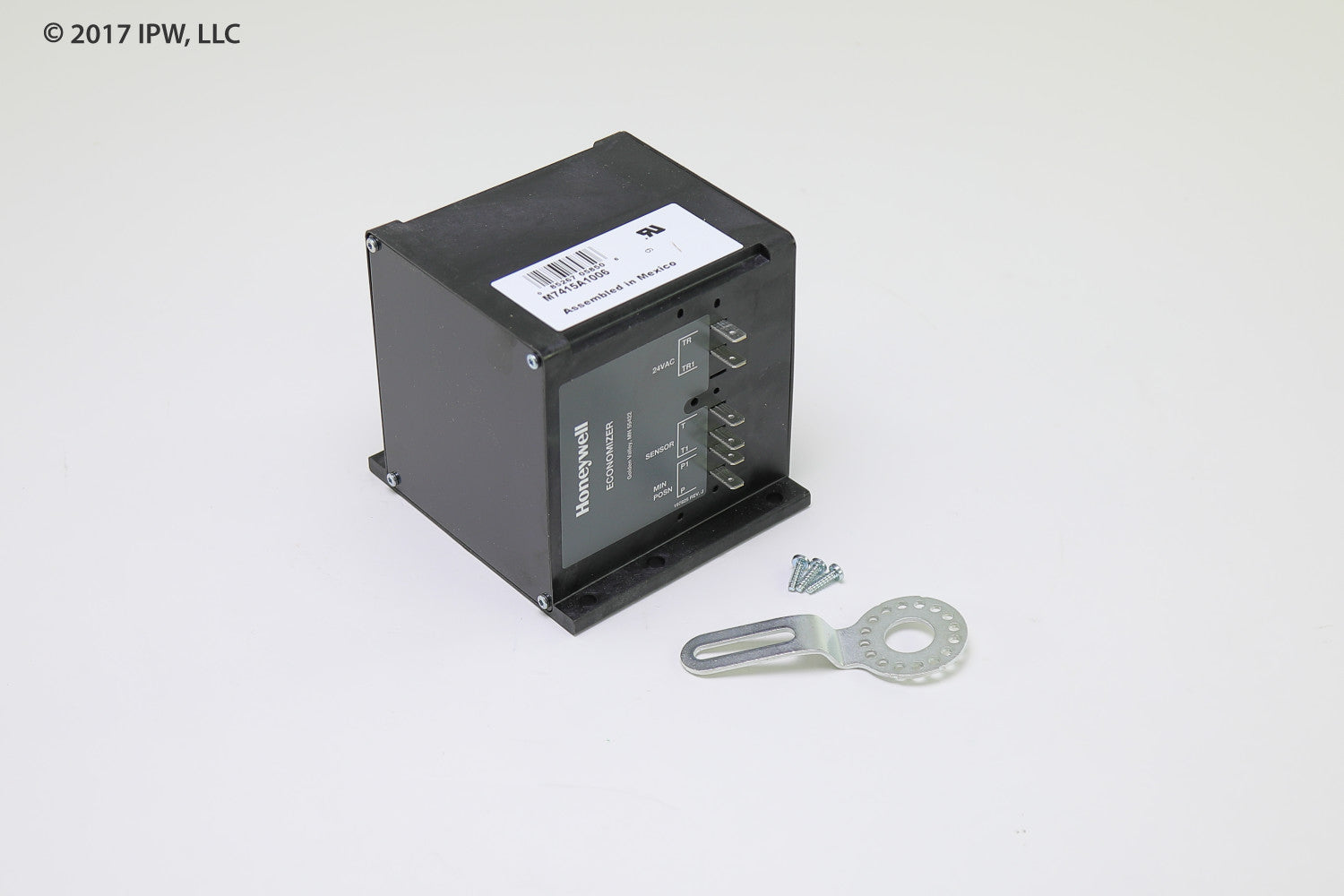

Resideo Braukmann m7415a1006 Economizer Damper Actuator 24vac Spring Return Foot Mounted 25 Lb-in

Product Description

The Resideo Braukmann M7415A1006 is a modulating economizer damper actuator built for precise airflow control in commercial and light industrial HVAC systems. This actuator is designed to position dampers in air handling units, economizer systems, and ventilation equipment where accurate, reliable modulation is critical. HVAC technicians and mechanical contractors rely on this type of actuator to maintain indoor air quality and energy efficiency by controlling the amount of outside air entering a building based on system demand. The M7415A1006 operates on a 24Vac power supply, making it compatible with a wide range of building automation systems and HVAC control panels. It accepts a modulating control signal, which allows the damper position to be continuously adjusted rather than simply opened or closed. This gives the system finer control over airflow, helping to meet ventilation requirements and reduce heating and cooling loads. The actuator features spring return functionality, meaning it will automatically return the damper to a fail-safe position in the event of a power loss. This is a critical safety and system protection feature in commercial HVAC applications. The foot-mounted design simplifies installation on standard damper shafts and bracketing configurations. The M7415A1006 provides a maximum stroke of 90 degrees, which covers the full range of motion for most standard damper assemblies. The spring return timing is 18 seconds nominal, allowing fast fail-safe closure when needed. The nominal opening time is 90 seconds, providing smooth and controlled damper positioning during normal operation. Rotation direction is counter clockwise. The torque output is rated at 25 pound-inches, giving it the force needed to drive dampers in typical commercial HVAC duct systems. A thermistor feedback element supports accurate position sensing and control integration.

• Modulating control signal for continuous, precise damper positioning in economizer and ventilation systems
• Spring return mechanism returns damper to fail-safe position in 18 seconds nominal upon power loss
• 25 pound-inch torque output with 90-degree maximum stroke and counter clockwise rotation for broad damper compatibility

Product Highlights

The Resideo Braukmann M7415A1006 economizer damper actuator delivers modulating control, spring return fail-safe operation, and foot-mounted convenience for commercial HVAC damper applications. Its 24Vac input and thermistor feedback make it a reliable fit for building automation and energy management systems.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• Manufacturer Part Number: M7415A1006

Technical Specifications

• Control Signal: Modulating
• Supply Voltage: 24Vac
• Feedback Device: Thermistor
• Actuator Type: Spring Return
• Mounting Style: Foot Mounted
• Torque Output: 25 pound-inches
• Maximum Stroke: 90 degrees
• Spring Return Time: 18 seconds nominal
• Opening Time: 90 seconds nominal
• Rotation Direction: Counter Clockwise
