RESIDEO BRAUKMANN L91B1035 Pressuretrol Controller

Product Description

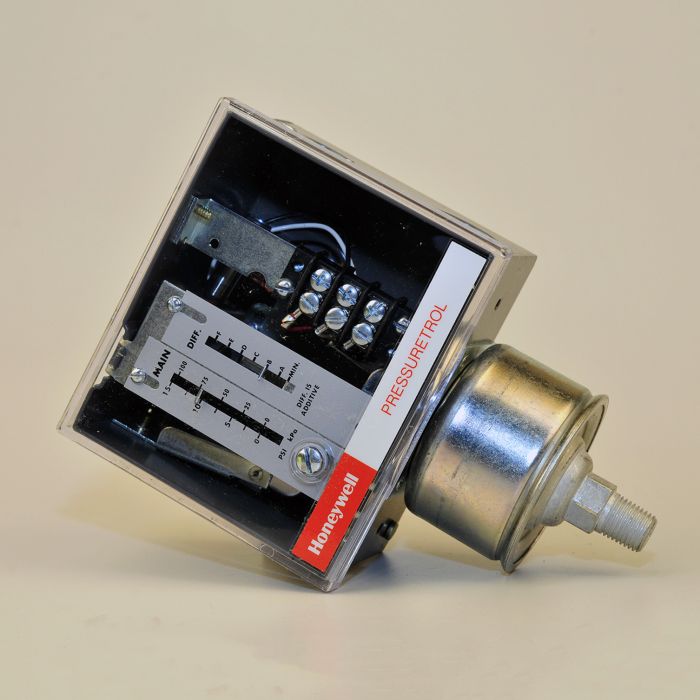

The RESIDEO BRAUKMANN L91B1035 Pressuretrol Controller is a Series 90 modulating pressure controller. This device is designed for direct control of modulating motors or valves, making it ideal for automatic burners or steam heating systems. It effectively regulates liquid, air, and various non-corrosive gases. The adjustable throttling range allows users to set the desired pressure control range. The construction includes a steel case and a clear plastic cover, which enables easy observation of pressure settings and potentiometer action.

• Modulating pressure control for industrial applications.
• Adjustable throttling range of 0-15 PSI.
• Suitable for HVAC systems and steam heating operations.

Product Highlights

This controller provides efficient pressure management for various applications, enhancing the operation of heating and industrial systems.

Product Information

Standard Information

• Application: Modulating pressure control for regulation of liquid, air, or other non-corrosive gases
• Model Number: L91B1035

Technical Specifications

• Pressure Range: 0-15 PSI
• Pressure Differential: 1.5 PSI to 12 PSI
• Temperature Range: 32°F to 150°F
• Electrical Connections: Screw terminals
• Sensor Element: Brass bellows
• Switch Action: Modulating
• Connection Type: 1/4 in NPT
