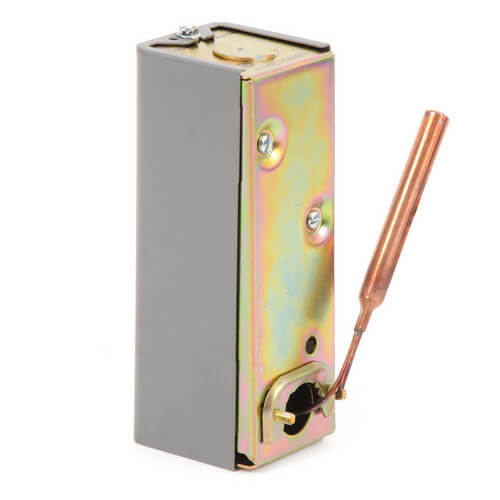

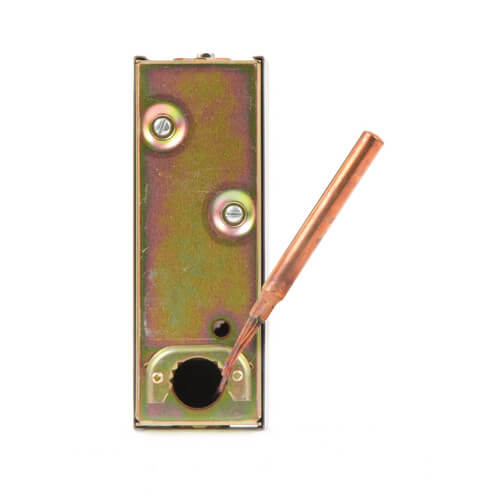

RESIDEO BRAUKMANN L4006B1007 Circulator Aquastat 100-240 Degree Fahrenheit 5 Degree Differential

Product Description

The Resideo Braukmann L4006B1007 Circulator Aquastat operates efficiently across a broad temperature range from 100 to 240 degrees Fahrenheit, featuring a fixed five-degree differential. This device is engineered for precise temperature control in HVAC systems, ensuring optimal performance in both heating and cooling applications.

• Reliable temperature control with a fixed five-degree Fahrenheit differential
• Robust construction suitable for industrial environments
• SPST switching action, contacts make on temperature rise

Product Highlights

Integrated with a precision-crafted sensor that maintains accurate temperature management. Ideal for use in a range of industrial applications such as fluid power systems, pneumatic systems, and process control applications.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: L4006B1007

Technical Specifications

• Temperature Range: 100 to 240 Fahrenheit
• Differential: 5 Fahrenheit fixed
• Capillary Length: 1.5 inches
• Electrical Ratings: 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac
• Approvals: UL, CSA, AGA certified
• Dimensions: 5.625 inches high x 2 inches wide x 2.125 inches deep
