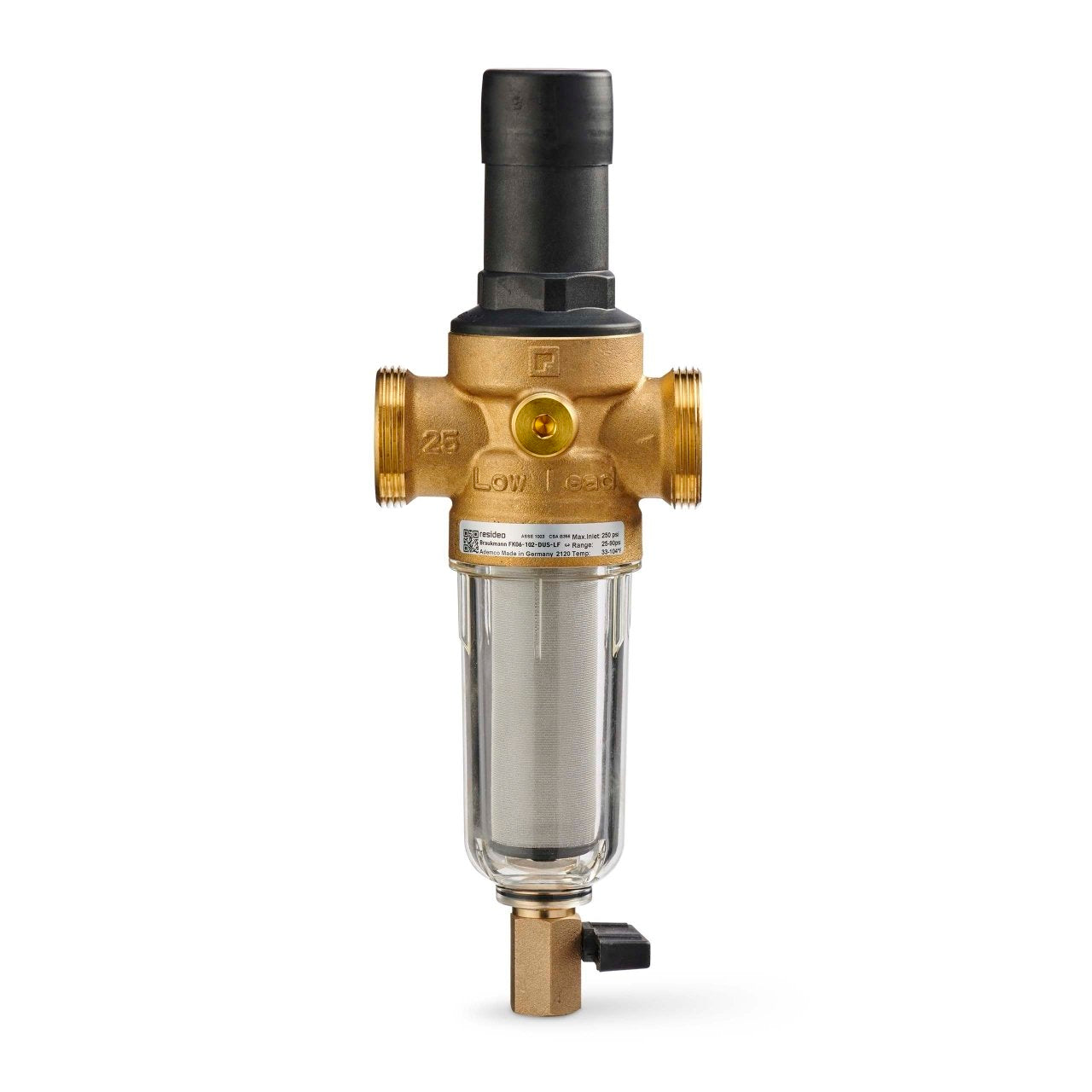

Resideo Braukmann FK06-102-DUS-LF Pressure Reducing Valve with Sediment Filter 1inch Sweat

Product Description

The Resideo Braukmann FK06-102-DUS-LF Pressure Reducing Valve with Sediment Filter ensures consistent outlet pressure and provides a reliable source of filtered water. This combination unit is ideal for potable water and irrigation systems. Designed with user-friendly features, it simplifies installation and operation.

• Includes pressure regulating valve and rinsable filter.
• Streamlines installation process and safeguards equipment.
• 50 micron rinse-able filter for optimal performance.

Product Highlights

This valve and filter combination prevents foreign matter entry and guards against pressure spikes. It is efficient and enhances system reliability.

Product Information

Standard Information

• Product Type: PRV & Sediment Filter Combo
• Application: Irrigation, Point of Entry, Industrial, Commercial

Technical Specifications

• Type: Whole House, Sediment
• Size: 1 inch
• Connection Type: Sweat
• Material: Brass
• Lead Free: Yes
• Temperature Range (F): 33°F to 140°F
• Max Pressure (PSI): 250
• Micron Rating: 50
• Ambient Operating Temperature (Min): 33°F, 1°C
• Ambient Operating Temperature (Max): 140°F, 60°C
• Approvals and Standards: ASSE 1003 Listed, CSA Certified, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
• Connection Size: 1 in
• Differential Pressure (Min): 14.5 psi, 99.97 kPa
• Inlet Pressure (Max): 250 psi, 1723.69 kPa
• Outlet Pressure (Min): 25 psi, 172.37 kPa
• Outlet Pressure (Max): 90 psi, 620.53 kPa
• Preset Outlet Pressure: 60 psi, 414 kPa
• Product Height: 11.56 in, 293 mm
• Product Length: 6.53 in, 166 mm
• Product Width: 6.53 in, 165.89 mm
• Replacement Parts: D06FA-1B, AS06-1C, 0901499
• Valve Body Material: Brass
• Valve Body Pattern: Straight Through
• Warranty: 1 Year
• Controlled Media: Drinking Water
