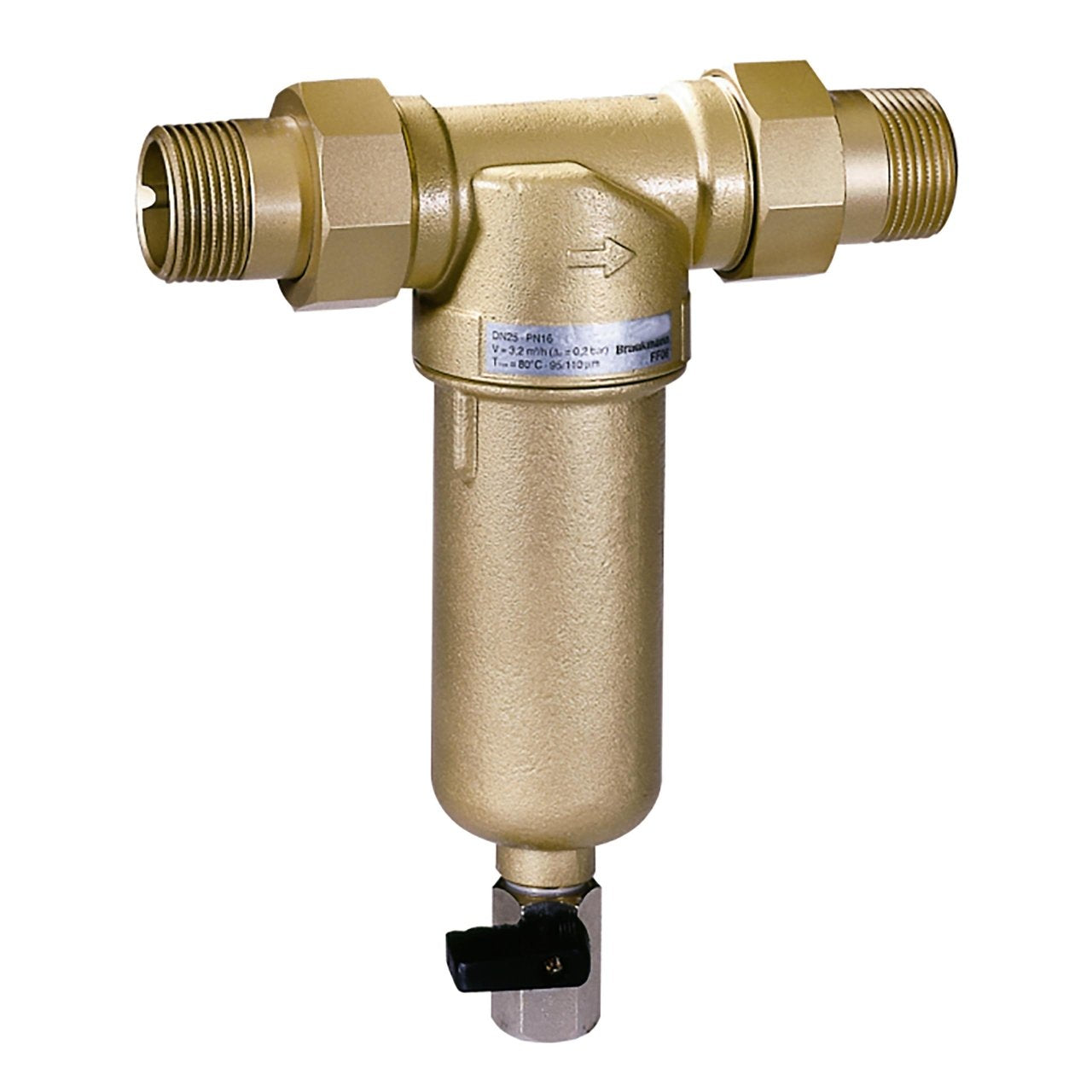

Resideo Braukmann FF06-3/4AA Miniplus Rinsable Fine Filter

Product Description

The Resideo Braukmann FF06-3/4AA Miniplus rinsable fine filter is designed for effective filtration of water. This filter prevents the entry of unwanted particles like rust, hemp, and sand, which can cause corrosion. The sediment collected can be easily rinsed away from the filter bowl, ensuring a continuous supply of clean water. Its compact design allows it to fit in tight spaces.

• Provides filtered water during reverse rinsing.

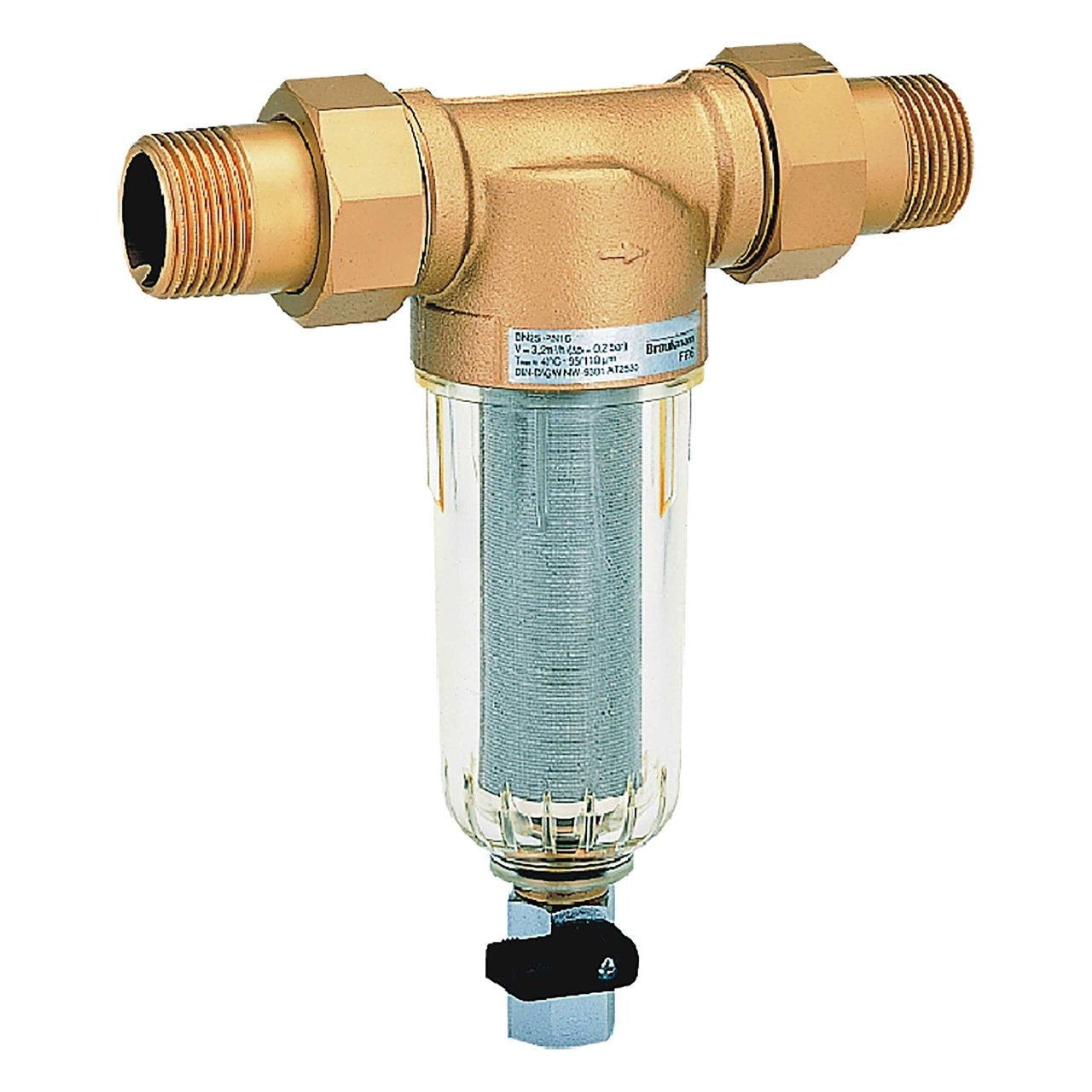

• Features a clear synthetic filter bowl for easy contamination checks.
• Rinsable filter and complete bowl are available for replacement.

Product Highlights

Efficient filtration system designed for minimal maintenance.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: FF06-3/4AA

Technical Specifications

• DN Size: 20 mm
• Approvals and Standards: DVGW
• Controlled Media: Drinking Water
• Connection Type: External Thread
• Filter Mesh Size: 100 micron
• Filter Type: Rinsable
• Strainer Included: Yes
• Mounting Position: Horizontal
• Operating Pressure (Max): 25 bar
• Ambient Operating Temperature (Max): 70 °C
• Housing Material: Dezincification-resistant brass
• Port Diameter: 3/4 in
