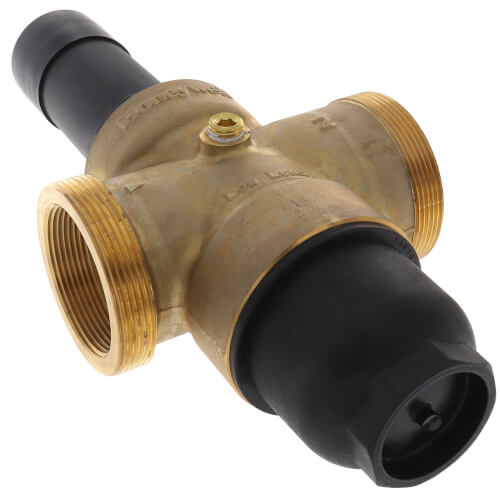

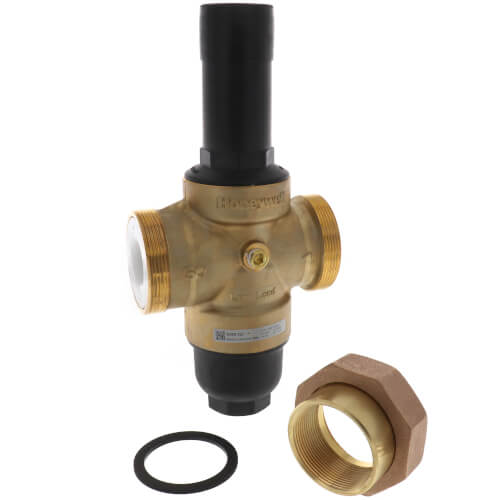

Resideo Braukmann DS06-105-SUT-LF Pressure Reducing Valve Lead Free Replacement DS06G1026

Product Description

The Resideo Braukmann DS06-105-SUT-LF Pressure Regulating Valve is engineered to maintain consistent outlet pressure, suitable for potable water and various irrigation uses. This lead-free valve adjusts without a gauge and can be installed in multiple configurations.

• Built-in Dial-Set for easy adjustment.
• Durable unitized cartridge design.
• Outlet pressure range from 25 PSI to 90 PSI.

Product Highlights

Ideal for residential, commercial, and irrigation applications, this valve ensures reliability and ease of maintenance with its integrated strainer and accessible NPT taps.

Product Information

Standard Information

• Height: 8 5/8 inches
• Length: 6 inches
• Connection Type: Female NPT threaded for easy integration.

Technical Specifications

• Operating Temperature Range: Up to 140 degrees Fahrenheit.
• Outlet Adjustment Range: 25 to 90 PSI
• Max Inlet Pressure Rating: 250 PSI
• Gauge Taps: Dual 1/4 inch NPT
• Reducing Ratio: 10:1 Maximum
• Union Fittings: Single-Union Threaded
• Approvals: ASSE 1003, IAPMO, CSA Certified
• Lead Free Compliance: Yes
