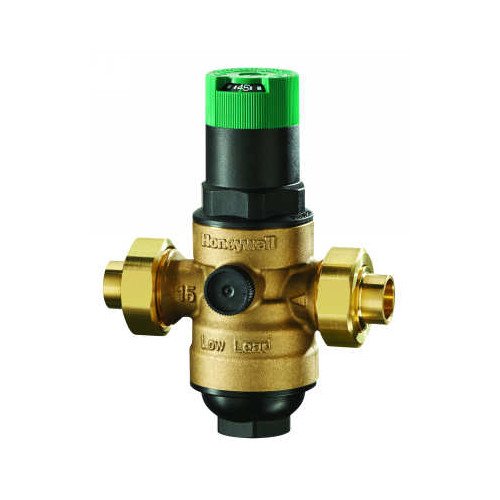

Resideo Braukmann DS06-104-DUS-LF Pressure Reducing Valve 1-1/2 in Bronze Stainless Steel FNPT Union Sweat

Product Description

The Resideo Braukmann DS06-104-DUS-LF Pressure Reducing Valve offers optimal performance in maintaining a constant outlet pressure regardless of variations in the supply pressure. Designed for both commercial and residential applications, this valve is perfect for ensuring stable water pressure in systems. Manufactured using high-quality bronze, plastic, and stainless steel, it boasts durability and reliability.

• Easy installation with double-union sweat and FNPT connections
• Integrated strainer simplifies maintenance by trapping debris
• Outlet pressure can be adjusted from 25 PSI to 90 PSI without additional tools

Product Highlights

This valve is equipped with an adjustment dial for precise control and a noncorroding unitized cartridge that houses all essential components, making it replaceable with ease. Its versatility allows installation in various configurations to accommodate different plumbing systems.

Technical Specifications

Standard Information

• Brand: Resideo Braukmann
• MPN: DS06-104-DUS-LF
• Certifications: ASSE 1003, IAPMO, CSA
• Lead Compliance: Yes

Measurements & Operating Conditions

• Dimension: 8.625 inches high x 6 inches long
• Operating Temperature: Up to 140°F
• Maximum Inlet Pressure: 250 PSI
