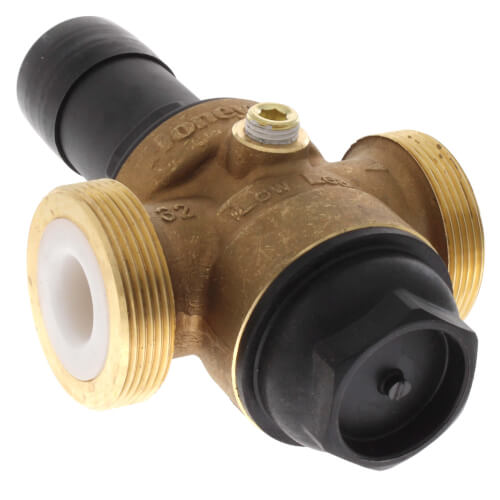

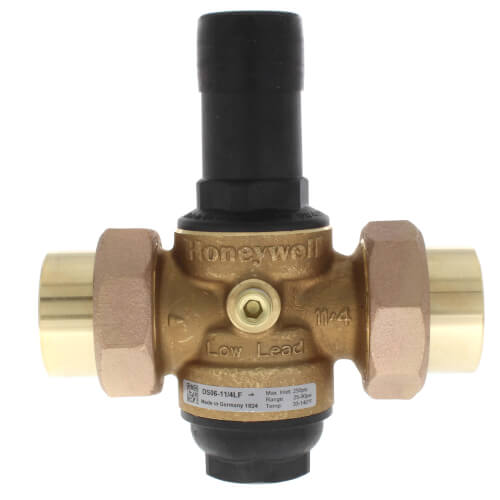

Resideo Braukmann DS06-103-DUT-LF Pressure Reducing Valve 1-1/4 Inch Double Union NPT DialSet

Product Description

The Resideo Braukmann DS06-103-DUT-LF Pressure Reducing Valve ensures consistent outlet pressure across a broad range of inlet pressures, tailored for potable water and irrigation. The unique downstream pressure adjustment dial removes the necessity for a pressure gauge during setup, simplifying the installation process.

• Built-in dial set, eliminating the need for additional gauges during pressure setting
• Easily replaceable noncorroding unitized cartridge system

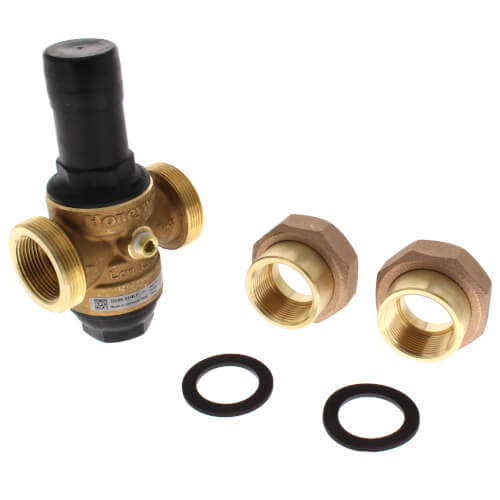

• Versatile installation options with double-union, thread-by-thread, or single-union configurations

Product Highlights

This valve is particularly well-suited for applications ranging from residential to industrial, including turf and irrigation, due to its robust design and substantial outlet adjustment range of 25 PSI to 90 PSI. The incorporation of a built-in strainer and accessible 1/4 inch NPT gauge tap on both sides further enhances maintenance ease and system reliability.

Technical Specifications

• Approvals: ASSE 1003, IAPMO, CSA, Low Lead Compliant
• Operating Temperature Range: Up to 140 degrees Fahrenheit
• Connection Type: Female NPT Threaded Inlet & Outlet
• Outlet Pressure Adjustment Range: 25-90 PSI
• Max. Inlet Pressure Rating: 250 PSI
• Union Fittings: Double-Union Threaded
• Reducing Ratio: 10:1 Maximum
