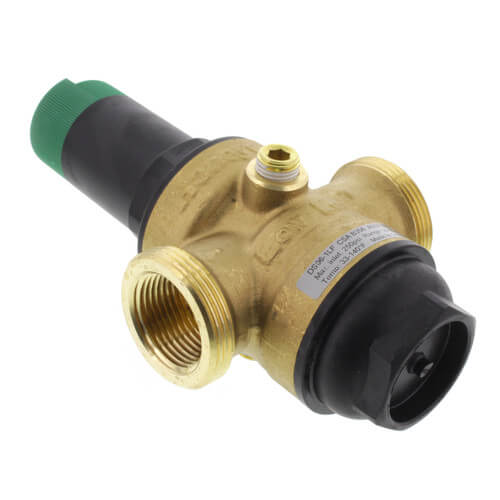

Resideo Braukmann DS06-102-LF DialSet Pressure Regulating Valve Body 1 Inch Lead-Free

Product Description

The Resideo Braukmann DS06-102-LF is a DialSet Pressure Regulating Valve Body ideal for regulating water pressure in diverse settings. Designed to keep a constant outlet pressure regardless of varying inlet pressures, this model is suited for both potable water use and irrigation purposes.

• Easy external adjustment of outlet pressure ranging from 25 to 90 psi.
• Durable brass construction ensures corrosion resistance and longevity.
• Integrated with an NPT connection making installation straightforward.

Product Highlights

This pressure regulating valve doesn't require a gauge to set or monitor the pressure, making setup simpler. It features a noncorroding unitized cartridge that makes any necessary replacement easy and quick. Suitable for various applications including residential, commercial, and agricultural environments.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DS06-102-LF
• Pressure Range: 25 to 90 psi
• Maximum Inlet Pressure: 250 psi

Technical Specifications

• Connection Type: NPT Threaded
• Material: Brass
• Temperature Tolerance: up to 140 degrees Fahrenheit
• Compliance: ASSE 1003, IAPMO, CSA, Low Lead Compliant
