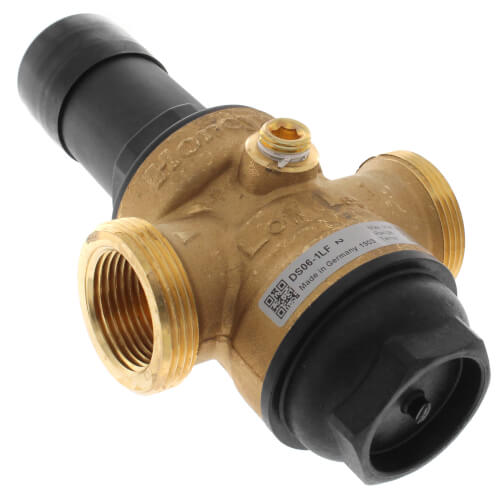

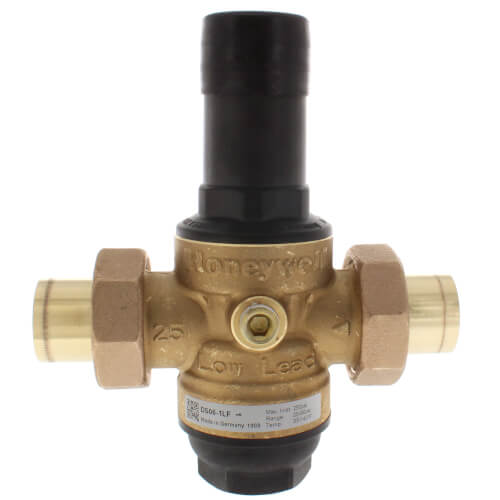

Resideo Braukmann DS06-102-DUS-LF Pressure Reducing Valve 1 Inch 250 PSI Lead-Free

Product Description

The Resideo Braukmann DS06-102-DUS-LF Pressure Reducing Valve is engineered to maintain consistent outlet pressure across a wide range of inlet pressures. Designed for both potable water and irrigation applications, this valve features a unique downstream pressure adjustment dial that allows setting without a gauge. It's constructed from durable materials including bronze, plastic, and stainless steel.

• Lead-free compliance ensures safe water quality.

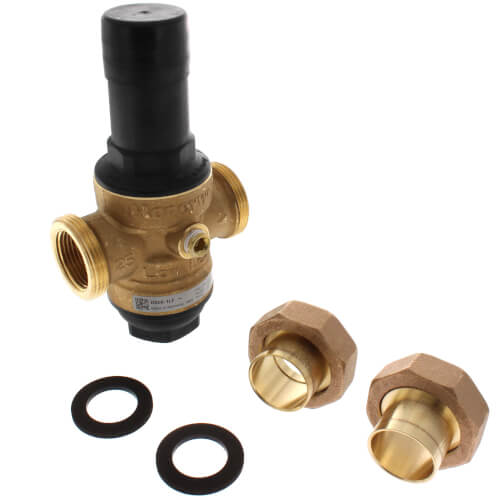

• Easy installation with double union sweat configuration.
• Built-in strainer and unitized cartridge simplify maintenance and replacement.

Product Highlights

Enjoy precise control with an outlet pressure range of 25 to 90 PSI, suitable for various applications. The valve's design facilitates installation in multiple setups thanks to its internal and external threading.

Product Information

Standard Information

• Operating Temperature Range: 140 degrees Fahrenheit maximum
• Connection Type: FNPT x double union sweat

Technical Specifications

• Max. Inlet Pressure: 250 PSI
• Outlet Pressure Adjustment Range: 25 to 90 PSI
• Gauge Tap: 1/4 inch NPT
• Reducing Ratio: Maximum 10:1
• Approvals: ASSE 1003, IAPMO listed, CSA, Low Lead Compliant
