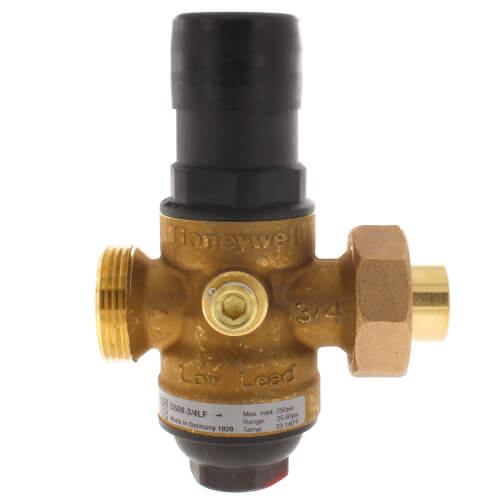

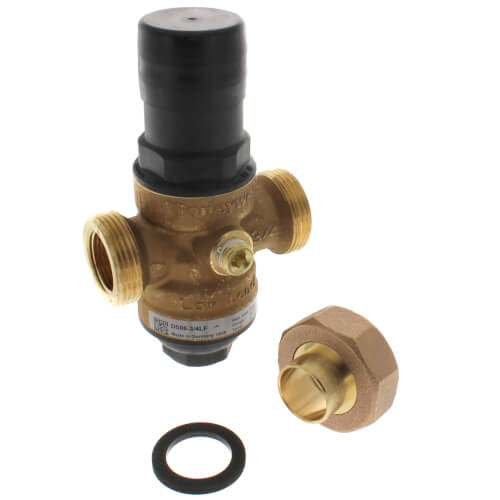

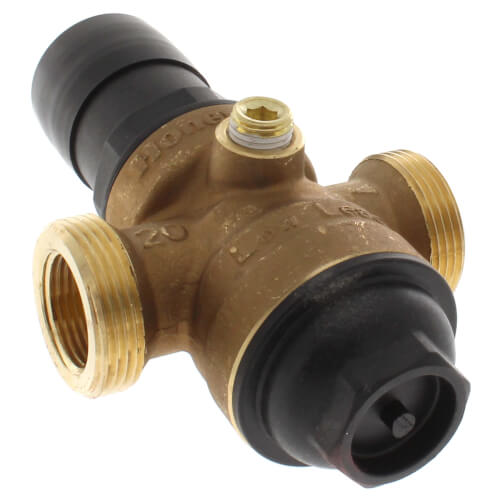

Resideo Braukmann DS06-101-SUS-LF DialSet Pressure Regulating Valve Bronze 3/4 in FNPT x Union Sweat

Product Description

Resideo Braukmann's DS06-101-SUS-LF DialSet Pressure Regulating Valve, crafted from durable bronze, is engineered to maintain constant outlet pressure across diverse inlet supply pressures, ideal for potable water and irrigation applications. It eliminates the need for a pressure gauge during adjustment due to its downstream pressure adjustment dial.

• Calibrated adjustment dial for easy set-up without a gauge.
• Lead-free composition, ensuring safety in potable water applications.
• Features a built-in strainer for easy maintenance and longevity.

Product Highlights

This valve offers an outlet adjustment range of 25 PSI to 90 PSI, catering to residential, commercial, and industrial needs. Its unitized, non-corroding cartridge simplifies replacement and maintenance, supporting robust performance in various settings. Certified by ASSE 1003 and IAPMO, the product meets stringent quality standards.

Technical Specifications

• Height: 8.625 inches
• Length: 6 inches
• Weight: 1.935 pounds
• Connection Type: FNPT x Union Sweat
• Pressure Range: 25 to 90 PSI
• Max Inlet Pressure: 250 PSI
• Operating Temperature Range: Up to 140 degrees Fahrenheit
• Material: Bronze
