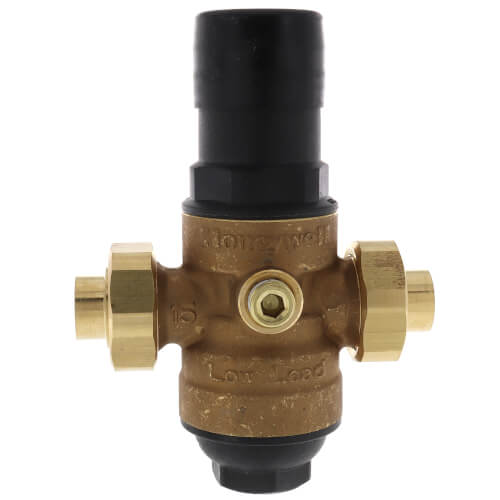

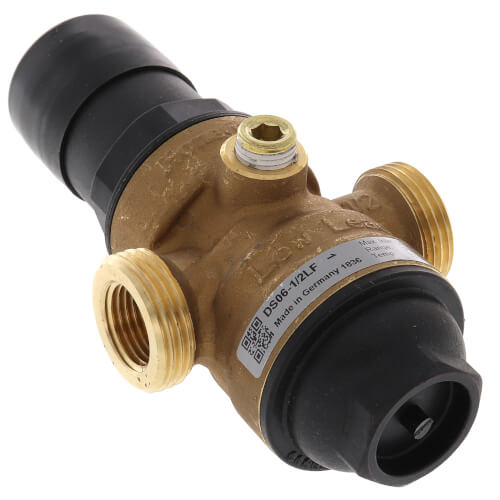

Resideo Braukmann DS06-100-DUS-LF Pressure Reducing Valve 1/2 Inch Double Union Sweat DialSet

Product Description

Resideo Braukmann's DS06-100-DUS-LF Pressure Regulating Valve provides precise flow management for both potable water and irrigation systems. This valve ensures consistent outlet pressure across varying inlet conditions.

• Maintains stable outlet pressure with built-in Dial-Set control.
• Noncorroding, easily replaceable unitized cartridge.
• Lead-free, compliant with ASSE 1003 and IAPMO standards.

Product Highlights

Optimal for residential, industrial, and irrigation applications, the DS06-100-DUS-LF can handle inlet pressures up to 250 PSI and offers adjustment from 25 to 90 PSI. Its versatile configuration options include thread-by-thread and union connections, enhancing installation flexibility.

Product Information

Standard Information

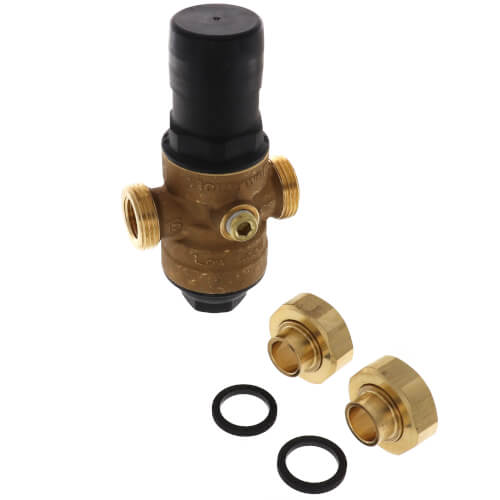

• Connection Options: Threaded, single union, double union configurations.
• Approvals: ASSE, IAPMO, CSA certifications.

Technical Specifications

• Height: 5.83 inches
• Length: 3.23 inches
• Outlet Pressure Adjustment: 25-90 PSI
• Max Inlet Pressure: 250 PSI
• Gauge Tap: 1/4 in. NPT
• Material: Bronze
• Operating Temperature: Up to 140 degrees Fahrenheit
