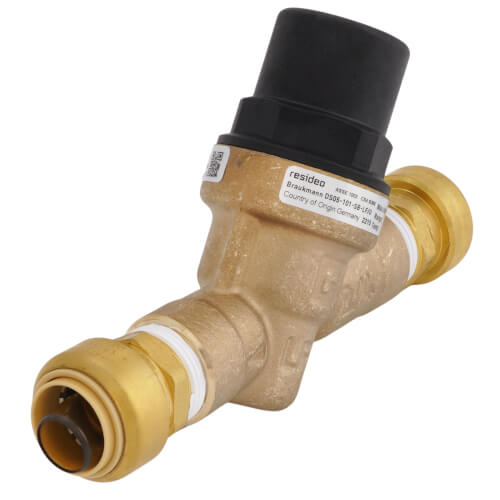

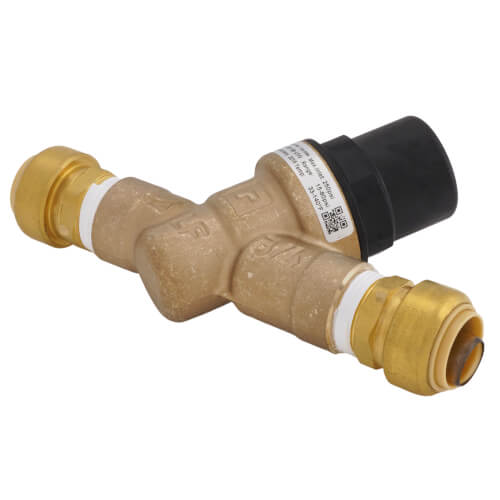

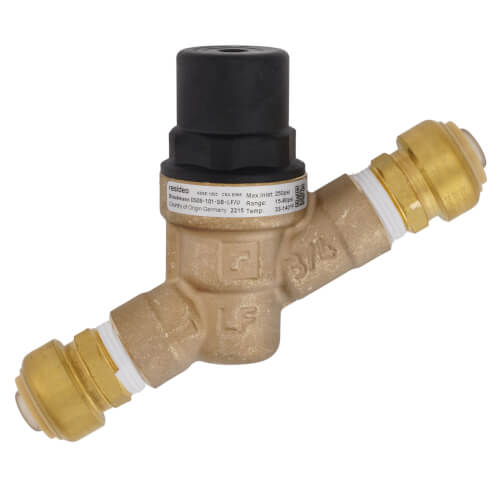

Resideo Braukmann DS05-101-SB-LF 3/4 Push Connect Pressure Regulating Valve for DS05 LF

Product Description

The Resideo Braukmann DS05-101-SB-LF is a pressure regulating valve designed to maintain a consistent outlet pressure across various inlet supply pressures. This product features a straightforward design that supports NPT or pre-assembled Push Connect and PEX F-1960 fittings. The valve is suitable for both potable water and irrigation applications, making it versatile for indoor and outdoor use.

• Easy installation with no serviceable parts.
• Adjustable static pressure from fifteen to eighty PSI.
• Connection options include Push-Fit x Push-Fit for seamless integration.

Product Highlights

The Resideo Braukmann valve is a reliable choice for new construction and renovation projects.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DS05-101-SB-LF

Technical Specifications

• Size: 3/4 inches
• Material: Bronze
• Inlet Type: FNPT
• Outlet Type: FNPT
• Connection Type: Push-Fit x Push-Fit
• Max Inlet Pressure: 250 PSI
• Operating Temperature Range: 140 degrees Fahrenheit max
• Weight: 1.4 lbs
