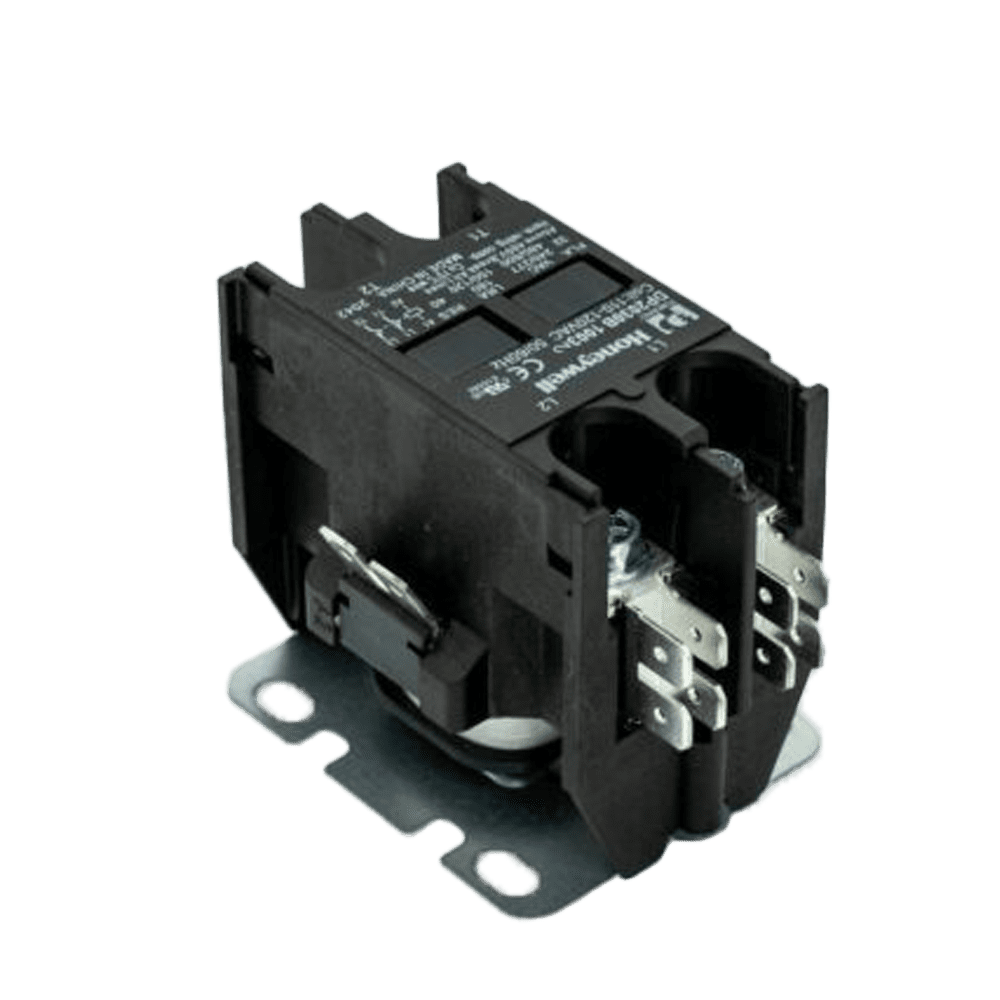

RESIDEO BRAUKMANN DP2030B1002 Definite Purpose Contactor 30 Amps 120 Vac

Product Description

The RESIDEO BRAUKMANN DP2030B1002 is a definite purpose contactor designed for inductive motor applications. This product is built to handle high electrical loads efficiently. It contains silver cadmium oxide contacts that promote durability through demanding cycles. This contactor features a low-profile design that facilitates better wiring management and installation.

• Silver cadmium oxide contacts for extended life
• Low profile design increases wiring room
• Multiple mounting options for easy installation

Product Highlights

This 2-pole contactor is rated for thirty amps at one hundred twenty volts AC, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• MPN: DP2030B1002

Technical Specifications

• Poles: 2
• Contact Ratings (AFL): 30 A @ 240/277 Vac, 480 Vac, 600 Vac
• Contact Ratings (resistive): 40 A @ 240/277 Vac, 480 Vac, 600 Vac
• Coil Ratings Voltage: 120 Vac
• Frequency: 50 Hz; 60 Hz
• Temperature Ratings (F): -4 F to +149 F
• Temperature Ratings (C): -20 C to +65 C
• Electrical Connections: #10-32 combination head screws
