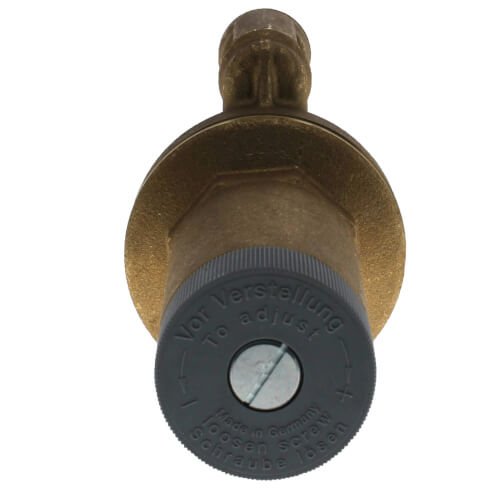

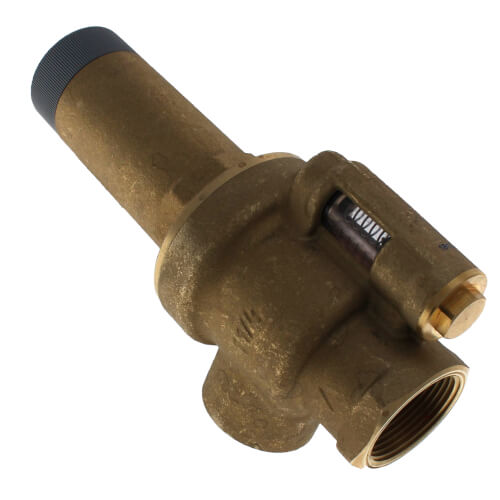

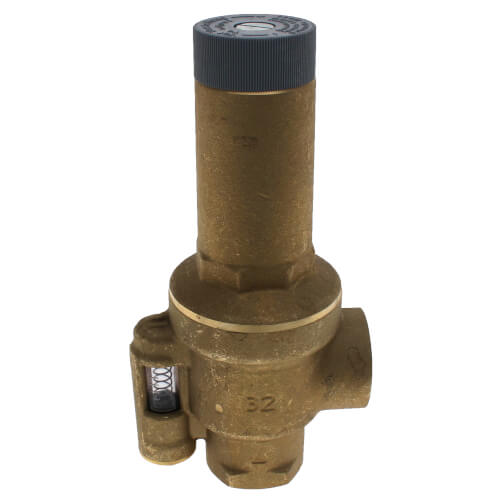

Resideo Braukmann D146M1040 1-1/4 Inch Differential Pressure Regulator + Replacement D146M1040

Product Description

Optimize your heating system with the Resideo Braukmann D146M1040 Differential Pressure Regulator. Designed to stabilize pressure in hydronic heating systems, this device helps manage the head pressure caused by varying demand levels.

• Maintains a consistent pressure differential
• Easy to install with no electrical connection required
• Equipped with a built-in pressure indicator for convenient monitoring

Product Highlights

This differential pressure regulator features ease of installation and a robust design. It is ideal for applications where pressure fluctuations in a hydronic system need to be managed effectively.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: D146M1040

Technical Specifications

• Material: Brass body with stainless steel and engineered thermoplastics
• Size: 1-1/4 inches
• Pressure Range: 0 to 17 PSI
• Max. Inlet Pressure: 85 PSI
• Temperature Range: Up to 230°F
• Connection Type: FNPT
• Dimensions: 6.25 inches high x 3.375 inches wide
