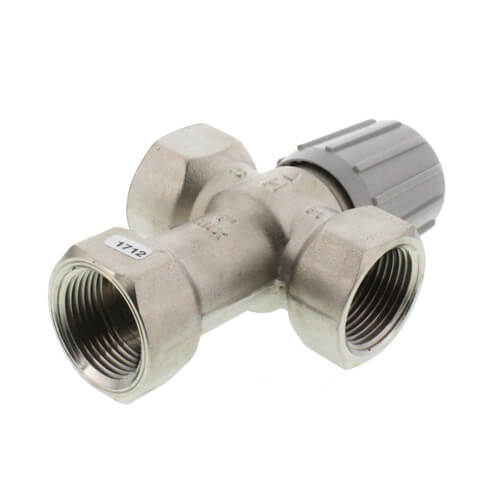

Resideo Braukmann AM102-1LF Anti-Scald Mixing Valve Lead Free

Product Description

Explore the enhanced efficiency of the Resideo Braukmann AM102-1LF, a lead-free 1-inch NPT mixing valve designed for optimal temperature control within heating and domestic water systems. Manufactured by Resideo, a leader in precision engineering, this valve is crafted to meet the strictest safety and performance standards.

• Offers dual functionality for mixing or diverting water with consistent temperature maintenance.
• Constructed with nickel-plated brass and EPDM O-rings for robustness and resilience.
• Includes ASSE 1017 certification, ensuring reliable operation under a range of conditions.

Product Highlights

The AM102-1LF valve supports a temperature range from 70 degrees Fahrenheit to 145 degrees Fahrenheit and operates efficiently with a minimum flow of 0.5 GPM. Its tamper-resistant design and easy maintenance features make it ideal for both commercial and residential installations.

Product Information

Standard Information

• Connection Type: NPT Female
• Size: 1 inch

Technical Specifications

• Operating Temperature Range: 70 F to 145 F
• Flow Capacity: 4.3 Cv
• Maximum Pressure: 150 psi
• Temperature Setting: Proportional control for precise adjustment
• Construction: Nickel-plated brass, EPDM O-rings, Teflon coated internal elements
