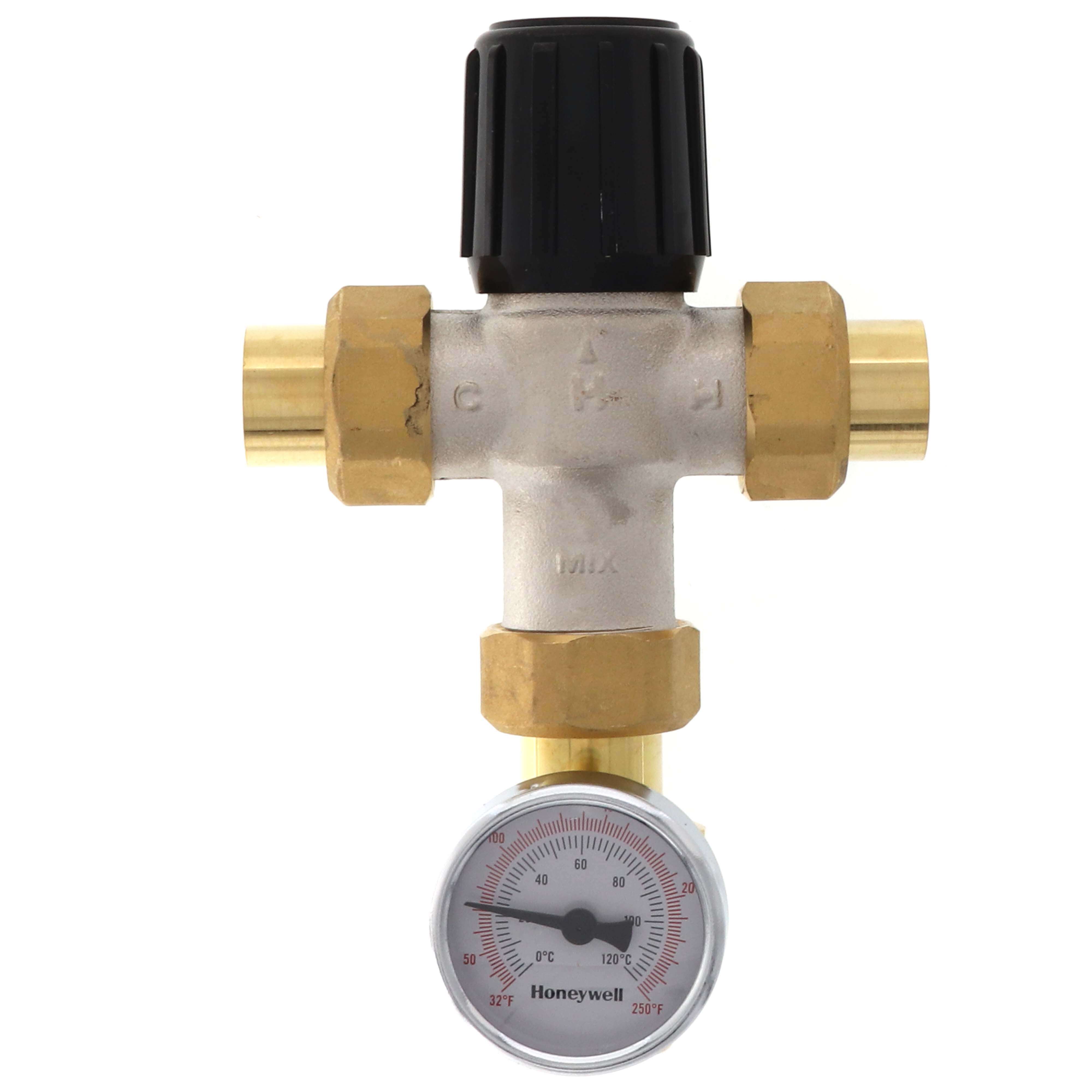

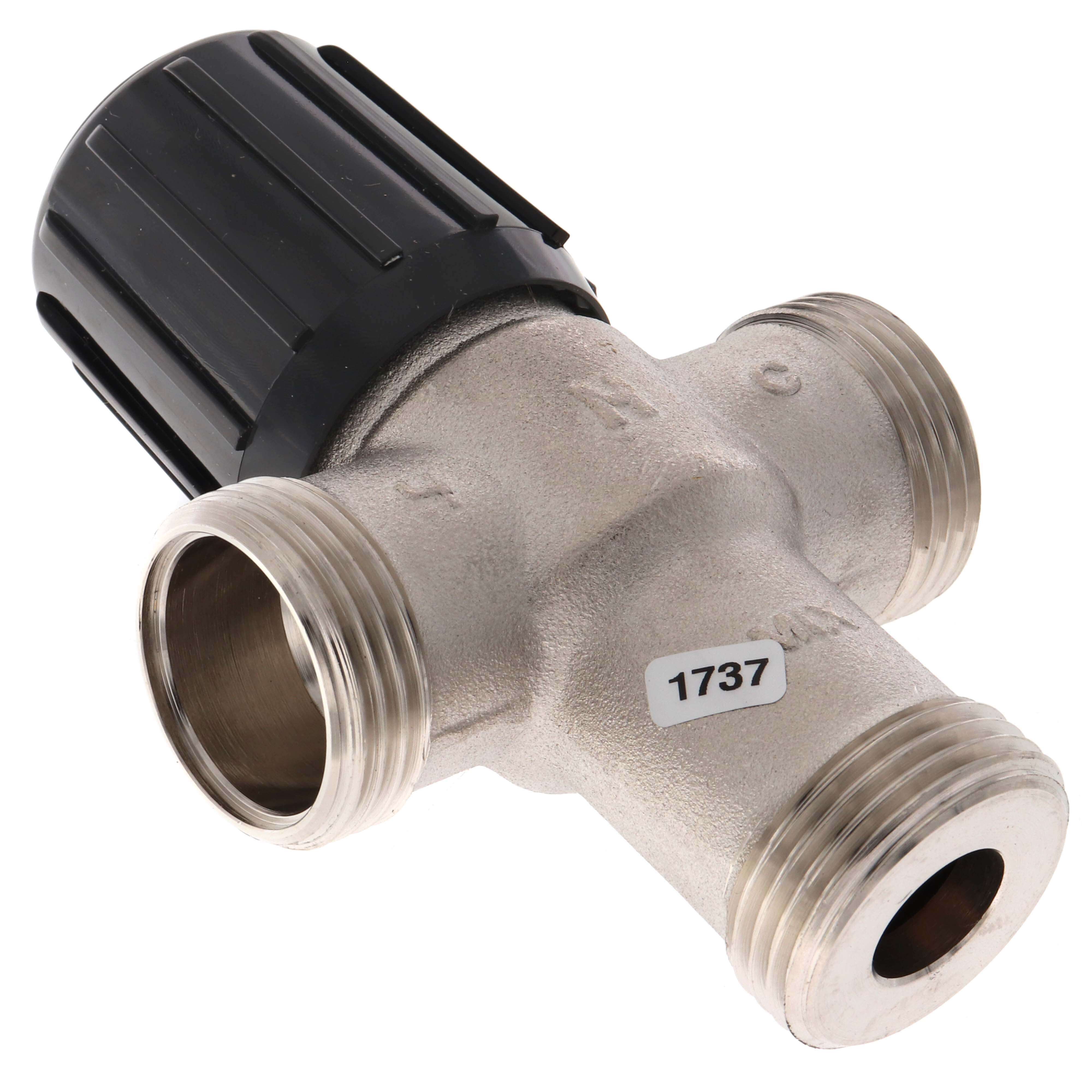

Resideo Braukmann AM101R-USTG-1 3/4 Sweat Union Mixing Valve w/ Temperature Gauge (Heating Only)

Product Description

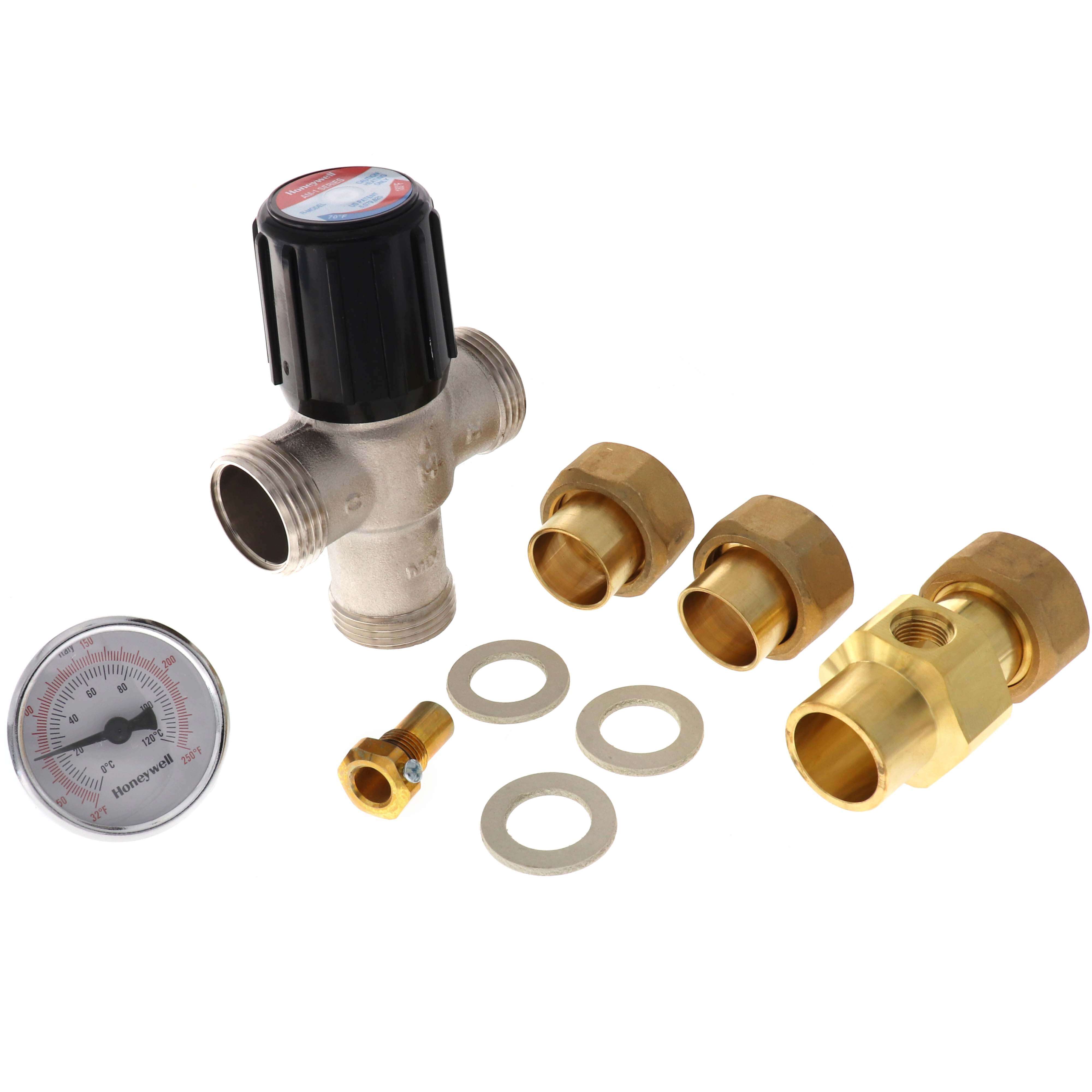

The Resideo Braukmann AM101R-USTG-1 is a three-quarter inch sweat union mixing valve with a built-in temperature gauge. This valve helps maintain safe water temperatures in heating applications. It enables quick installation and simplifies system checks and troubleshooting.

• Includes removable temperature gauge for easy monitoring.
• Compatible with both Celsius and Fahrenheit readings.
• Designed for minimal flow requirements, ensuring reliable performance.

Product Highlights

This valve offers both mixing and diverting functions. It provides consistent temperature control while preventing scalding and controlling bacteria growth in domestic water systems.

Product Information

Standard Information

• Connection Type: Sweat Union
• Pipe Size: Three-Quarter Inch

Technical Specifications

• Operating Temperature Range: Seventy to One Hundred Eighty Degrees Fahrenheit
• Flow Capacity (Cv): Three Point Nine Cv
• Maximum Pressure: One Hundred Fifty Psi
• Maximum Temperature: Two Hundred Twelve Degrees Fahrenheit
• Material: Nickel-plated brass and EPDM O-rings
• Features: Tamper-resistant design and easy maintenance with Teflon coating
