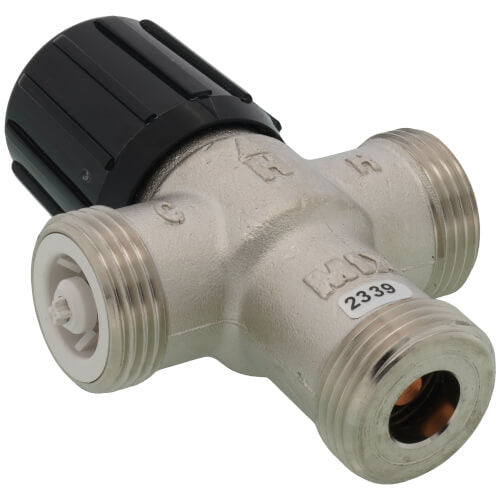

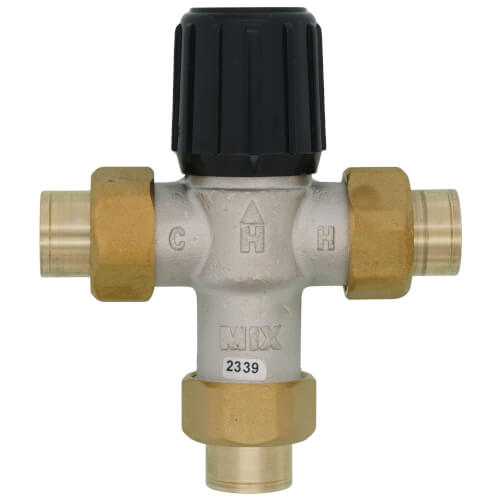

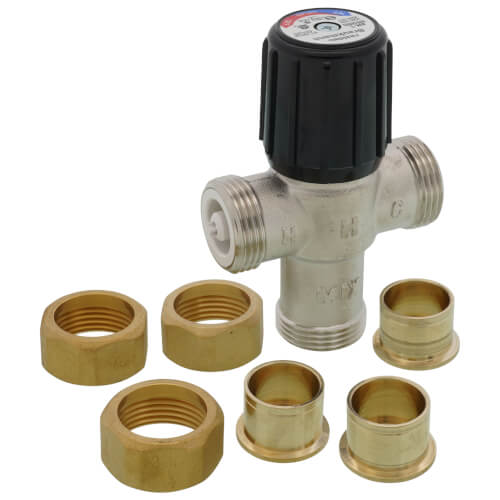

Resideo Braukmann AM101C1070-US-1LF 3/4 Inch Union Sweat 1070 Mixing Valve Lead Free

Product Description

The Resideo Braukmann AM101C1070-US-1LF 3/4 Inch Union Sweat 1070 Mixing Valve is engineered for precise regulation and safety in water temperature control. Its lead-free construction ensures compliance with health standards while offering a reliable solution for both domestic water and heating applications.

• Scalding protection and bacteria growth control in domestic water systems.
• Proportional valve design allows simultaneous control of hot and cold water to maintain constant temperature.
• Features nickel-plated brass construction and a high-performance thermoplastic shuttle.

Product Highlights

Designed for user-friendly operation, the valve includes features like a temperature limit setting, easy maintenance, and a tamper-resistant design. It effectively limits the hot water temperature, ensuring safety and extending usable hot water availability.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AM101C1070-US-1LF

Technical Specifications

• Size: 3/4 Inch
• Type: Union Sweat
• Lead Free: Yes
• Max Pressure: 150 PSI
• Max Temperature: 212°F
• Connection Type: Copper x Copper
• Flow Capacity (Cv): 1.8
• Standards Met: ASSE 1070, ASSE 1017
