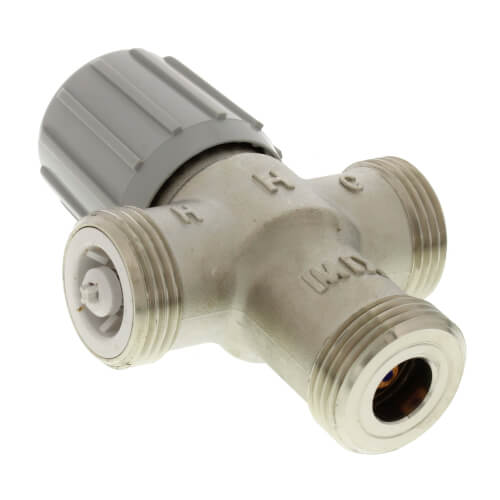

Resideo Braukmann AM101C-US1LF Anti-Scald Mixing Valve

Product Description

The Resideo Braukmann AM101C-US1LF is an anti-scald mixing valve that regulates and maintains the temperature of hot water. This valve is essential for preventing scalding and controlling bacteria growth in residential water systems.

• Maintains a consistent water temperature despite changes.
• Activates flow reduction if cold water supply is interrupted.
• Constructed with nickel-plated brass and EPDM O-rings for durability.

Product Highlights

This mixing valve is suitable for point-of-source applications and heating systems, providing essential safety features while ensuring comfort.

Product Information

Standard Information

• Type: Mixing Valve
• Size: Three-quarters of an inch

Technical Specifications

• Flow Capacity (Cv): 3.9
• Temperature Range (F): Seventy degrees Fahrenheit to one hundred forty-five degrees Fahrenheit
• Connection Type: Copper x Copper
• Connection Method: Sweat
• Warranty: One Year
• Material: Nickel Plated Brass
• Application: Point of Source, Heating
• Max Pressure (PSI): One hundred fifty
• Standards Met: ASSE 1016, ASSE 1017
