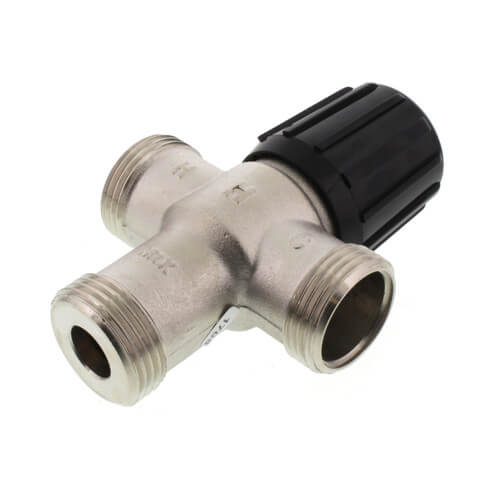

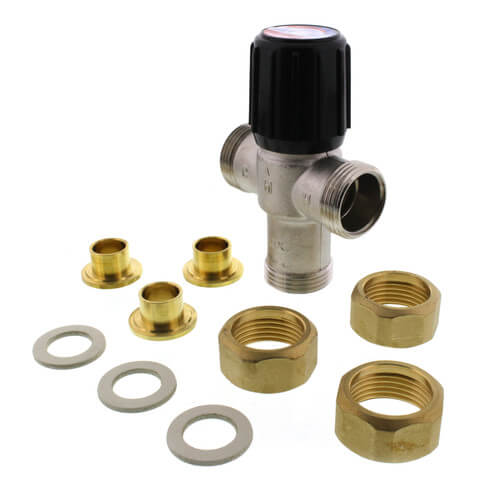

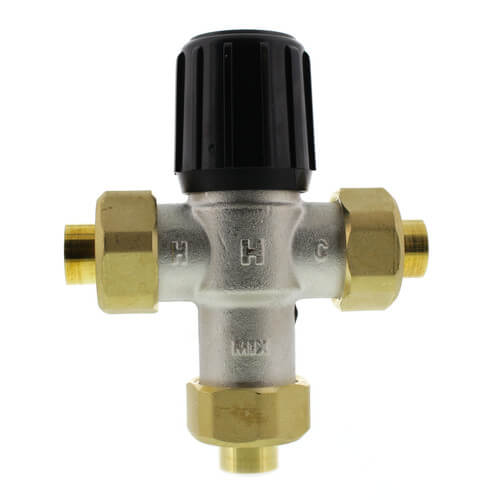

Resideo Braukmann AM100R-US-1 Thermostatic Mixing Valve 1/2 inch Union Sweat

Product Description

Resideo Braukmann's AM100R-US-1 Thermostatic Mixing Valve ensures consistent water temperature control in various applications. Ideal for both residential and commercial settings, this valve helps prevent scalding and manages energy efficiently by maintaining pre-set water temperatures.

• Utilizes Union Sweat connections for reliable and leak-proof performance.
• Temperature control range from 70 degrees to 180 degrees Fahrenheit.
• Durable nickel-plated brass construction with EPDM O-rings.

Product Highlights

This valve supports a minimum flow of 0.5 gallons per minute, making it suitable for low-demand situations. The proportional valve feature allows for simultaneous control of hot and cold water, enhancing user safety and system efficiency.

Product Information

Standard Information

• Brand Name: Resideo Braukmann
• Type: Mixing Valve

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Size: 1/2 inch
• Pressure Setting: 70-180 Degrees
• Connection Type: Union Sweat
• Material: Nickel Plated Brass
• Max Pressure: 150 PSI
• Temperature Range: 70°F - 180°F
• Flow Capacity (Cv): 3.9
