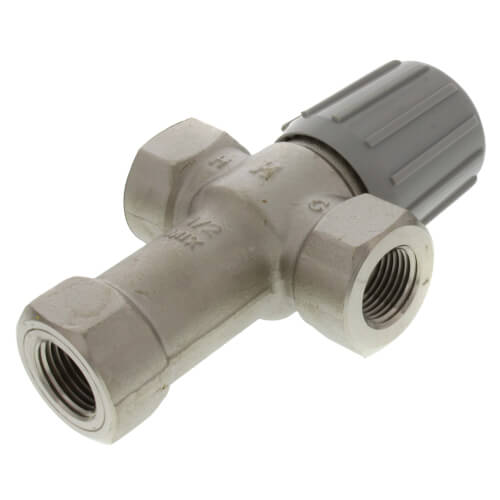

Resideo Braukmann AM100C-1LF 1/2 Inch NPT Lead-Free Mixing Valve 70-120F

Product Description

The Resideo Braukmann AM100C-1LF mixing valve precisely maintains and limits hot water temperature to user-set levels, ensuring safety and efficiency in domestic and heating applications. This 1/2 inch NPT valve promotes increased hot water availability while preventing scalding and controlling bacterial growth.

• Utilizes a high-performance thermoplastic shuttle for robust temperature management.
• Equipped with dual-function capabilities, supporting both mixing and diverting operations.
• Features a temperature range of 70 to 120 degrees Fahrenheit with a maximum pressure of 150 psi.

Product Highlights

Built for durability, this valve is constructed from nickel-plated brass with EPDM O-rings and a Tefloninchu00AE coated interior to resist mineral build-up, extending its lifespan.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AM100C-1LF

Technical Specifications

• Connection Type: FNPT x FNPT
• Material: Nickel Plated Brass
• Application: Point of Source, Heating
• Standards Met: ASSE 1017
• Max Temperature: 212 F
• Flow Capacity: 3.2 Cv
