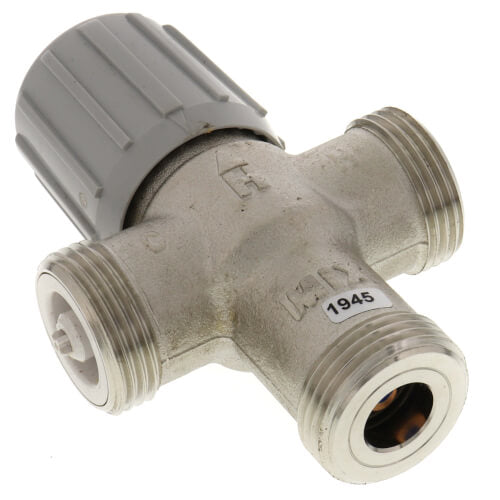

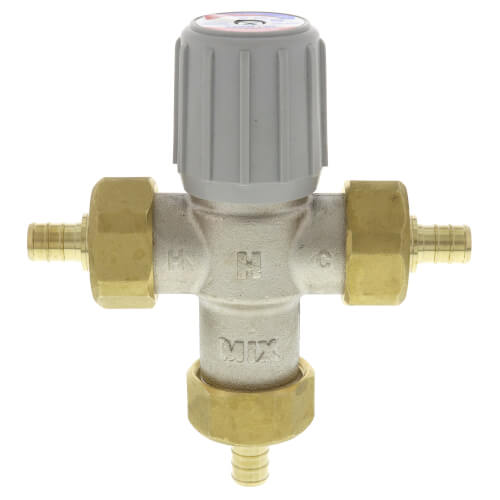

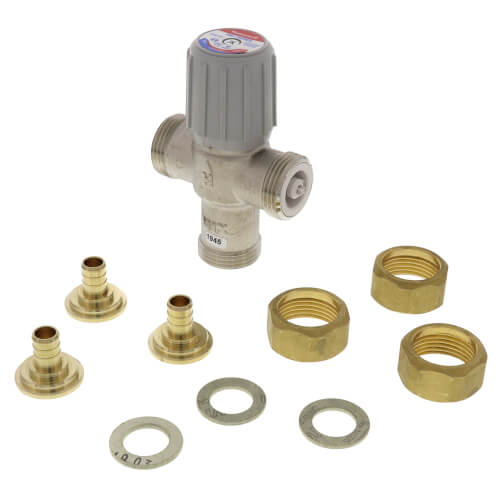

Resideo Braukmann AM100-UPEX-1LF Mixing Valve 70-145F

Product Description

The Resideo Braukmann AM100-UPEX-1LF mixing valve adjusts, maintains, and limits hot water temperature settings. It ensures user comfort and equipment protection. This valve increases the amount of safe, usable hot water and offers anti-scald and anti-chill protection.

• Dual purpose: mixing or diverting
• Reliable performance at minimum flow
• Nickel-plated brass construction

Product Highlights

Adjust, maintain, and limit hot water temperature effectively with the AM100-UPEX-1LF. It is ideal for domestic water use, nursing homes, public facilities, and more.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Category: Mixing Valves

Technical Specifications

• MPN: AM100-UPEX-1LF
• Size: 1/2 inch
• Type: Mixing Valve
• Lead Free: Yes
• Application: Point of Source
• Max Temp (F): 145
• Min Temp (F): 70
• Standards Met: ASSE 1017
• Connection Type: PEX Crimp x PEX Crimp
• Flow Capacity (Cv): 3.9
• Temperature Range (F): 70°F - 145°F
• Shipping Depth: 6
• Shipping Width: 3.75
• Shipping Height: 3.5
• Weight: 2.1
