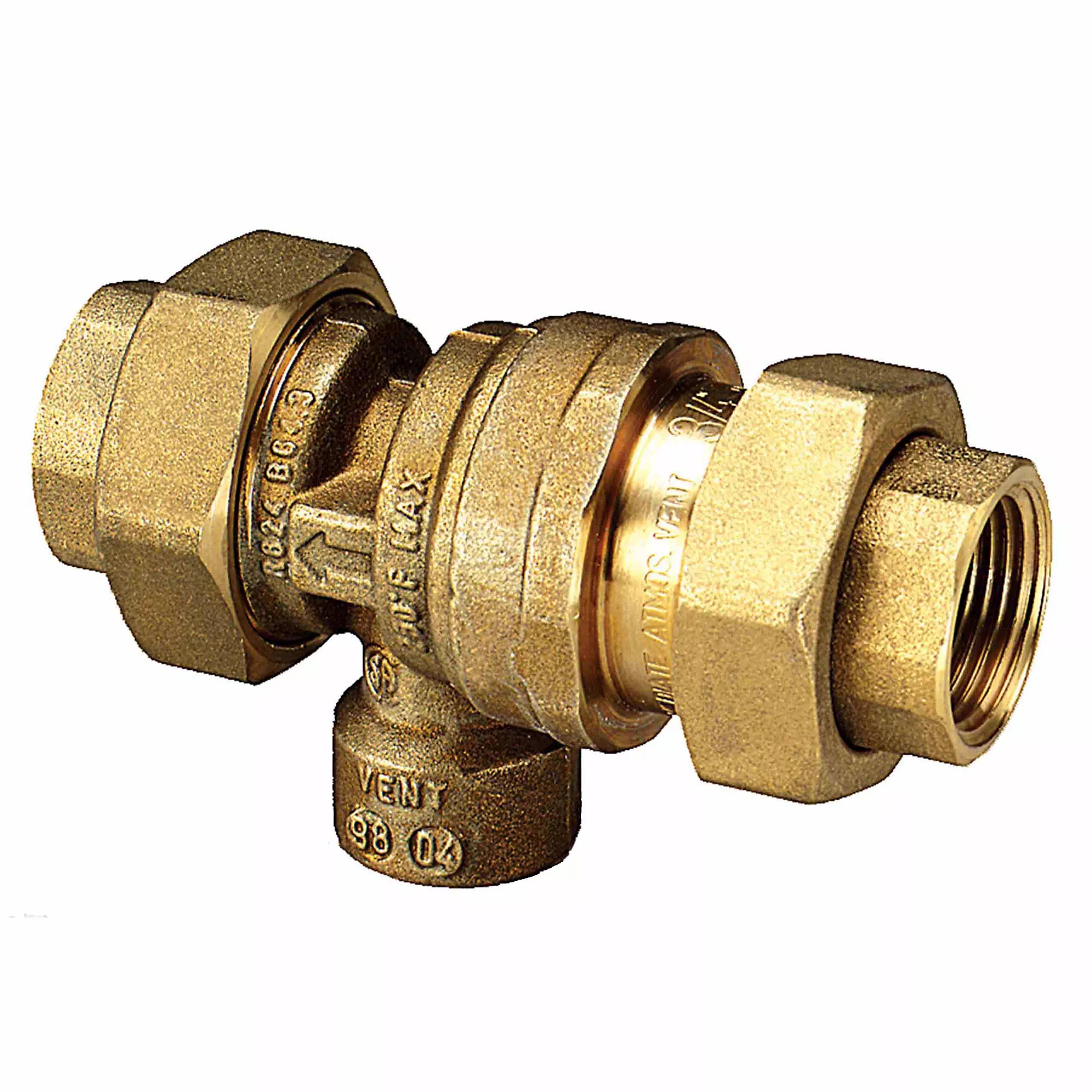

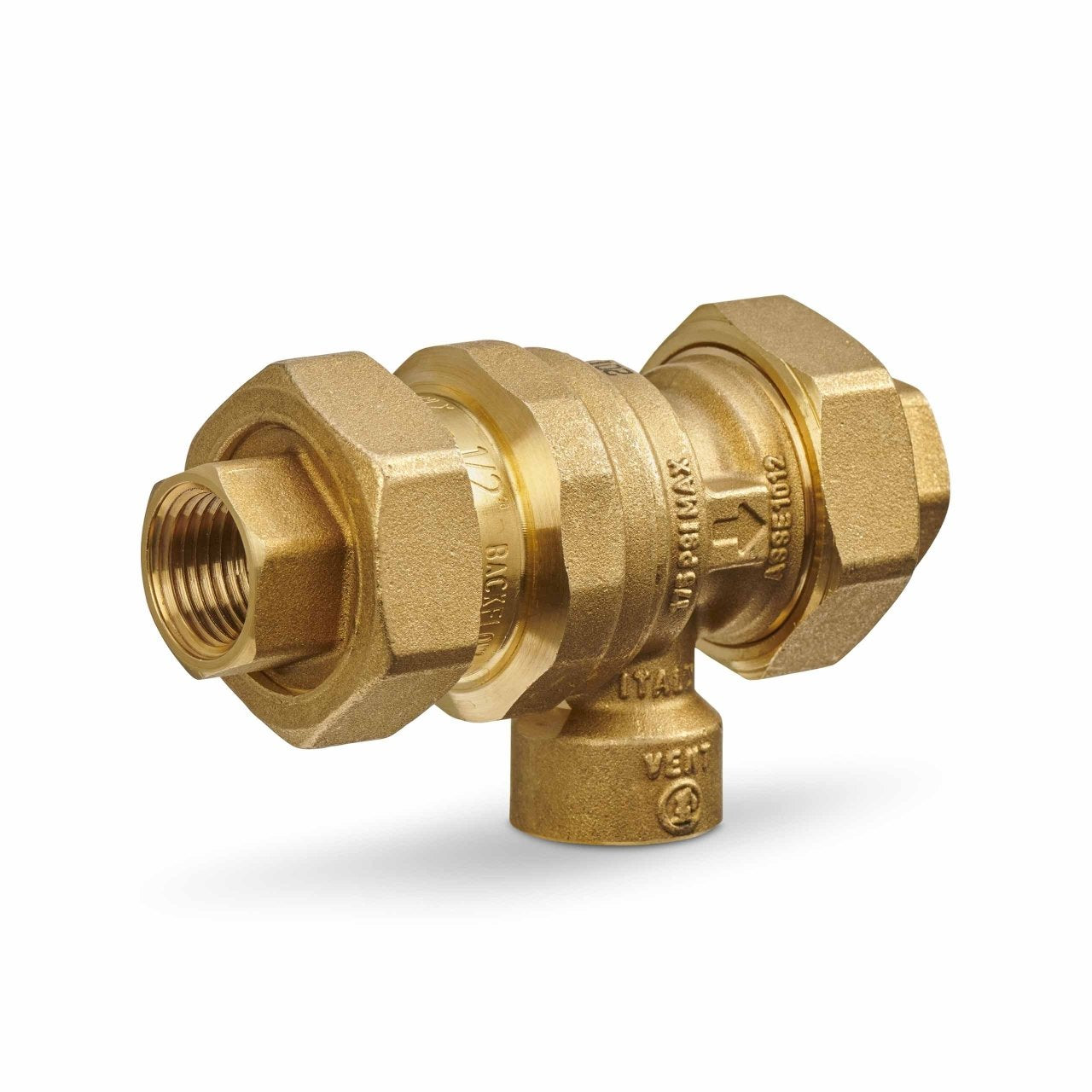

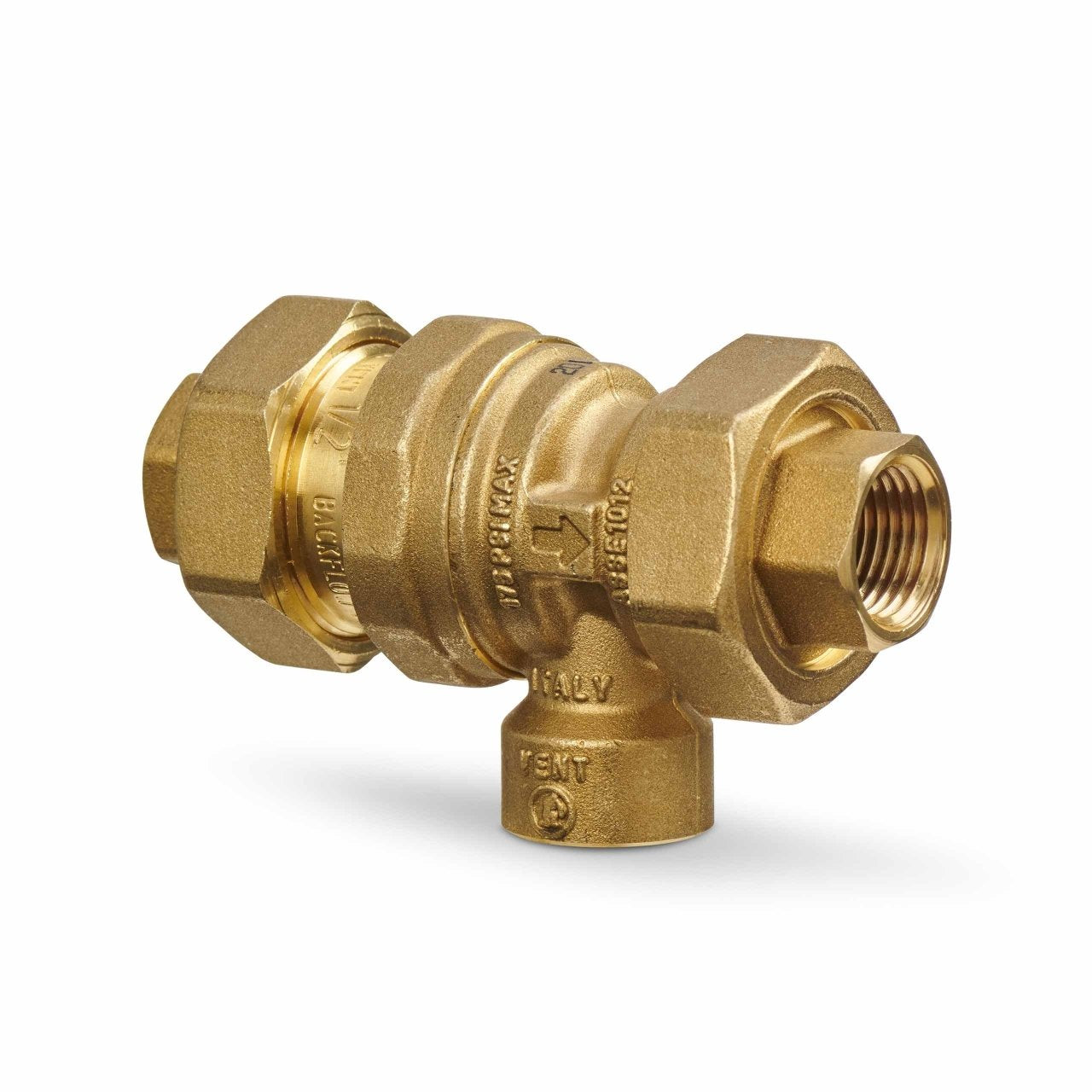

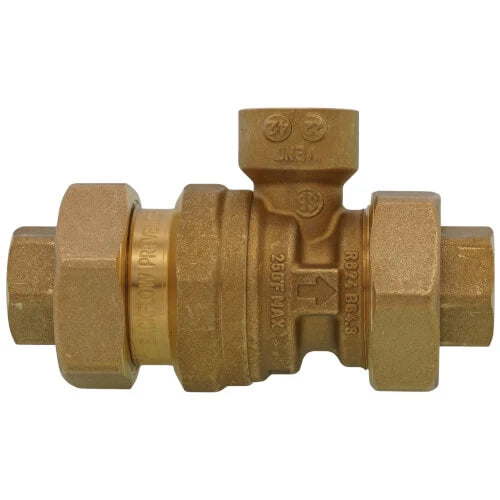

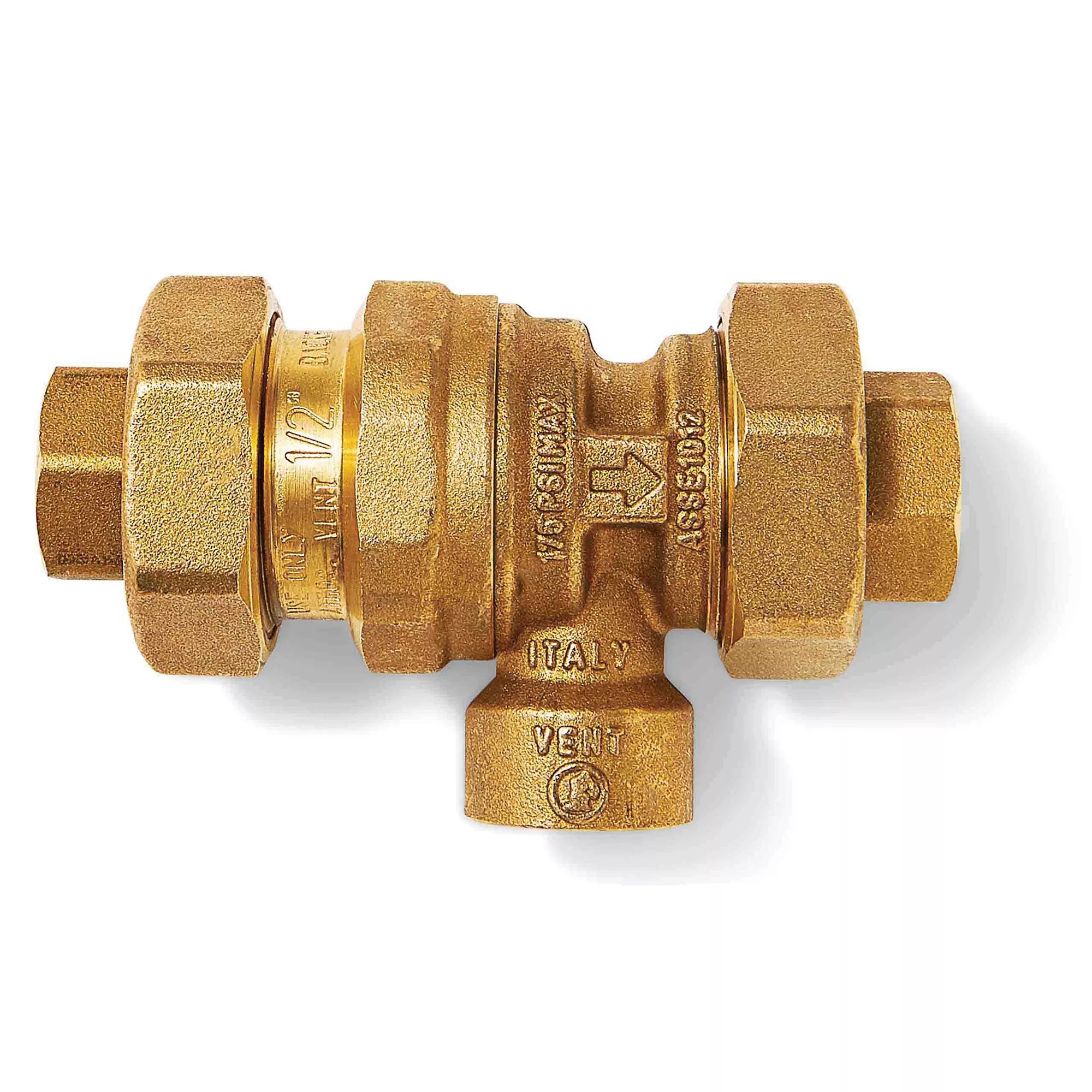

Resideo BP900/U backflow preventer with atmospheric vent 1/2 inches NPT

Product Description

The Resideo BP900/U Backflow Preventer is designed to ensure continuous pressure applications on small supply lines. It uses an intermediate vacuum breaker to protect against backflow and back siphonage of contaminated water into potable water supplies. Suitable for hot or cold water service, it is ideal for applications like boiler feed lines and lab equipment.

• Ensures continuous pressure applications on small supply lines.
• Protects against backflow and back siphonage of contaminated water into potable water supplies.
• Suitable for hot or cold water service, ideal for boiler feed lines and lab equipment.

Product Highlights

Designed for continuous pressure applications, protecting potable water in boiler feed lines and lab equipment.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: BP900/U
• Country of Origin: Italy

Technical Specifications

• Type: Miscellaneous Parts
• Color: Brass
• Application: Backflow and Back Siphonage Protection
• For Use With: VF06
• Compatible With: Potable Water
• Nominal Size: 1/2 in
• Maximum Temperature: 250°F
• Maximum Pressure: 175 PSI
• Material: Bronze
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Factory Pressure Setting: 12 PSI
• Maximum Media Temperature: 212°F (100°C)
• End Style: NPT
