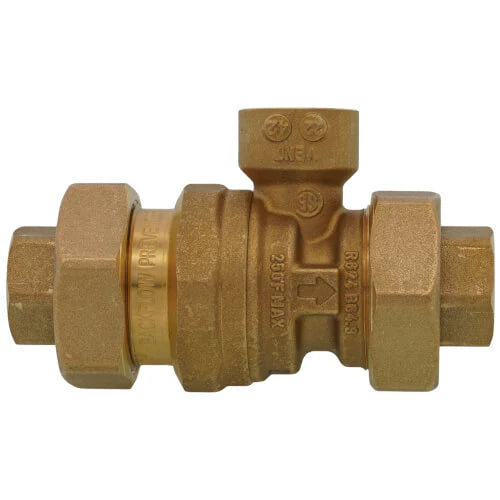

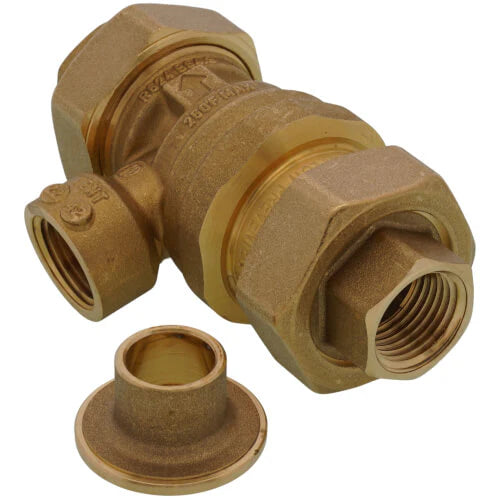

Resideo BP900 1/2 NPT Dual Check Backflow Preventer

Product Description

The Resideo BP900 backflow preventer is suitable for small supply lines in constant pressure systems. Its design incorporates an intermediate vacuum breaker to prevent backflow and siphonage of contaminated water into clean water sources. This product finds practical application in boiler feed lines, livestock drinking fountains, trailer park water connections, and laboratory setups.

• Effective in preventing backflow and back siphonage
• Rated for a maximum ambient temperature of two hundred fifty degrees Fahrenheit
• Supports safe operating pressure up to one hundred seventy-five PSI

Product Highlights

Ideal for various plumbing applications, the BP900 ensures safety and reliability in water systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: BP900

Technical Specifications

• Connection Type: FNPT x FNPT
• Maximum Ambient Temperature: 250° F
• Maximum Safe Operating Pressure: 175 PSI
• Size: 1/2 inches
• Dimensions: 4.65 inches (Length) x 2.95 inches (Width) x 2.15 inches (Height)
• Weight: 1.38 pounds
• Application: Plumbing
