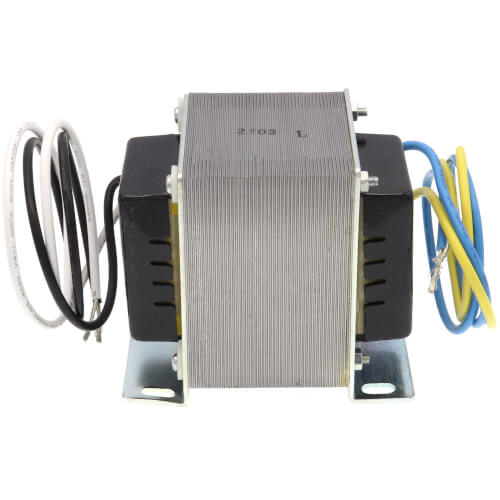

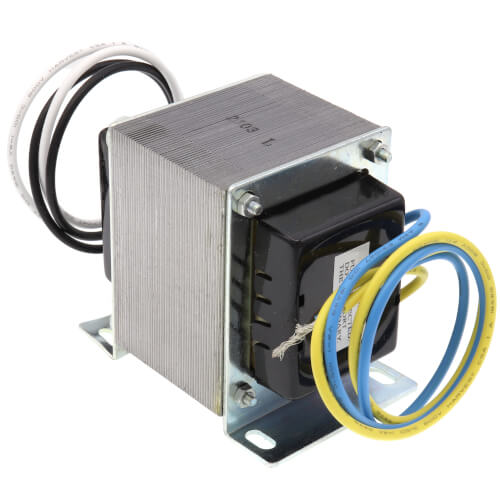

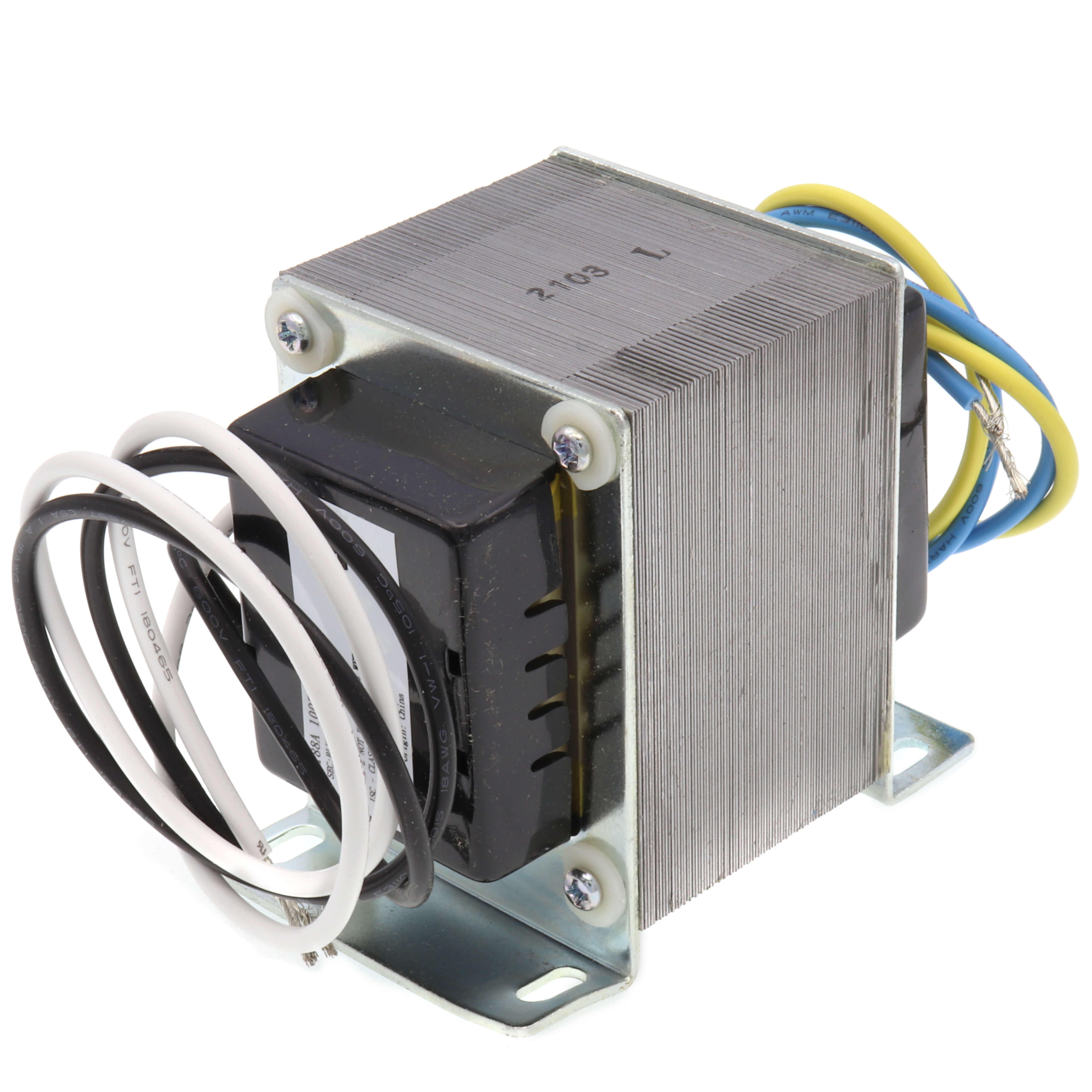

Resideo AT88A1005 Foot Mounted 120 Vac Transformer 75 VA

Product Description

The Resideo AT88A1005 is a robust foot-mounted transformer designed to power 24 Vac air conditioning circuits and other similar applications. This model is well-suited for providing reliable performance while adhering to NEC Class 2 not wet, Class 3 wet, and U.L. 1585 requirements.

• Includes overload protection and color-coded leadwires for easy installation.
• Features a compact size of approximately 2 15/16 inches high, 2 3/16 inches wide, and 3 5/16 inches deep.
• Operates effectively within a temperature range of -20 F to +105 F.

Product Highlights

Equipped with a 75 VA output and internally fused secondary for enhanced overload protection, the Resideo AT88A1005 ensures safety and efficiency. Its sturdy NEMA Type E construction allows secure mounting and durable operation.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AT88A1005
• Category: Transformers
• Mounting Type: Foot Mounted

Technical Specifications

• Primary Voltage: 120 Vac
• Secondary Voltage: 26.5 V.O.C.
• Frequencies Supported: 60 Hz, 50 Hz
• Electrical Output: 24 Vac at 75 VA
• Dimensions: 2.94 inches high x 2.19 inches wide x 3.31 inches deep
• Temperature Range: -20 F to +105 F
