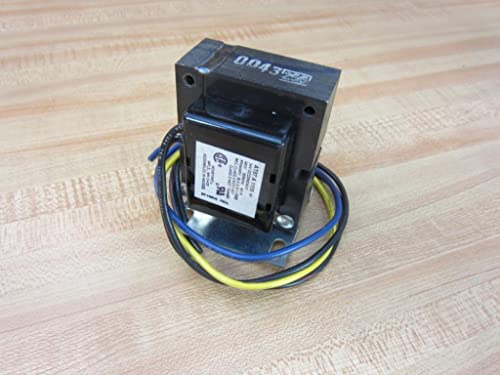

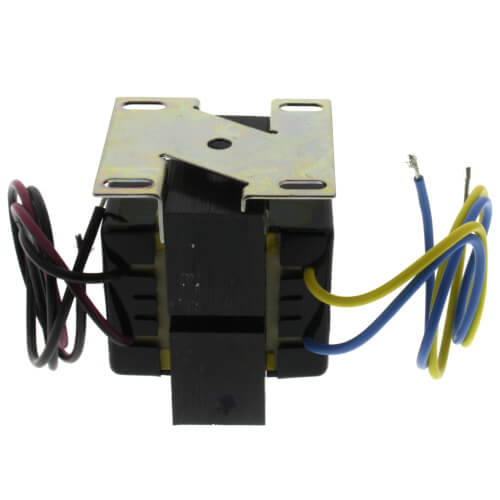

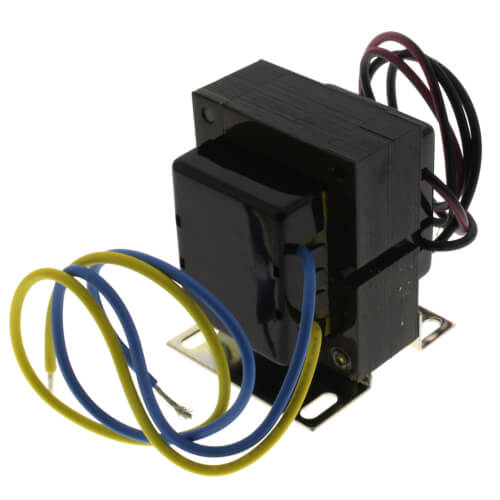

Resideo AT87A1155 Foot Mounted 480 Vac Transformer with Energy Limiting Overload Protection

Product Description

The Resideo AT87A1155 transformer is engineered for reliable performance in power distribution within air conditioning circuits and other applications. This product is specifically designed to operate at 480 Vac and includes a set of 12-inch lead wires for simpler connections.

• Supports a broad array of HVAC systems and meets multiple safety standards.
• Robust foot-mounted design enhances stability and installation ease.
• Includes overload protection feature to ensure safe operation under high power loads.

Product Highlights

This Resideo transformer is noteworthy for its NEMA Type E classification and compliance with NEC Class 2 and Class 3 wet conditions. It's fabricated to provide assured performance and durability under varying environmental conditions.

Product Information

Standard Information

• Brand: Resideo
• Model Number: AT87A1155
• Color: Standard industry coloring for easy integration
• Safety Certifications: UL 1585, NEC Class ratings

Technical Specifications

• Primary Voltage: 480 Vac
• Secondary Voltage: 26.5 V.O.C
• Frequency: 50 Hz / 60 Hz dual rating
• Output: 24 Vac at 48 VA
• Installation: Foot mounted with 12-inch lead wires
• Temperature Operating Range: -20 F to +105 F
