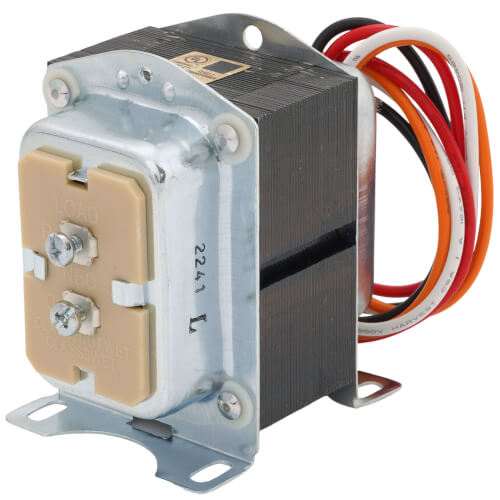

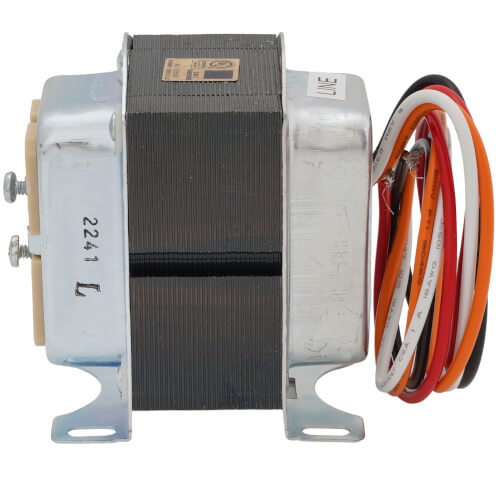

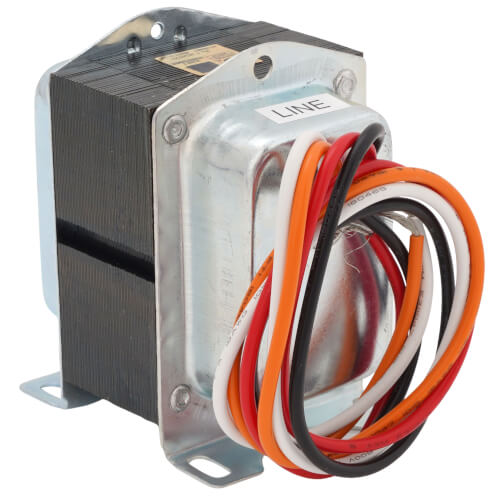

Resideo AT87A1106 TRNSFMR 120/208/240-24V 48VA

Product Description

The Resideo AT87A1106 transformer is a solution for providing stable, low-voltage power in various applications. It transforms voltages from 120/208/240 volts AC to 24 volts AC with a power output of 48 VA. This transformer is suitable for powering a range of equipment that requires dependable low-voltage power.

• Transforms voltages from 120/208/240 volts AC to 24 volts AC.
• Delivers 48 VA of power.
• Foot or plate mounting options with built-in protection.

Product Highlights

This transformer ensures power reliability for critical applications such as air conditioning circuits and security systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT87A1106

Technical Specifications

• Primary Voltage: 120/208/240 volts
• Secondary Voltage: 24 volts
• Power Output: 48 VA
• Frequency: 50/60 Hz
• Mounting Type: Foot or plate
• NEMA Rating: Type E
• Lead Wires: 13 lead wires
• Dimensions: 2-15/16 inches deep x 2-7/32 inches wide
• Temperature Range: -20°F to +105°F
